Good Quality Motor Vibrating Feeder Price

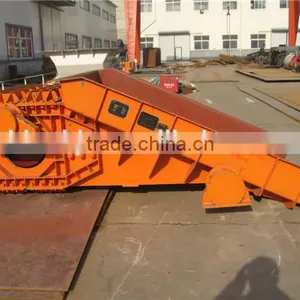

Good Quality Motor Vibrating Feeder Price thumbnail-1
Good Quality Motor Vibrating Feeder Price thumbnail-2

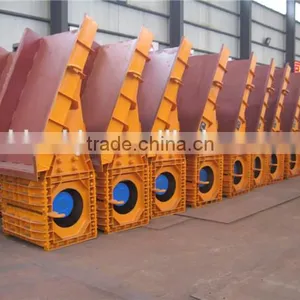

Good Quality Motor Vibrating Feeder Price thumbnail-3
Good Quality Motor Vibrating Feeder Price photo-1

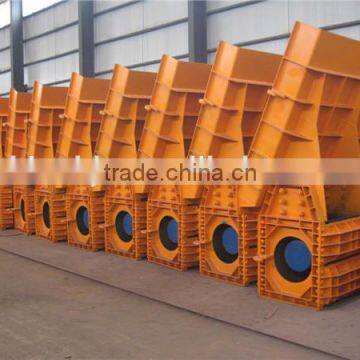

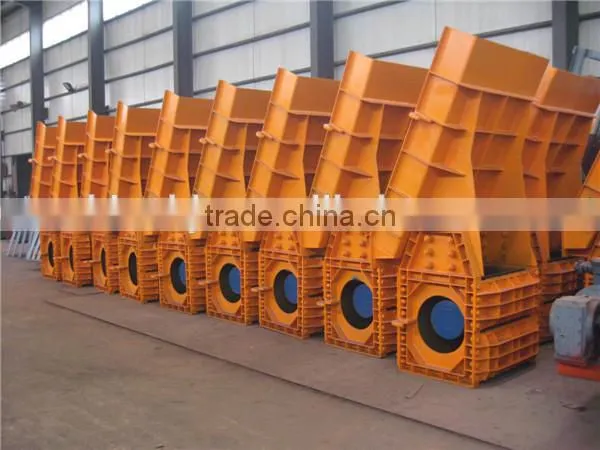

Good Quality Motor Vibrating Feeder Price photo-2

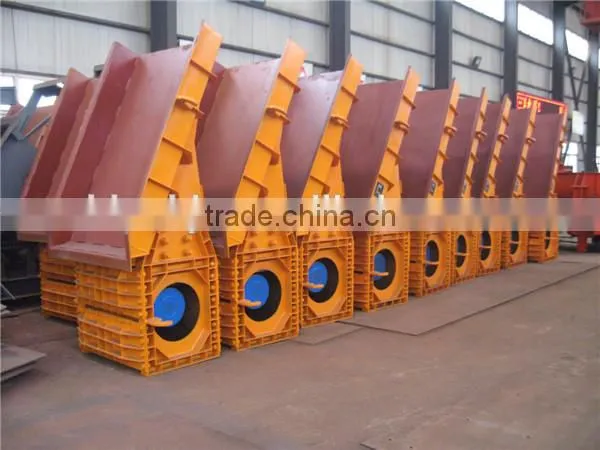

Good Quality Motor Vibrating Feeder Price photo-3
US$ 470 - 79,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
coal /metallurgy/ chemical /ore / electric power /construction
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Hebi Coal Chemical Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application coal /metallurgy/ chemical /ore / electric power /construction
Power Type Electric
Capacity(t/h) 15-1800t/h
Place of Origin Henan, China
Brand Name YONGCHI
Model Number XZG series
Power(W) 0.2-11
Dimension(L*W*H) Choose according to your requirements
Weight 4.3-11.8 Tons
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
PRODUCT EXHIBITION
Good quality motor vibrating feeder price

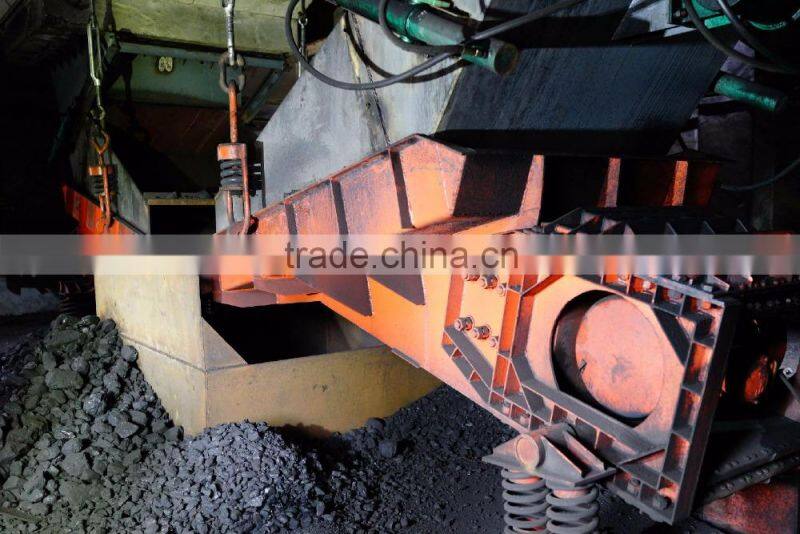

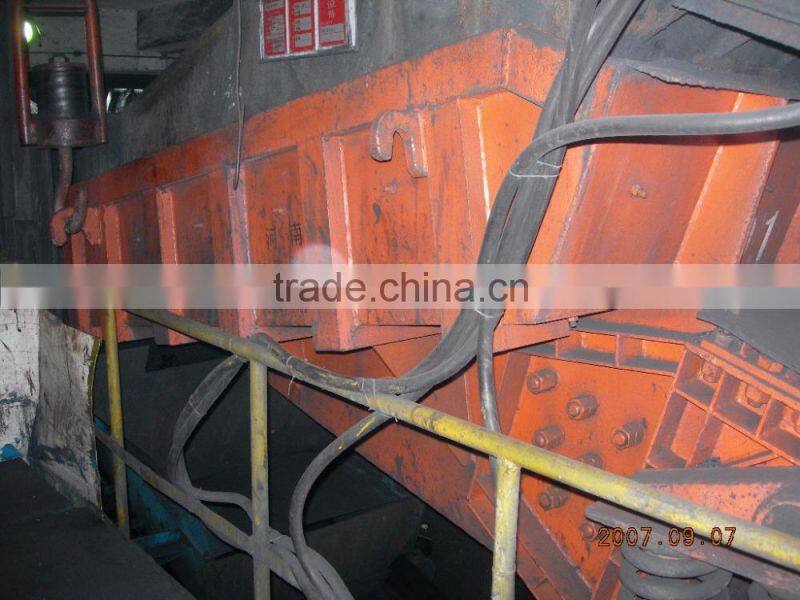

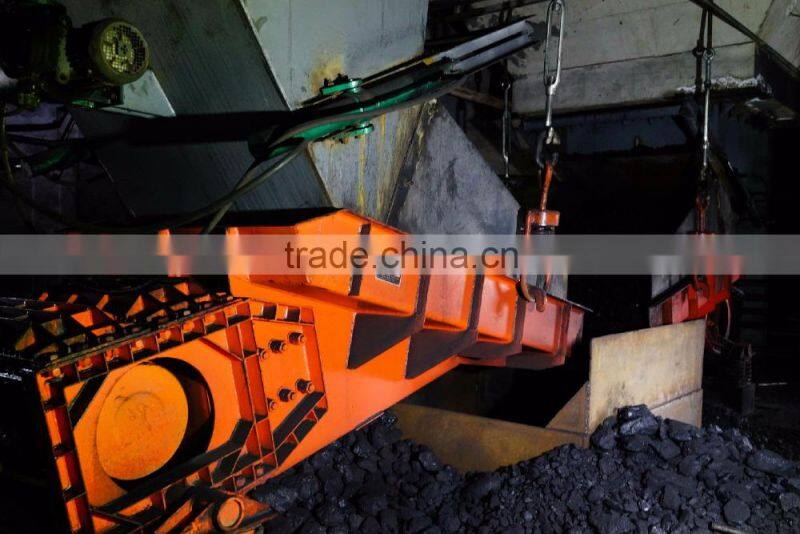

Vibration  coal  feeder

Good quality motor vibrating feeder priceGood quality motor vibrating feeder priceGood quality motor vibrating feeder price








PRODUCT INFORMATION
Good quality motor vibrating feeder price
Equipment introduction
XZG Type Vibration Feeder is a new type of feeding equipment with advanced technology in the 1990s. This machine is jointly developed by our enterprise and the National Beijing Nonferrous Metallurgy Research Institute and Northeast University of Technology, and it is awarded “National New Product”. There was an industrial commissioning in DEXING Jiangxi Copper Mine in 1992. In December that year, it passed the technical appraisal of Beijing Nonferrous Metals Company. In 1994, it was awarded “China New Product” certificate issued by Five Ministries of China.
Adaptive range
XZG type vibration feeders have formed two series of coal, metallurgy. The products are well sold in the coal mine, coal washery, nonferrous metallurgical mines, power plants, granaries, dock, loading station, building materials and other industries.
Working principle
XZG Type  vibration feeder is famous for its not burning Motor. Through our patent Shearing Rubber Spring secondary force, it can throw the materials up and reach the material quantity. It changed the previous linear feeding way. It uses a “Principle of Parabolic Type Circular Vibrating Screen”, it can fully throw up the materials .Fast rolling motion reduces the friction to the tub. It can meet the requirements of intermittent or continuous job.  There is no damage to the motor. large power, energy saving, flexibility, low noise and large feeding amount greatly improve the production efficiency and economic benefits.
Technical parameter

Model

Groove dimension(mm)

Production capacity (t/h)

Feeding size (mm)

Vibration frequency

Amplitude (mm)

Voltage (v)

Power (kw)

(W*L*H)

0-12°

XZG1

200x600x100

15

50











1000

2



220-380

0.2

XZG2

300x800x120

30

50

2.5

0.2

XZG3

400x900x150

80

70

2.5

0.2

XZG4

500x1100x200

150

100

3













380-660

0.45

XZG5

700x1200x250

250

150

3

0.75

XZG6

900x1600x250

350

200

3.5

1.52

XZG7

1100x1800x250

600

250

3.5

2.2

XZG8

1300x2200x300

800

300

4

3.7

XZG9

1500x2400x300

1000

350

4

5.5

XZG10

1800x2500x375

1300

500

5

7.5

XZG11

2000x2800x400

1500

500

5

10

XZG12

2200x2800x450

1800

500

960

5

11

XZGK1

1600x1400x250

250

100



  1000

3.5

2.2

XZGK2

19001400250

300

100

3.5

2.2

XZGK3

2200x1400x250

350

100

4

3.2

XZGK4

2500x1400x250

400

100

4

3.2



Patent qualification
Good quality motor vibrating feeder price
