Specifications
Full length pleated filter cartridges 30"Membrane filter cartridges
100% polypropylene components
Full integrity testable

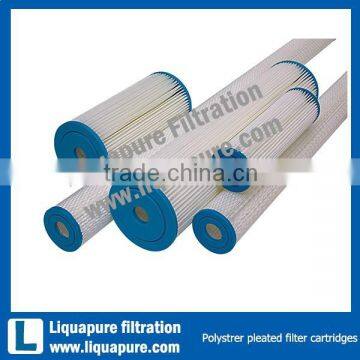

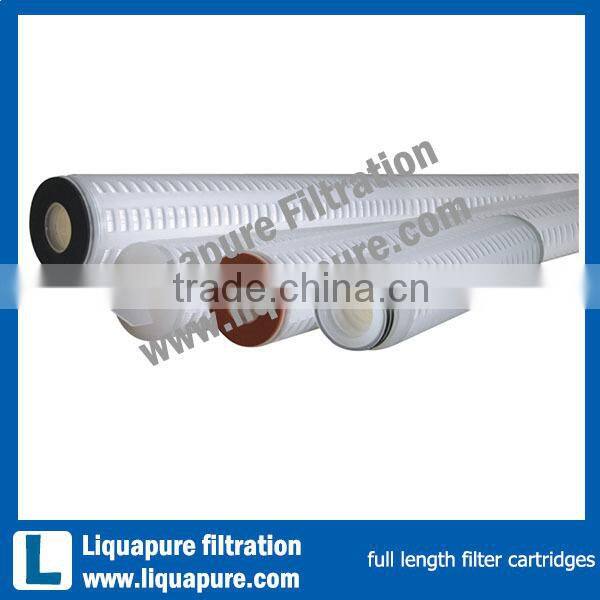

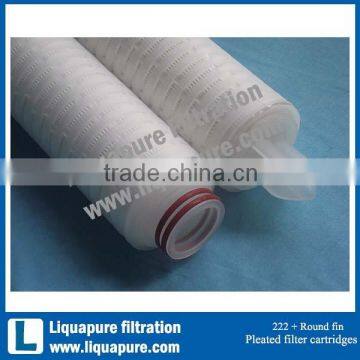

Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges description:
Liquapure is an absolute rated, pleated membrane filter that is constructed of 100% pure polypropylene. It provides maximum chemical compatibility,performance and conomy while controlling contaminants in critical processes.
Its pure polypropylene membrane is made by a patented process, which produces a highly porous structure that is inherently hydrophobic.
This uniform structure maintains consistent porosity and particle retention throughout its operational life, even after repeated in-line steam sterilization or autoclaving .
A unique, state-of-the-art process thermally bonds the filter and support components to the cartridge and caps, this produces an integral filter cartridge with excellent chemical compatibility and exceptionally low extractables levels
Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges features and benefits:
- 100% polypropylene components provide wide chemical compatibility and permit use in a broad range of fluids and applications
- Absolute ratings of 0.04um, 0.1um, 0.2micrion deliver precise particle retention at rated level
- Unique polypropylene membrane provides a natural barrier to water without the use of additives or surface modifying agents which can leach or wash out.
- Rugged, thermally bonded construction ensures reliable integrity under severe process conditions and withstands multiple sterilizations
- Contains no binders or adhesives for wide solvent compatibility with excellent low extactables
- Full integrity testable for assurance of product integrity and effectiveness in operation
- 100% integrity tested by factory to guarantee product reliability and consistency.
- Biologically inert and non-toxic meets FDA requirements for food contact use.
Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges sizes , specifications and gasket materials:
Filter Media |
Norminal Rating(um) |
Cartridge Length |
End Cap Configuration |
Seal Material (O-ring or gasket) |
|
Polypropylene microfilter |
0.1um 0.22um 0.45um 1um 3um 5um 10um 30um 60um 99um |
10” 20” 30” 40” 50” 60” |
DOE (flat gasket) SOE (222 O-ring,button cap end) SOE (222 O-ring,fin cap end) SOE (226 O-ring,button cap end) SOE (226 O-ring,fin cap end) SOE (215 O-ring,button cap end) SOE (215 O-ring,fin cap end) |
O-ring Seal Buna EPR Silicone Teflon over silicone Viton Teflon over Viton
Gasket Seal Buna EPR Polyethylene Silicone Teflon Viton |
Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges Typical Applications:
Liquapure filter cartridges meet the critical demand for contamination control in the chemical , microelectronics, aerospace, photonics, bionogicals, pharmaceutical, cosmetics, and other industries
Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges
material of construction:
- Filter Media: Polypropylene
- Upstream Support: Polypropylene
- Downstream Support: Polypropylene
- Core/ Outer Guard: Polypropylene
- End Caps: Polypropylene
- Sealing Methods: Thermal bonding
- O-ring / Gasket Seal: Buna, EPR,Polyethylene,Silicone, Teflon,
- Teflon over silicone,Teflon over Viton

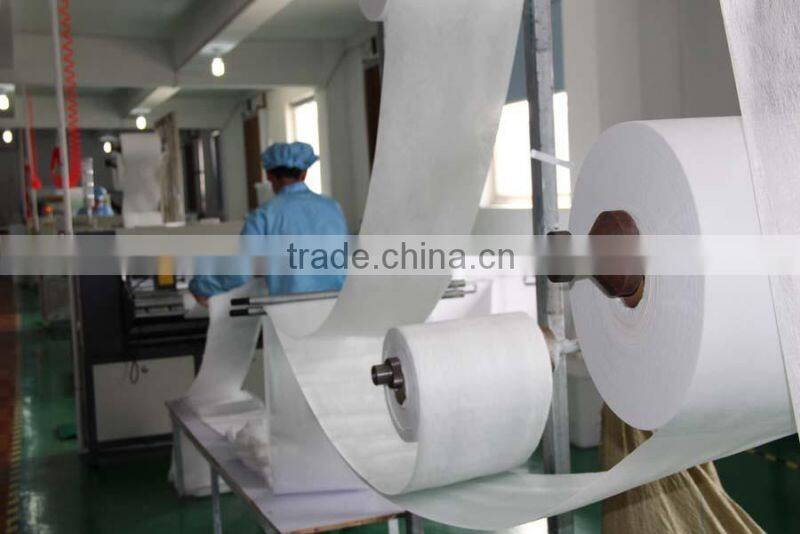

Liquapure full length filter cartridges, pleated filter cartridges, membrane filter cartridges factory
Welcome to contact us Shanghai Liquapure Filtration Co.,ltd full length filter cartridges, pleated filter cartridges, membrane filter cartridges
