Help CenterOverhead Cable ABC Cable
Related Products
Specifications
Overhead Cable ABC Cable1.Type:Insulated
2.Application:Overhead Conductor
3.Material:Aluminum
4.Conductor Type:Strandard
Overhead Cable ABC Cable
Overhead Cable ABC Cable
Application:To supply 3 phase power, usually from a pole-mounted transformer, to the use’s service Head where connection to the service entrance cable is made. To be used of service of 600V or below (Phase to phase)and at a conductor temperature of 70°C maximum for Polyethylene insulation or of 90 °C maximum for Cross-linked Polyethylene insulation.
Construction: Concentric stranded of compressed conductors of aluminum 1350 H19 covered for weather proofing with Polyethylene, High Density Polyethylene (HDPE) or Cross-linked Polyethylene (XLPE) insulation, concentric stranded AAC, ACSR or 6210 AAAC Alloy neutral messenger.
Specification:
(1)ASTM B 230, aluminum wire, 1350-H19 for electrical purpose
(2)ASTM B 231, aluminum conductor, concentric laying stranded
(3)ASTM B 232, Aluminum conductor steel reinforced (ACSR)
(4)ASTM B 399, Concentric laying stranded aluminum alloy conductor 6201-T81
Service drop conductors meet or exceed all applicable requirement of ICEA S -76-474
Adapt Temperature:

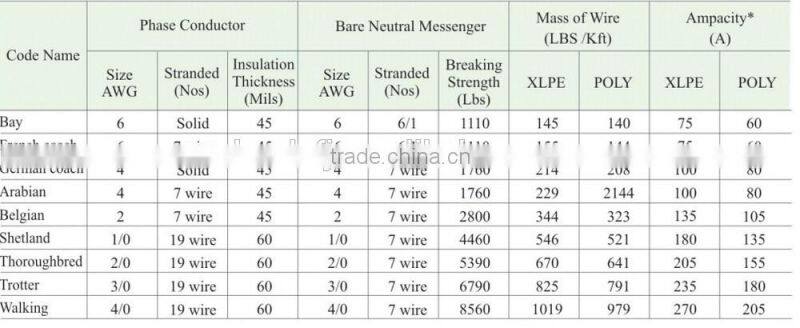

* Ampacity rating base on 75°C conductor temperature; 25°C ambient temperature;emissivity 0.91 and coefficient of absorbtion of 0.95
Overhead line AAAC Electrical Aluminum Conductor
Quadruplex service drop conductors Aluminum Conductor with AAAC 6201 neutral
Prompt Delivery with Standard Export Packing
