UTT WX3000 Industrial Secure WLAN Controller Designed For Business

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	UTT
Model Number	WX3000

Product Description

Specifications

Industrial Secure WALN Controller:
reliable and Secure wireless service
user authentication and billing
easy management

UTT WX3000 Industrial Secure WLAN Controller Designed For Business

Overview:

WX3000 is a WLAN Controller designed for small to medium sized network such as SMB, school, economic hotel and apartment, etc. it offers complete wireless security solution for wireless network.
WX3000 integrates a wide variety of functions. It supports user authentication, intelligent bandwidth management, multiple billing, VPN andcentralized management. WX3000 can manage up to 256 APs through Layer 2 protocol and offer secure wireless service for APs.

Features:

Reliable Wireless Service

WX3000 offers convenient service of combining your existing wired network with UTT’s wireless network, which will cut down the cost of the wireless installation. It supports personal management to divide different uses into different groups and ensure the wireless safety.

WX3000 offers intelligent bandwidth management. It will recognize each application and handle it according to the priority user sets. This function will guarantee the bandwidth of some important applications. Intelligent Bandwidth Management is an ideal function especially for renting house, hotel and some public places which offer wireless service for customers.

User Authentication and Billing

WX3000 supports a very simple management mechanism for User Authentication. It offers 2 ways of authentication, PPPoE-Based and Web-Based. With this function, the Administrator doesn’t have to modify any existing network or adding another authentication server.

The Administrator can easily set the available period, bandwidth and IP Address for each account. Users will be authenticated with username and password. WX3000 also provides flexible management platform for Administrator to monitor user’s real-time status and traffic, ban illegal users or limit account bandwidth.

Account Billing is also a essential function for hotel and school. WX3000 delivers Account Billing based on Time and Traffic. The Notification function will pop up when expiration arrives.

Secure Wireless Network

WX3000 can be integrated with the existing network and work with APs to build a complete wireless network. User can handle and control the data transmitted through AP. It also supports VLAN based on different SSIDs and users to divide different zone and ensure the network safety.

WX3000 can control the APs of scanning wireless network, wireless channels and band, recognize illegal and legal APs. It also supports real-time control of AP RF scanning to test the signal strength and interfere. According to the signal testing result, WX3000 will adjust the traffic loading, output power, RF coverage and channel distribution to optimize the wireless coverage and throughput.

Key Features :

Support connection of static IP, DHCP and PPPoE

4 Gigabit LAN ports, 3 Gigabit WAN port

10/100/1000M LAN/WAN/DMZ port, auto MDI/MDIX, Auto-Negotiation

Support DHCP Server, Multiple DHCP Pool

Support IP PnP

Support Static Routing

Support Load Balancing and Connection Failover

Support VLAN based on different policy

Support Intelligent Bandwidth Management

Support User Authentication

Support Web-based and PPPoE-based Authentication

Support account Billing

Support Notification for Expiration

Support real-time monitoring

Support user history log record

Support traffic statistics

Support AP Management, up to 256 APs

Support AP status monitoring

Support AP Disable, Restart and Reset

Support AP Firmware Auto-loading

Support AP RF and user monitoring

Support AP Configuration Models Auto-loading

AP Models available to manage: WA1300N,WA1500N,WA1900N and WA2200N

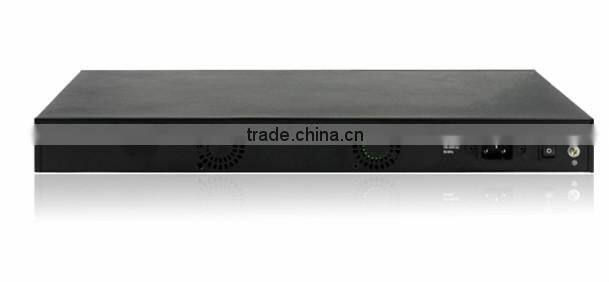

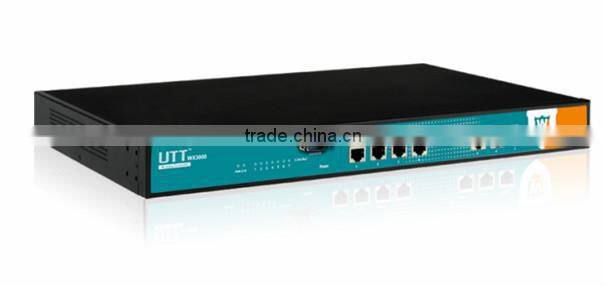

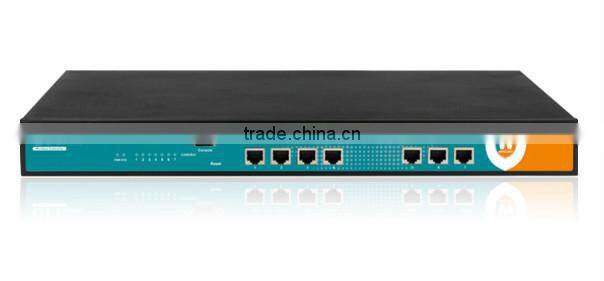

The Photos Of WX3000:
