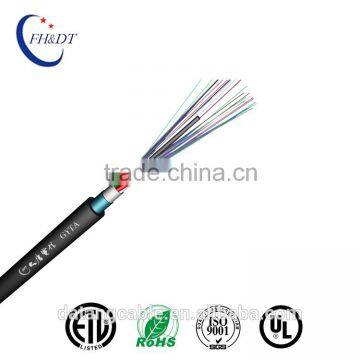

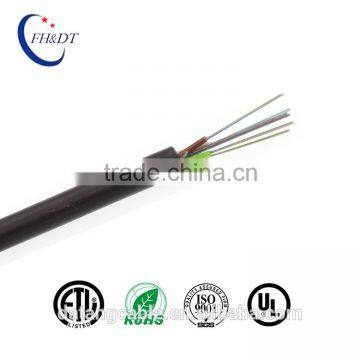

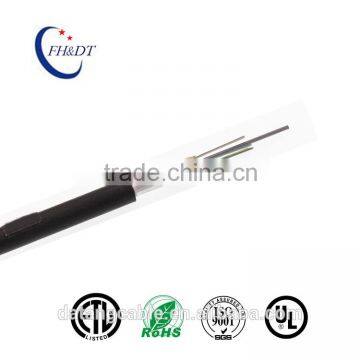

GYTS Stranded Loose Tube Fiber Optical Cable for Outdoor Application

Name: GYTS Stranded Loose Tube Fiber Optical Cable for Outdoor Application
Brand: FH&DT
SKU: 123158351
Availability: InStock

US$ 200 - 200 MOQ: 10 Kilometers

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

FH&DT

Model Number:

GYTS Optical Cable

Chengdu Datang Communication Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai/ ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name FH&DT

Model Number GYTS Optical Cable

Number of Conductors 2

Type of fiber			B1.1		B4
Wavelength(nm)			1310	1550	1550
Attenuation coefficient(max)(dB/km)			0.36	0.22	0.22
PMD	M		20		20
	Q		0.01%		0.01%
	PMD_Q (max)		0.5ps/km^1/2		0.5ps/km^1/2
Zero-dispersion Wavelength(nm)			1300~1324		——
Zero-dispersion Slope (max) ps/(nm²·km)			0.093		——
Absolute value of Chromatic Dispersion ps/(nm·km)		1288~1339nm	3.5		——
		1271~1360nm	5.3		——
		1550nm	18.0		——
		1530~1565nm	——		0.1~10.0
		Dmax-Dmin 1530~1565nm	——		5.0
cut-off wavelength lcc(nm)			≤1260		≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Fibre Count	Steel Wire mm	PE Sheathed Steel Wire mm	Loose Tube Size mm	Tubes	Fillers	Cable Diameter mm	Cable Weight kg	Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
4~6	1.6	/	1.4/2.1	1	4	11.2	136	600/1500	300/1000
8~12	1.6	/	1.4/2.1	2	3	11.2	137	600/1500	300/1000
14~18	1.6	/	1.4/2.1	3	2	11.2	137	600/1500	300/1000
20~24	1.6	/	1.4/2.1	4	1	11.2	138	600/1500	300/1000
26~30	1.6	/	1.4/2.1	5	0	11.2	138	600/1500	300/1000
32~36	1.9	/	1.8/2.6	3	2	12.5	171	600/1500	300/1000
38~48	1.9	/	1.8/2.6	4	1	12.5	172	600/1500	300/1000
50~60	1.9	/	1.8/2.6	5	0	12.5	173	600/1500	300/1000
62~72	1.9	2.7	1.8/2.6	6	0	13.3	192	600/1500	300/1000
74~84	2.2	3.6	1.8/2.6	7	0	14.2	222	600/1500	300/1000
86~96	2.2	4.4	1.8/2.6	8	0	15.0	242	600/1500	300/1000
98~108	2.2	5.3	1.8/2.6	9	0	15.9	265	600/1500	300/1000
110~120	2.2	6.1	1.8/2.6	10	0	16.7	288	600/1500	300/1000
122~132	2.2	6.9	1.8/2.6	11	0	17.5	312	600/1500	300/1000
134~144	2.2	7.8	1.8/2.6	12	0	18.4	340	600/1500	300/1000
