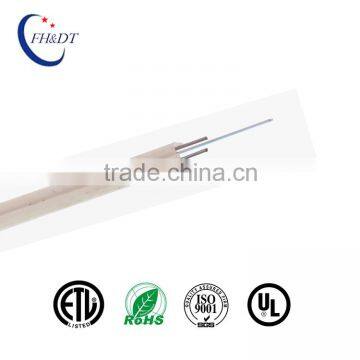

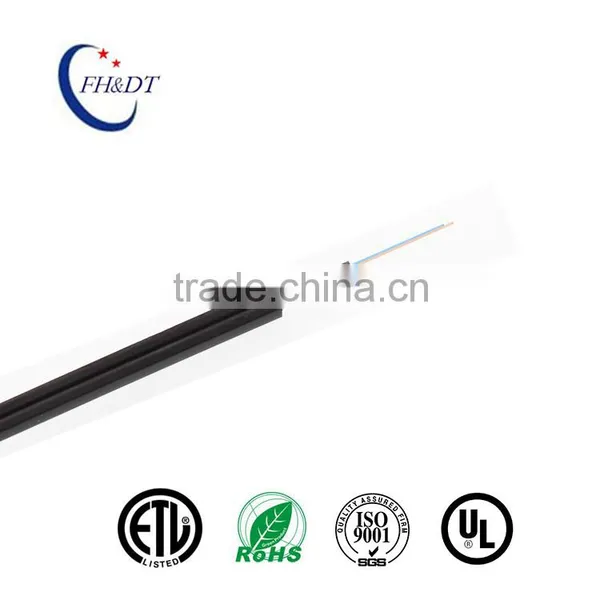

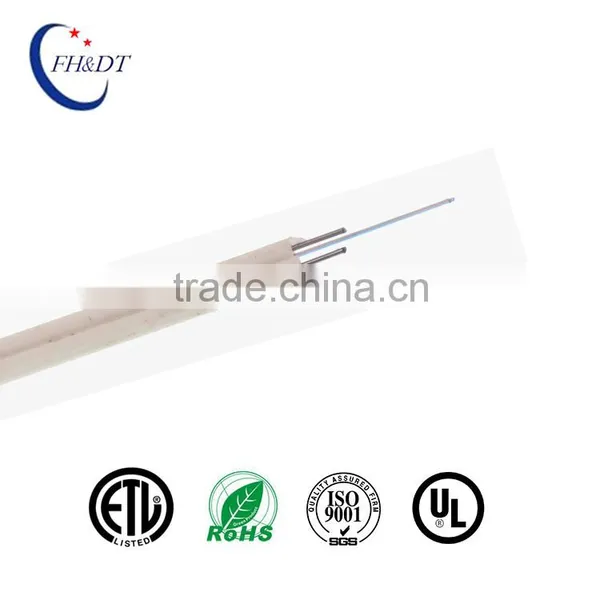

Help CenterBow-type Drop Cable/ 1/2/4/6/8/12 Fiber/ Optical Cable FTTH Access Quality Choice
Related Products
-
Fiber Optic Adapter Single Mode Fiber Optic AdapterUS$ 0.5 - 0.5MOQ: 10 Boxes -
FTTH Access Drop Cable/ 1/2/4/6/8/12 Fiber/ Optical Cable Quality ChoiceUS$ 150 - 200MOQ: 10 Kilometers
-
12 Core MTP-LC Branched Optical Cable Patch CordUS$ 0.5 - 0.5MOQ: 10 Boxes
-
LC Trunk Fiber Optical Cable for Trunk ConnectionsUS$ 0.5 - 0.5MOQ: 10 Boxes
-
24 Cores MTP-LC Branched Optical Cable Patch Cord for Swiching ModulesUS$ 0.5 - 0.5MOQ: 10 Boxes
Type |
Description |
Applications range |
Use situation |
GJXV |
Central metal strength member,PVC sheath,Bow-type drop cables |
Buildings with horizontal and vertical wiring |
recommended |
GJXFV |
Non-metal central strength member,PVC sheath,Bow-type drop cables |
|
General use |
GJXH |
Central metal strength member,Non-halogen flame retardant jacket,Bow-type drop cables |
|
recommended |
GJXFH |
Non-metal central strength member,Non-halogen flame retardant jacket,Bow-type drop cables |
|
recommended |
GJYXCH |
Central metal strength member,Non-halogen flame retardant jacket,Self-support Bow-type drop cables |
Outdoor Self-support overhead introduction |
recommended |
GJYXFCH |
Non-metal central strength member,Non-halogen flame retardant jacket,Self-support Bow-type drop cables |
|
General use |
Horizontal and vertical Cabling Bow-type drop cables
item |
1 Fibre or 2 Fibres |
4 Fibres |
8 Fibres |
|
Cable Diameter(mm) |
2.0×3.0 |
2.0×4.0 |
2.5×4.0 |
|
Cable Weight(kg/km) |
10.0 |
12.0 |
15.0 |
|
Strength Term(N) |
Long |
100 |
100 |
100 |
|
Short |
200 |
200 |
200 |
Crush Resistance(N/100mm) |
Long |
1000 |
1000 |
1000 |
|
Short |
2200 |
2200 |
2200 |
Temperature range(℃) |
-40~+60 |
|||
Note: Suggest Metal Strength Member is used for the horizontal and vertical Cabling System | ||||
Outdoor Self supporting aerial Bow-type drop cables
item |
1 Fibre or 2 Fibres |
4 Fibres |
8 Fibres |
|
Cable Diameter(mm) |
2.0×5.0 |
2.0×6.0 |
2.5×6.5 |
|
Cable Weight(kg/km) |
20.0 |
22.0 |
25.0 |
|
Strength Term(N) |
Long |
660 |
660 |
660 |
|
Short |
300 |
300 |
300 |
Crush Resistance(N/100mm) |
Long |
1000 |
1000 |
1000 |
|
Short |
2200 |
2200 |
2200 |
Temperature range(℃) |
-40~+60 |
|||

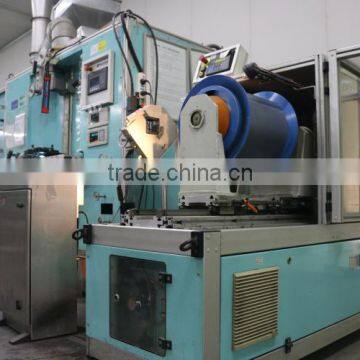

Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
