Help CenterKEHUA Gas Wafer Biscuit Machine KHG-39
Related Products
-
Electrical Wafer Production Line 63 PlateUS$ 280,000 - 320,000MOQ: 1 Set -
Electrical Wafer Production Line Model KHE-63US$ 280,000 - 320,000MOQ: 1 Set
-
Complete Wafer Production LineUS$ 280,000 - 320,000MOQ: 1 Set
-
Door-Type Wafer Sheet CoolerUS$ 8,500 - 12,000MOQ: 1 Set
-
Wafer Batter MixerUS$ 5,800 - 6,300MOQ: 1 Set
Specifications
Wafer biscuit machine1. capacity: 33.2tons/day
2. good quality
3. full automatic
4. low consumption
Wafer Biscuit Machine
Wafer Biscuit Machine For 39 Plates
Introduction:
Automatic wafer biscuit machine for 39 plates which is one of KEHUA company's traditional products used in product different kind of good wafer, and the capacity about 3.32t/24h. This line had been more reliably and mature via innovative improvements on the basis of advanced technology within this 20 years.
Baking type: 1. Gas(LNG or LPG),
2. Electricity(380V/3 phase/50Hz).
Equipment & Process:
Production Process of wafer biscuit machine: batter mixing----wafer baking----cooling----cream spreading----book cooling----cutting
Equipments about wafer biscuit machine: 1.batter mixer 2.oven nnecting machine 4.door type cooler llecting machine 6.cream spreader 7.wafer cooling tower 8.refrigeration system 9.wafer conveyor 9.wafer cutter 10.cream mixer 11.wafer smashing machine

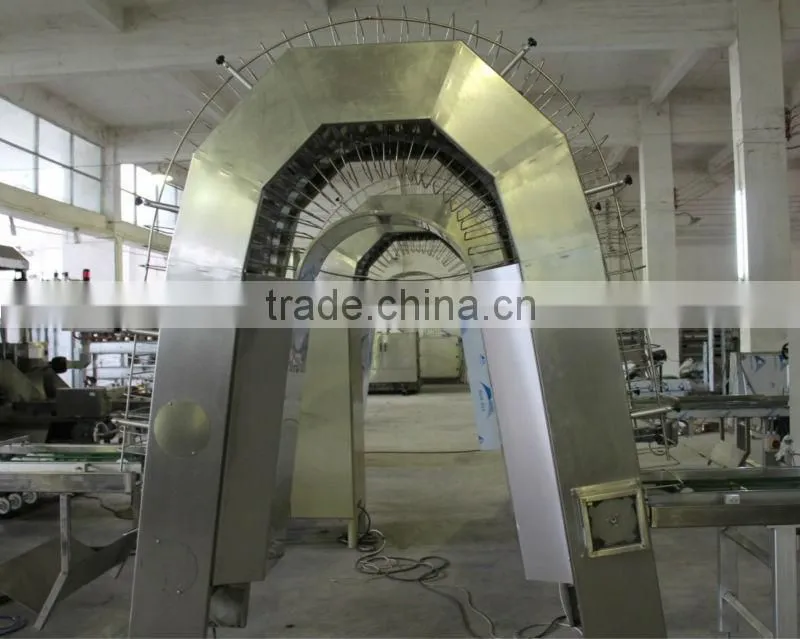

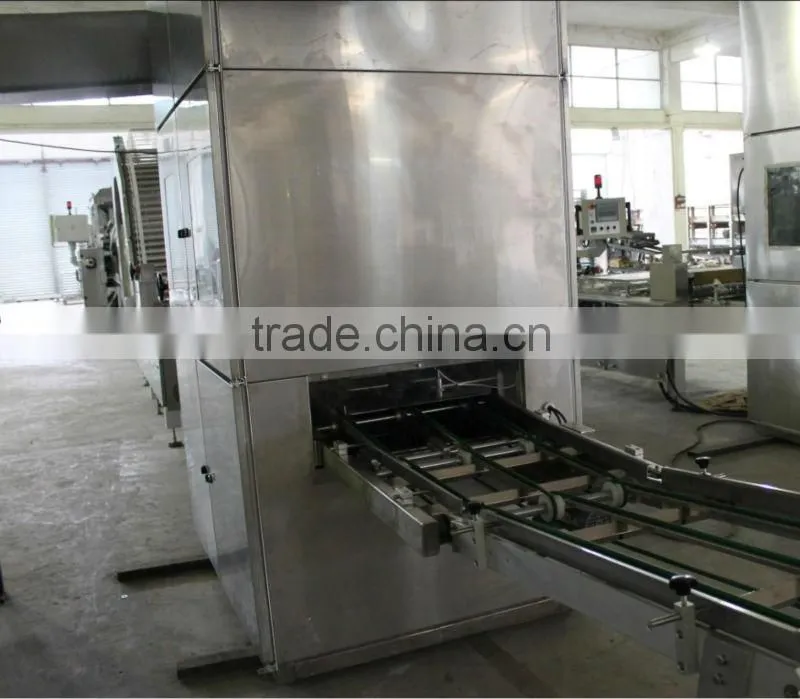

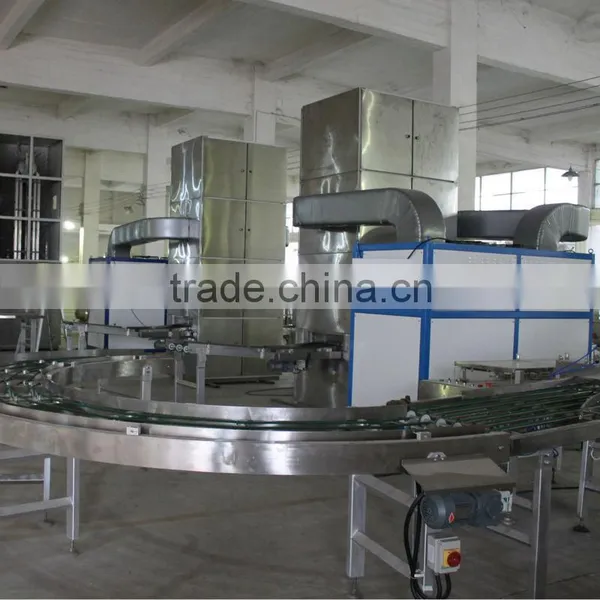

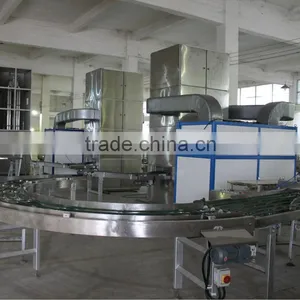

Real pictures of wafer biscuit machine:
Wafer Pictures:
Specialty & Using:
Products Distinguishing Feature:
1. The oven has 39 plates and they made of nodular cast iron, the standard dimension of baking plate is 470×325mm. The power transistor and travelling wheel have the Chinese patent, the line have PID temperature automatic control system and the good affect for wafer sheet.
2. Batter mixer is made of Stainless Steel. It can mixing 65kg batter with 25kg flour and 40kg water within 5 minutes.
3. Door type wafer cooler is made of Stainless Steel and using the own motor.
4. The racks of cream spreader are the stainless steel tank, the motor and pneumatic component which both seal in the tank have good waterproof and dustproof. The spreader has the easy clear design.
5. Wafer cooling tower is made of Stainless Steel, and the part which touch the wafer book are all made of Stainless Steel 304. The cooling fan is outlay and the temperature of cooler’s inlet air are 5°C. The relative humidity of cooling tower is 55%.
6. Wafer cutter is mechanically and the maximum speed of cutting wafer book(filled with cream) are 8 books.
Using: This line is exclusively used in produce different kind of good wafer.
Technical advantage of wafer biscuit machine:
[1] In the field of wafer biscuit machine have more than 15 years experiences.
[2] According to HACCP design, the controlling and operating for the important equipment will be more accurately and safely.
[3] Have CE, ISO9001:2000, FM.
[4] Professional design, material selection more scientifically, processing more accurately.
[5] Good quality.
[6] Best service and perfect after sale service.
Technical parameter for wafer biscuit machine:
| Length of baking oven | Length of total wafer biscuit machine | Weight | Power | LNG consumption(kg/hour) | Air compression consumption | Capacity | |
| Wafer biscuit machine for 39 plates | 8.5m | 21m | 15.9 tons | 5.15kw | 21.7kg/hour | 54m³/h | 140kg/hour |
(1) The standard size of the baking plate is 470×325mm; Pattern(standard) is 2.5×2.5×0.5mm.
(2) The size of wafer sheet is 464×321mm, The effective cutting size of wafer sheet is 456×315mm.
(3) Wafer sheet's thickness: 2.5mm---3.2mm.
(4) Weight of wafer sheet: 50---60g
(5) Rated power: 30kw
(6) Air compression: 0.9cube/minute
(7) Baking time about 2 minutes
(8) Worker: 5 people
Space: machines using 70 square meter
Packaging & Container
Packaging: iron and waterproof membrane
Container: one 40'HQ and one 40'GP
[Note]: We can make different pattern for the plate according to client's demands.
