Electrical Wafer Production Line 63 Plate

Specifications

Wafer production line
1.Capacity: 5.76 tons/day
2.Automatically and professional
3.Good quality
4.Electrical power

Electrical Wafer Production Line KHE-63



Wafer production line for 63 plate



Description:

1. Brand: KEHUA Brand (famous foodstuff machinery brand in China)
2. Function: produce the different kinds of wafer automatically.
3. Capacity: 5.76 tons/per hour.
4. Manufacture experiences: 15 years.
5. Baking type:  Electricity (380V/3 phase/50Hz).
6. Whole shell of line use N304 stainless stell in accordance with health and safety standard.
7. Electricity and transmission all made by  Siemens, Mitsubishi.
8. Bearing brand: SKF Franch/Austria
9. Motor brand: SEW Germany

After sales service:

1. Warranty period: one year.
2. Installation: we will send our trained specialists to install the machines and train the customer's worker when the equipments are arrived in the client's city.
3. If the machines have something wrong, we will help you to solve the problem anytime.



Technical Parameter:

Wafer production line:

Name	Dimension(L*W*H)	Weight	Power	Power consumption	Air compression consumption(per hour)	Rated power	Capacity
Wafer production line for 63 plates	29.7m*1.8m*2.6m	23tons	8.12kw	230kw/h	50m3	45kw	240kg/h

 Parameter:

1) The standard size of the baking plate is 470*325mm;  Pattern(standard) is 2.5*2.5*0.5mm;
2) The size of wafer sheet is 464*321mm; The effective cutting size of wafer sheet is 456*315mm;
3) Wafer sheet's thickness: 2.5mm---3.2mm;
4) Weight of wafer sheet: 50---60g;
5) Rated power: 45kw;
6) Air compression consumption: 1.5cube/minute;
7) Baking time about 2 minutes;
8) Worker: 5 people.



Equipment & process of wafer production line:



Wafer production line

Production process of wafer production line:

batter mixing----wafer baking----cooling----cream spreading----book cooling----cutting





Equipments of wafer production line:

1.batter mixer 2.batter storage tank 3.oven nnecting machine 5.door type cooler llecting machine 7.cream spreader 8.wafer cooling tower 9.refrigeration system 10.wafer conveyor 11.wafer cutter 12.wafer separating machine13.cream mixer 14.cream storage tank 15.wafer smashing machine

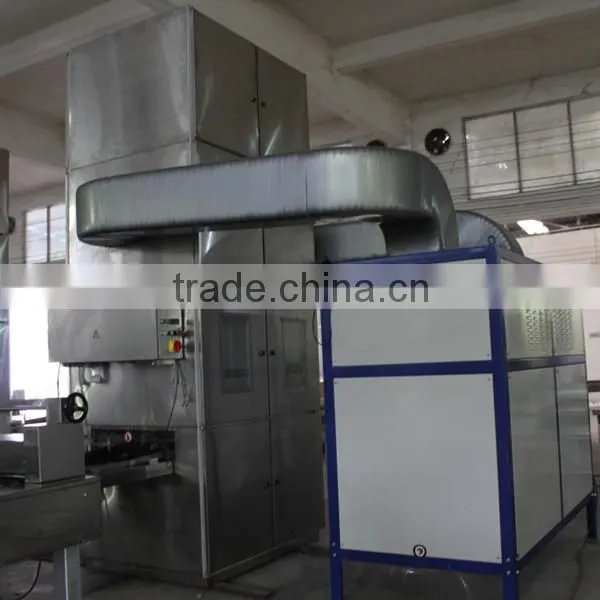

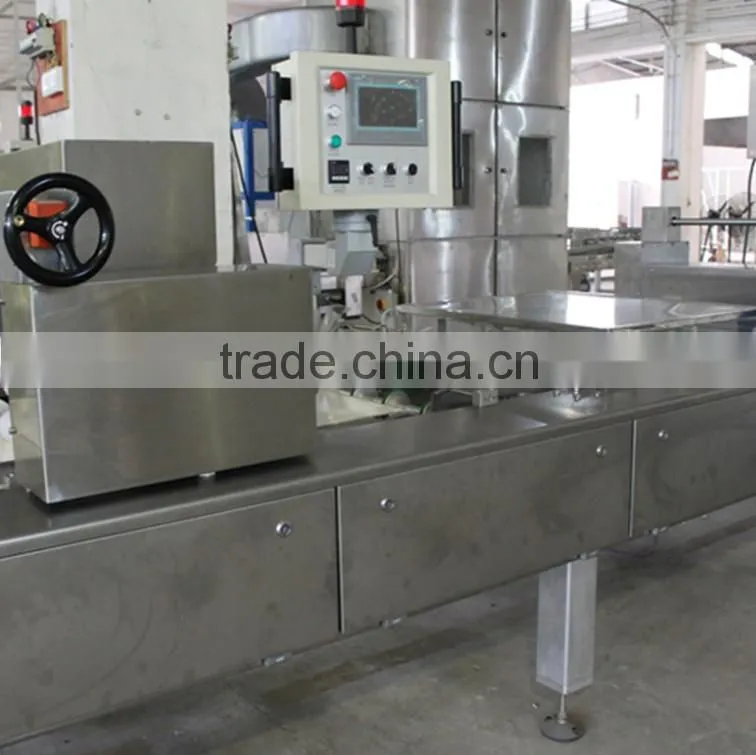

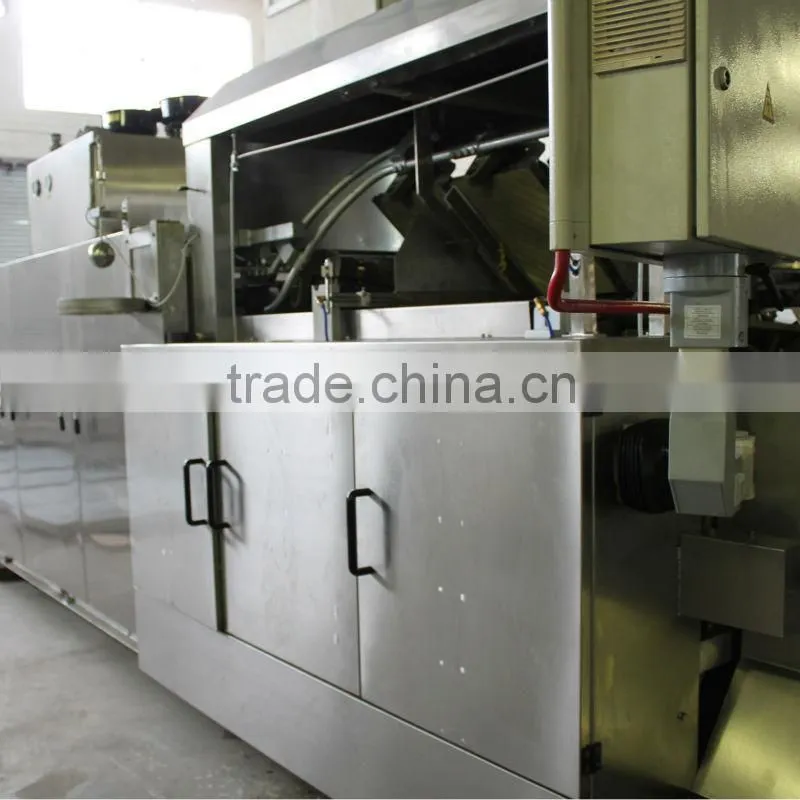

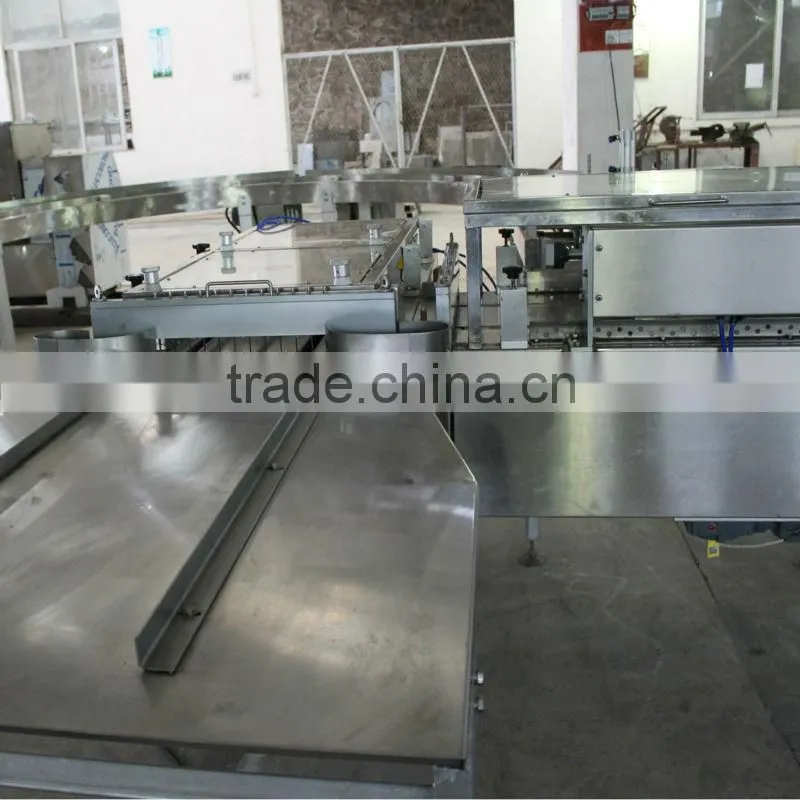

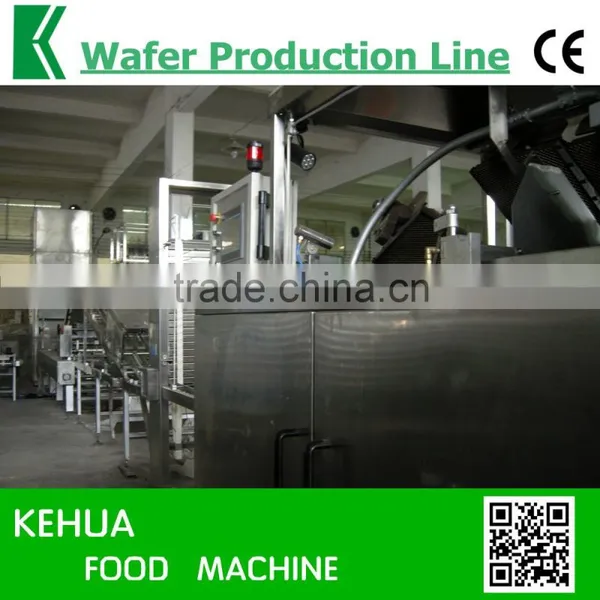

The real pictures of waer production line:



Wafer pictures(by wafer production line):



 Products Distinguishing Feature:



Wafer production line:

1. The oven has 63 plates and they made of nodular cast iron, the standard dimension of baking plate is 470*325mm. The power transistor and travelling wheel have the Chinese patent, the line have PID temperature automatic control system and the good affect for wafer sheet.

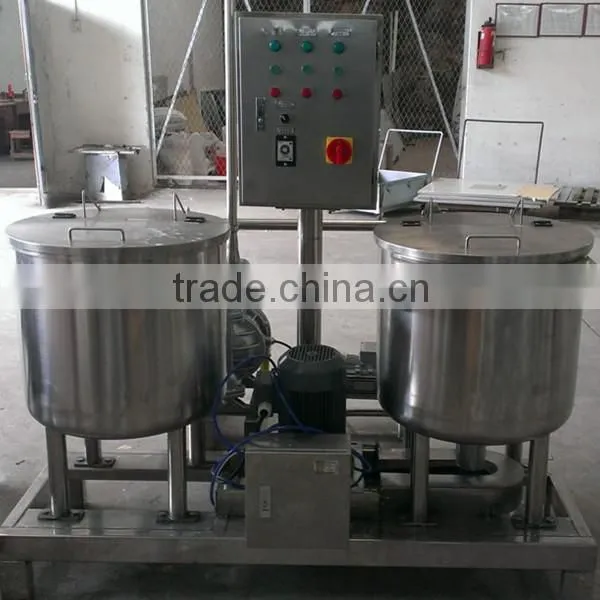

2. Batter mixer is made of Stainless Steel. It can mixing 65kg batter with 25kg flour and 40kg water within 5 minutes.

3. Door type wafer cooler is made of Stainless Steel and using the own motor.

4. The racks of cream spreader are the stainless steel tank, the motor and pneumatic component which both seal in the tank have good waterproof and dustproof. The spreader has the easy clear design.

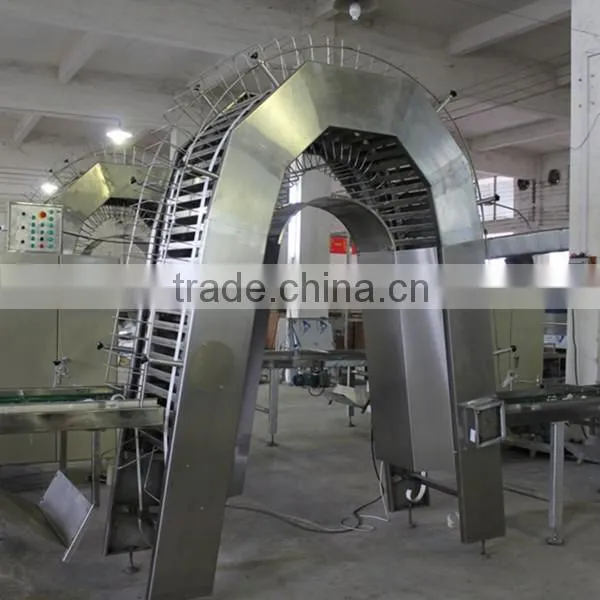

5. Wafer cooling tower is made of Stainless Steel, and the part which touch the wafer book are all made of Stainless Steel 304. 6. The cooling fan is outlay and the temperature of cooler’s inlet air are 5C. The relative humidity of cooling tower is 55%.

7. Wafer cutter is mechanically and the maximum speed of cutting wafer book(filled with cream) are 8 books.

Using: Wafer production line is exclusively used in produce different kind of good wafer.





Packaging & Container



1. Packaging: iron and waterproof membrane.
2. Container: two 40'HQ, one 40'GP and one 20'GP

[Note]: We can make different pattern for the plate according to client's demands.
