Specifications
1.Make 3-12oz paper cups in one machine ,45-50pc/min2.paper cup machine price is a automatic machine with multi-working statio
Cold/hot drink disposable paper cup shaping machine detailed Product Description
1.Make 3-12oz paper cups in one machine ,45-50pc/min
2.New DESIGN: hlep customer saving 10% paper from 17% wasteage to decrease
3.Work 24 hours every day
4.Double PE paper required
WELCOME TO QI CHEN MACHINE !!!

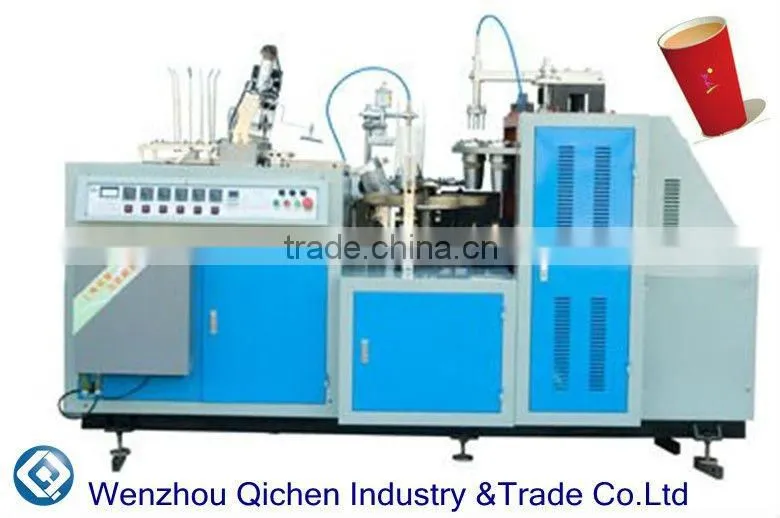

PE coaed 50-350ml paper cups forming machine features:
1. JBZ-A7 Paper Cup Forming Machine is an automatic machine with multi-working station,
2.The machine includes whole process as: paper-feeding, sealing, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge, ect.
3.Produce double- side film- coated cup like beverage cup
QC Team:
More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.
Guarantee terms:
1. The seller guarantee the machines are new (or unused) and the guarantee period will be given 12 months which starts from the date of the machine's arrival.
2.gear box is 125 type, which has three year warranty.
3.Each set machine goes together with a set of free accessories.
Shipment:
We will keep tracking with the container until clients receive it.
40HQ,40GP,20FT(LCL,FCL)
Compare Bevel type with normal type
Normal type: 9 oz / 210ml
Description: (one-side PE paper 200gsm, price USD 1000 per ton for example)
1 845.2mm x 669.51mm sheet paper, can make 24 pieces 9oz cup-fan-body ;
2 One cup-sheet-body need paper weight : 200 x 0.8452 x 0.66951 / 24 == 4.715g
3 One ton 200 gsm paper can make : 1000 000 / 4.715g = 212 089pieces cups;
4 One 9oz cup cost : 1000USD / 212 000 == 0.00471 USD
Bevel type:
Description:
(one-side PE paper 200gsm, price USD 1000 per ton for example)
A. 659.3mm x 785.66mm sheet paper, can make 24 pieces 9oz cup-fan-body ;
B. One cup-sheet-body need paper weight : 200 x 0.6593 x 0.78566 / 24 == 4.3165g
C. One ton 200 gsm paper can make : 1000 000 / 4.3165g = 231 669 pieces cups;
D. One 9oz cup cost : 1000USD / 231 500 == 0.00431 USD

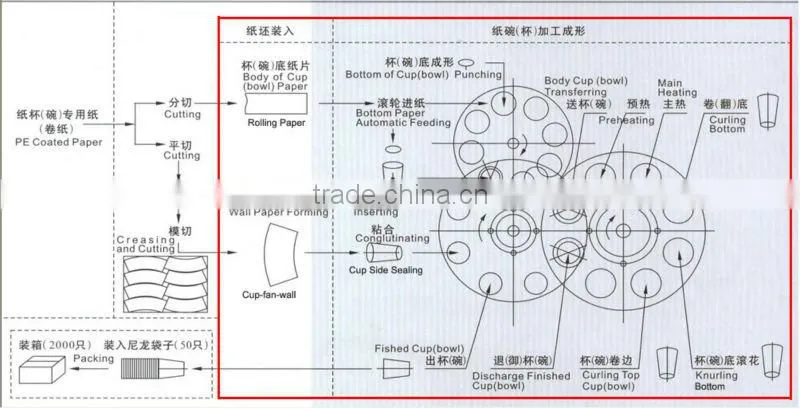

TECHNICS FLOW:
The product for paper cup machine video:
/v_show/id_/v_show/id_XMzE3OTA0Nzgw.htmlXMzE3OTA0Nzgw.html
Specification:
Model |
JBZ-A7 Automatic Double PE Paper Cup Machine |
Paper Cup Size |
3oz-12oz (mold exchangeable)80ml~330ml |
Raw Material |
Two-side PE (polyethylene) film coated/laminated paper |
Suitable paper weight |
140-350gsm |
Rated Productivity |
45-50paces/minute; |
Power Source |
220V/380V 50Hz or other required |
Total Power |
4.8KW |
Total Weight |
1600KG |
Package Size |
2800 x1300 x1700mm; |
(L x W x H) | |
Working Air Source |
0.4Mpa, Air Out-put:0.6 m3/minute |
Making Double PE coated paper cups, need to buy an air compressor | |
From above information:
bevel type is more save paper 10% than normal type

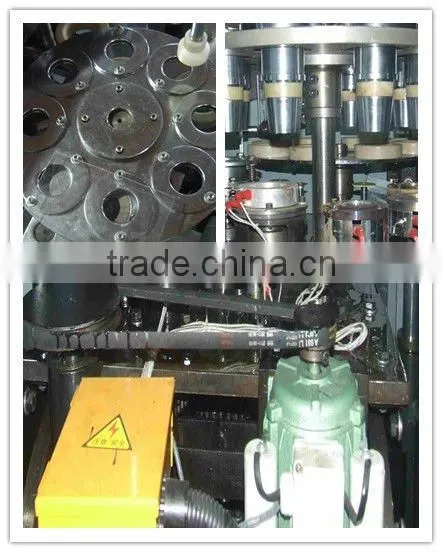

For our machines' specail points , please find as follows:
1) gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year.
for the two type of gear box, pls find at attachments.
2) Transducer brand: Huifeng (The largest supplier in china)
3) Two types of drop system. 1: normal type an incline horse.
2: Arm-and-hand systems which use arm to pick the cup drop in to plastic hole. It makes the drop cup 99.9999.
4) Some bearing import from out of china.
5) Contractor:Zhengtai brand (The biggest electric parts supplier in china)
6)Inside of the machine , using big size of chains
7)2800*1300*1800mm machine size, which is much big other some companies' machine. our machine has much stability
8)Machine body material is SS
Each set machine goes together with a set of free accessories.
Each machine has one year warranty.
Welcome consult me ! JBZ-A7 Automatic double PE Paper Cup Machine)
