Product Description

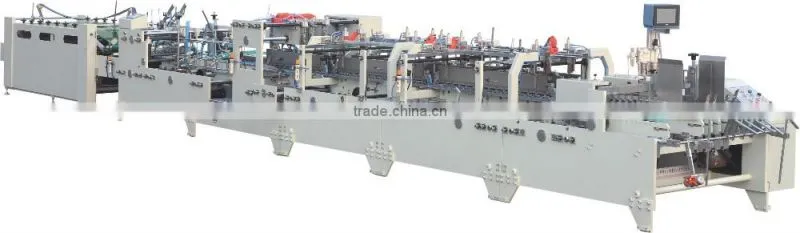

Corrugated Cardboard Box Making Machine
Corrugated Cardboard Box Making Machine : Corrugated Cardboard Box Making Machineadopt HMI and PLCcontroller, imported electronnics, feeding unit controlled by separately motor and inverter, railway running, keep the machine performance atable ,easy control and easy operate.

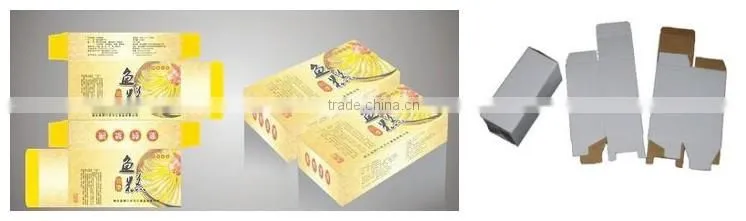

Corrugated Cardboard Box Making Machine : an idea equipment of making 4 conner or 6 conner box (box with cover and fold),Carton box ,cardboard carton I.E. Which the box widely uesd for snacks, cake, muffin, ect food package.
1.Size of 6 folds box and folding box:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 300 | 300 | 400 | 400 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 150 | 200 | 200 | 300 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
2. Size of 4 corners box and folding box
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 150 | 180 | 200 | 250 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 120 | 150 | 200 | 200 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
3.Size of bottom-locked carton and folding carton
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 180 | 200 | 250 | 250 | |
| B | MAX | 500 | 600 | 700 | 800 |
| MIN | 80 | 100 | 120 | 120 | |
| H | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 30 | 30 | 30 | |

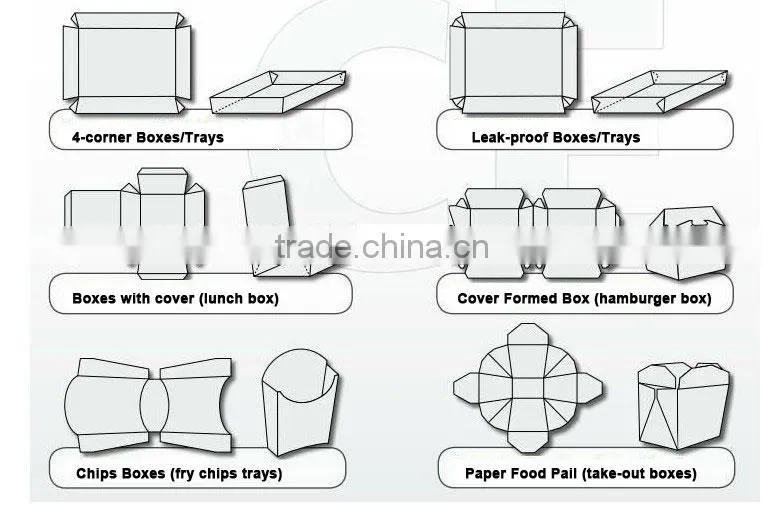

4.Carton type and size:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 120 | 200 | 250 | 250 | |
| B | MAX | 800 | 900 | 1000 | 1200 |
| MIN | 60 | 60 | 80 | 100 | |

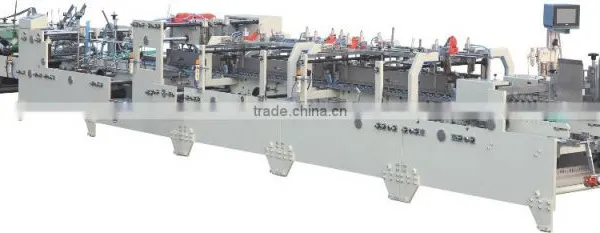

Corrugated Cardboard Box Making Machine
1.Feeding section
a. Corrugated Cardboard Box Making Machine : auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;
b. Corrugated Cardboard Box Making Machine: independent high-speed feeding bell can be easily adjusted;
c. Corrugated Cardboard Box Making Machine: independent vibrating motor can improve feeding greatly;
d. Corrugated Cardboard Box Making Machine: feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
2.Folding
a. Corrugated Cardboard Box Making Machine: long-distant folding ensure the first line 180°, the third 135° to easily open the cartons fully filled;
b. Corrugated Cardboard Box Making Machine: all parts can be easily replaced, which is convenient to install other components for other kinds of cartons.
3.Bottom folding
a. Corrugated Cardboard Box Making Machine: The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
b. Corrugated Cardboard Box Making Machine: Bottom-folding speed is 50-400 pcs per min, stable and reliable
4.Folding
a. Corrugated Cardboard Box Making Machine: Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
5.Full pressing
a.Corrugated Cardboard Box Making Machine: Pressure can be adjusted conveniently, reliable, ensure good quality of gluing
b. Corrugated Cardboard Box Making Machine: Automatic Pre-Folding and Bottom Lock Corrugated Cardboard Box Making Machine Machine(QH-SLJ)es to match with boxes regulating, easy to count and pack
6.Transmission
Corrugated Cardboard Box Making Machine: Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing;
7.Collecting
Corrugated Cardboard Box Making Machine: Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.
8.Spraying System
Corrugated Cardboard Box Making Machine: Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.
9.Servo motor
Corrugated Cardboard Box Making Machine: Corrugated Paper Box Die Cut Machine Reliable (QH-SLJ): The servo control system, assistant with PLC and signal collection operation system, to fold each product (4, 6 corners box) correctly, ensure perfect quality.
We provide not only the equipment but also the solve ways.
