Product Description
Folder Gluer
Folder Gluer : Folder Glueradopt HMI and PLCcontroller, imported electronnics, feeding unit controlled by separately motor and inverter, railway running, keep the machine performance atable ,easy control and easy operate.

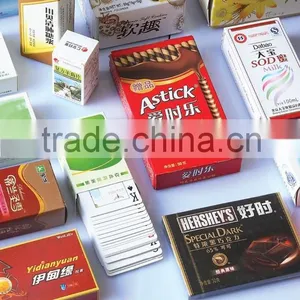

Folder Gluer : an idea equipment of making 4 conner or 6 conner box (box with cover and fold),Carton box ,cardboard carton I.E. Which the box widely uesd for snacks, cake, muffin, ect food package.
1.Size of 6 folds box and folding box:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 300 | 300 | 400 | 400 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 150 | 200 | 200 | 300 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
2. Size of 4 corners box and folding box
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 150 | 180 | 200 | 250 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 120 | 150 | 200 | 200 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
3.Size of bottom-locked carton and folding carton
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 180 | 200 | 250 | 250 | |
| B | MAX | 500 | 600 | 700 | 800 |
| MIN | 80 | 100 | 120 | 120 | |
| H | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 30 | 30 | 30 | |
4.Carton type and size:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 120 | 200 | 250 | 250 | |
| B | MAX | 800 | 900 | 1000 | 1200 |
| MIN | 60 | 60 | 80 | 100 | |
Folder Gluer
1.Feeding section
a. Folder Gluer : auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;
b. Folder Gluer: independent high-speed feeding bell can be easily adjusted;
c. Folder Gluer: independent vibrating motor can improve feeding greatly;
d. Folder Gluer: feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
2.Folding
a. Folder Gluer: long-distant folding ensure the first line 180°, the third 135° to easily open the cartons fully filled;
b. Folder Gluer: all parts can be easily replaced, which is convenient to install other components for other kinds of cartons.
3.Bottom folding
a. Folder Gluer: The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
b. Folder Gluer: Bottom-folding speed is 50-400 pcs per min, stable and reliable
4.Folding
a. Folder Gluer: Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
5.Full pressing
a.Folder Gluer: Pressure can be adjusted conveniently, reliable, ensure good quality of gluing
b. Folder Gluer: Automatic Pre-Folding and Bottom Lock Folder Gluer Machine(QH-SLJ)es to match with boxes regulating, easy to count and pack
6.Transmission
Folder Gluer: Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing;
7.Collecting
Folder Gluer: Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.
8.Spraying System
Folder Gluer: Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.
9.Servo motor
Folder Gluer: Corrugated Paper Box Die Cut Machine Reliable (QH-SLJ): The servo control system, assistant with PLC and signal collection operation system, to fold each product (4, 6 corners box) correctly, ensure perfect quality.
We provide not only the equipment but also the solve ways.
