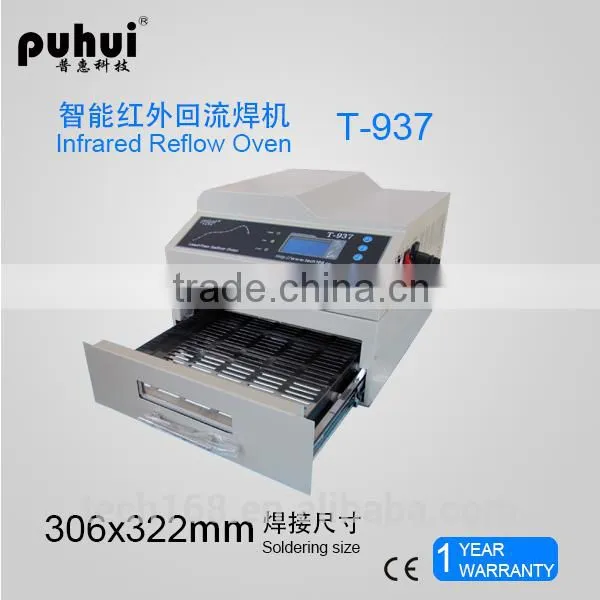

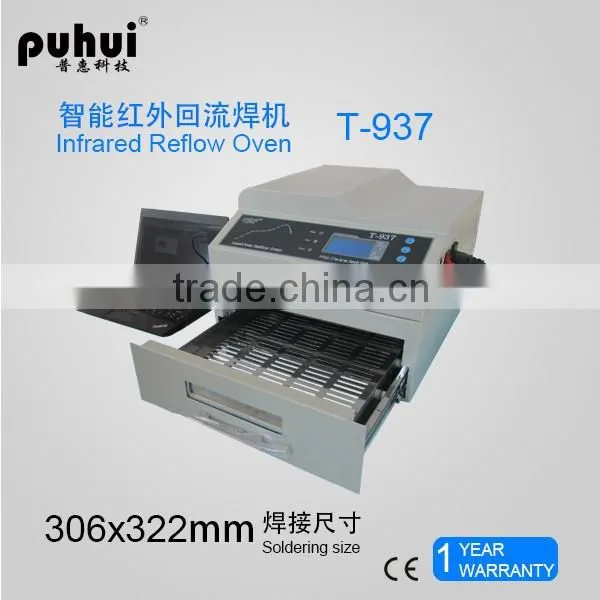

Help CenterT-937 Lead-free Reflow Oven , Bga Reflow Solder , Infrared + Hot Air Circulation Heating Oven, Taian,puhuiAC110V/220V,mine
Related Products
-
Puhui T-962C,Infrared Reflow Oven,desktop Reflow Oven,sodering Machine,auto Mini Oven,made in ChinaUS$ 500 - 500MOQ: 1 Carat -
Smt Desk Lead-free Reflow Oven,reflow Oven,wave Soldering Machine,puhui 937MUS$ 1 - 650MOQ: 1 Set
-
LED SMT Reflow Soldering Machine,infrared Relfow Oven,wave Sodering Machine,puhui960US$ 1 - 1,120MOQ: 1 Piece
-
Six Zones Reflow Oven, Infrared Sodering Oven Macnhine,puhuit961US$ 1 - 1,100MOQ: 1 Set
-
Infrared Reflow Oven Machine,desktop Reflow Oven,smt Mini Reflow Oven,puhui T962cUS$ 1 - 2,800MOQ: 1 Set
1.features
a. This oven solder leadfree paste very well.
b. This oven can connect with PC, easy to input/set/transmit/adjust/save/manage wave data.
c. Many kinds wave input style in control software, easy to set wave.
d. The control software is with graphical display, display the wave intuitively.
e. The control software is with wave printing function, easy to save/manage/analysis the wave data.
f. The control software is with 299 kinds of paste data inside.
g. Adopt stable and highspeed MCU and advanced intelligent temperature measurement technology, temperature in the oven is very stable,exact and even.
h. Add the compensation circuit, make the oven temperature keep stable from different environment
i. This oven is with hot air fan inside, to make the temperature inside more even.
j. The temperature is room temp to 350C, suit for single/double side PCB board and lead/leadfree paste soldering.
k. Friendly humanmachine operation interface, perfect LCD display, very easy to operate.
l. Good database management function.
m. Thermostatic timer function
2.Parameters
drawer area |
306mmX322mm |
Soldering size |
Lead paste: 300*310mm Leadfree paste:260*260mm |
Overall dimension |
404mmX372mmX280mm |
N. Weight |
15.5kg |
Voltage/Frequency |
AC220~230V/50~60Hz |
Power rating |
2300W |
Cycle time |
2~16 min |
Temp rage |
Room temp~350℃ |
