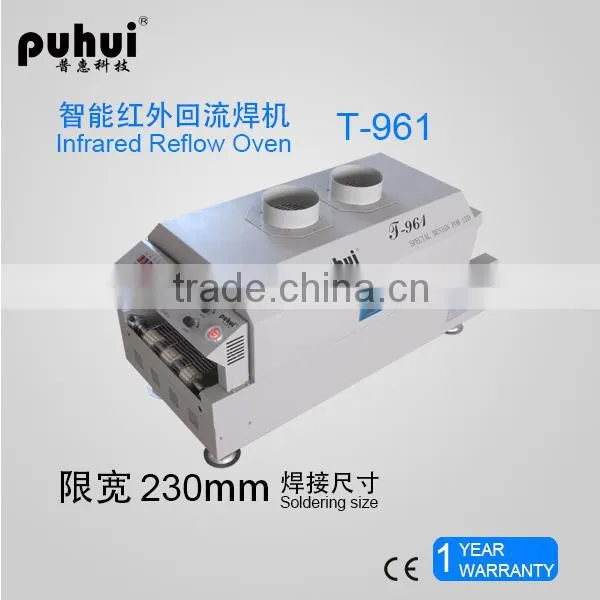

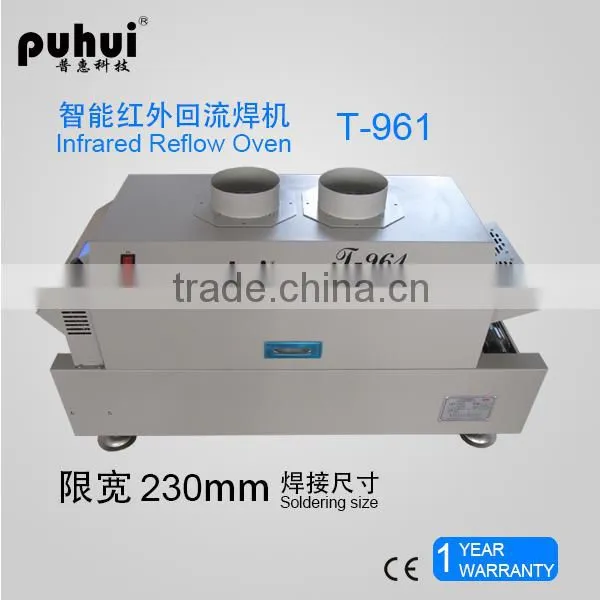

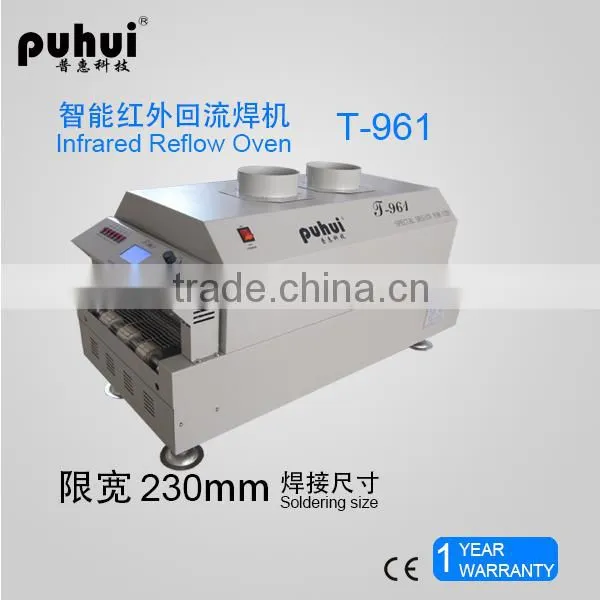

Six Zones Reflow Oven, Infrared Sodering Oven Macnhine,puhuit961

Name: Six Zones Reflow Oven, Infrared Sodering Oven Macnhine,puhuit961
Brand: puhui
SKU: 123104683
Availability: InStock

US$ 1 - 1,100 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

puhui

Model Number:

T-961

Taian Puhui Electric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name puhui

Model Number T-961

Usage PCB solderiing machine

Voltage AC 220V

Weight 70kgs

Dimensions 100x 50 x 45cm

Certification CE

T-961 soldering machine,
Manufacturer Puhui,
infrared reflow oven,
infrared reflow oven,smt production line

Technical parameters

The heating zone quantity - upper3/down3

The heating type - Infrared and hot air

The cooling zone quantity - 1

Maximum width of PCB board - 230mm

The operation direction - From left to right

Transmission type - Net transmission+chain transmission

The speed of conveyer belt - 0-1600mm/min

The voltage - 220V

Power - 1900w

Heating up time - Around 15mins

Temperature control range - Room temperature~300

Temperature control mode - PID

Temperature control accuracy - ±1

PCB temperature distribution balance - ±2

Model	T-961
The heating zone quantity	upper3/down3
The length of the heating zone	730mm
The heating type	IR and hot air heating
The cooling zone quantity	1
Maximum width of PCB board	230mm
The operation direction	left→right
Delivery options	Net transmission+chain transmission
The speed of conveyer belt	0-290mm/min
The power supply	220V 50/60Hz
Peak power	3.5KW
Heating up time	Around 7mins
Temperature control range	Room temperature~300℃
Temperature control mode	PID closed-loop control
Temperature control accuracy	±1℃
PCB temperature distribution deviation	±2℃
Overall dimensions	1000×466×445mm
Machine weight	70KG
