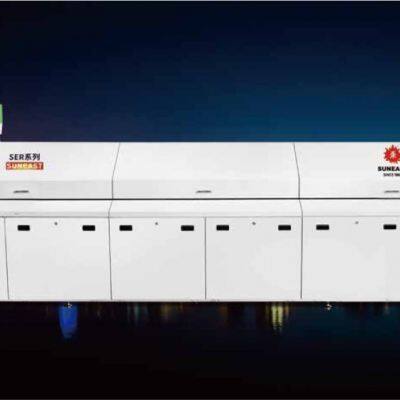

Help CenterSuneast Reflow Soldering Systems SER-708NH
Related Products
-
Suneast Reflow Soldering Systems SER-710NHNegotiableMOQ: 1 Unit -
Suneast Reflow Soldering Systems SER-712NHNegotiableMOQ: 1 Unit
-
Suneast Reflow Soldering Systems SER-710AHNegotiableMOQ: 1 Unit
-
T962 Infrared BGA Automatic Reflow OvenNegotiableMOQ: 1 Piece
-
Infrared Reflow Oven Desk Reflow OvenUS$ 640 - 660MOQ: 1 Set

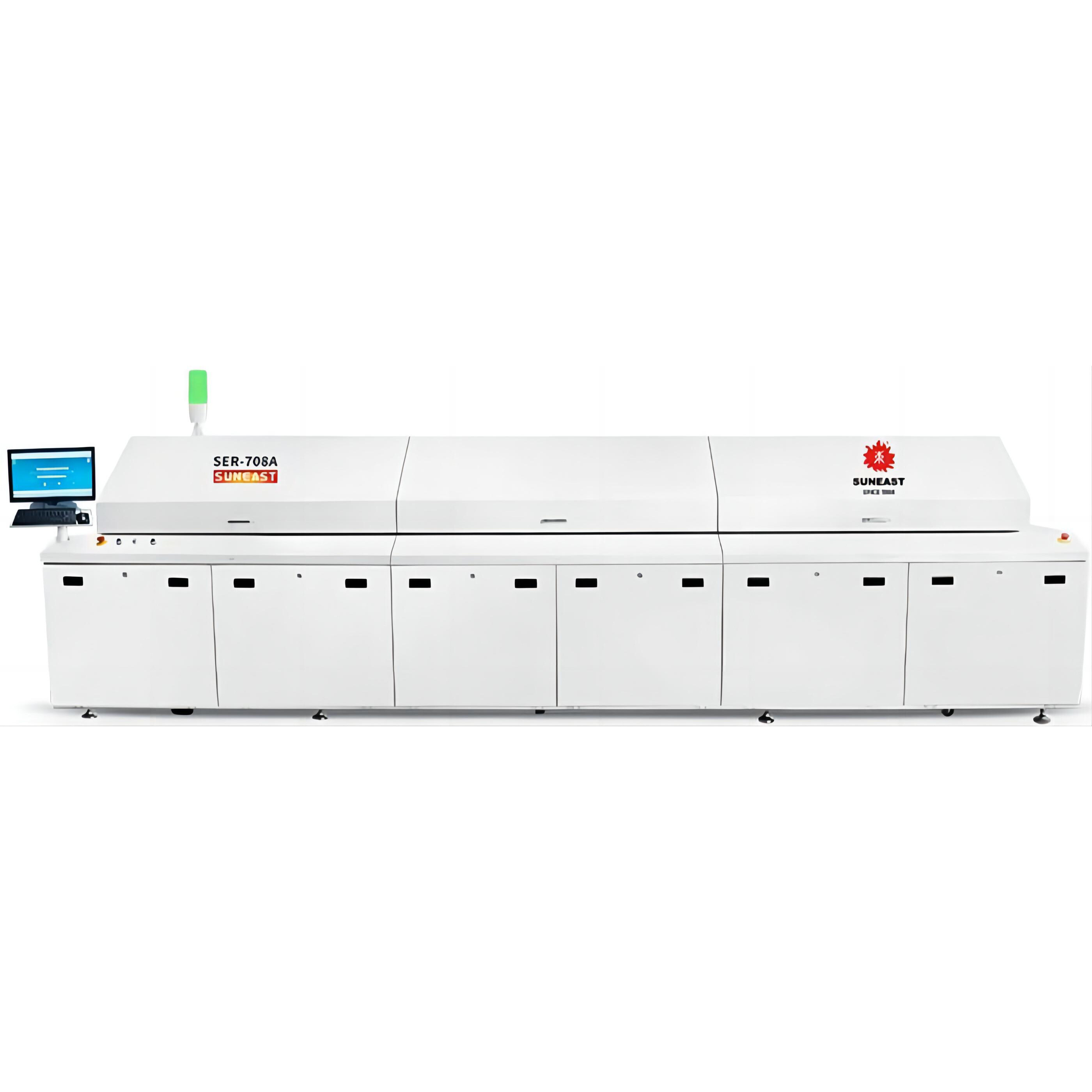

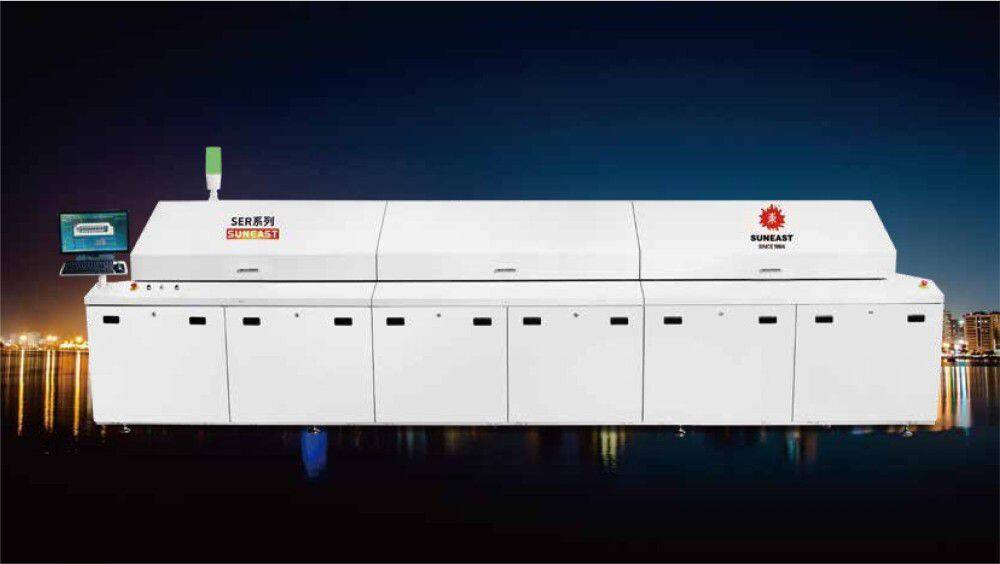

Reflow machine SER SeriesModel:SER-708AH|SER-710AH|SER-712AH

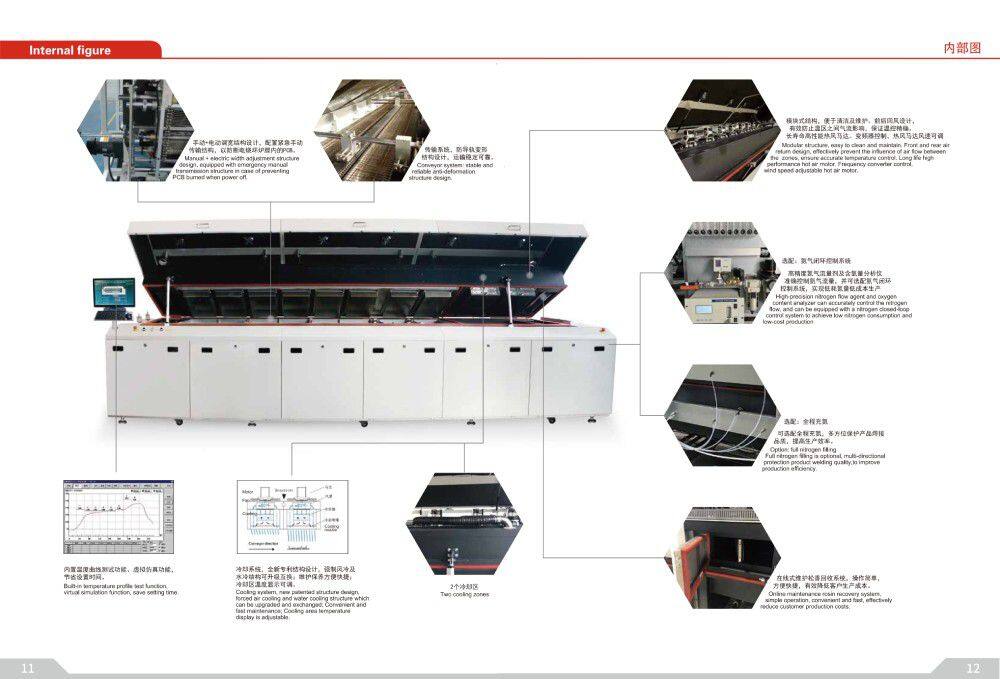

Modular structure， easy to clean and maintain；
Stable and reliable anti-deformation structure design， manual+electric width adjustment；
Front and rear air return design， effectively prevent the influence of air flow between the zones， ensure accurate temperature control；
Full nitrogen filing is optional， multi-directional protection product welding quality；
Can be equipped with a nitrogen closed-loop control system to achieve low nitrogen consumption and low-cost production.

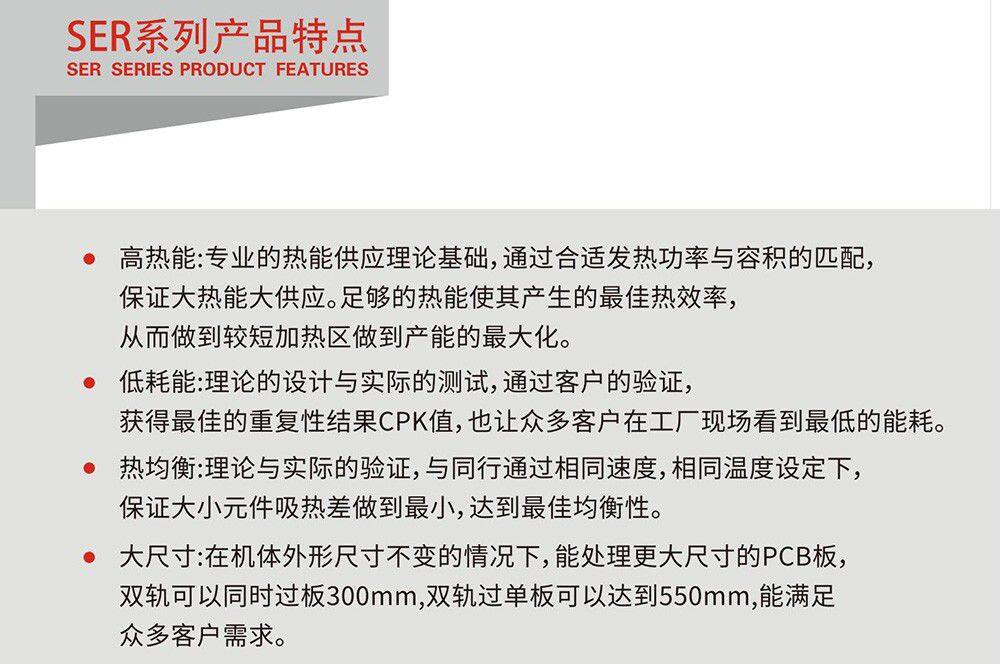

●High heat energy：professional heat energy supply theoretical basis，through matching the appropriate heating power and volume to ensure large heat energy supply.Sufficient thermal energy to generate optimal thermal efficiency， maximize the productivity in short heating zones.
●Low energy consumption：theoretical design and practical testing， through customer verification， obtain the best repeatability results CPK value，get the lowest energy consumption in the factory site.
●Thermal equalization：theoretical and practical verification， ensure to achieve the minimum heat absorption difference between small and large components with the same speed， the same temperature setting，achieve the best equilibrium.
●Large size：can handle larger size PCB in the same size machine； double tracks machine can produce PCBwith300mminwid that the sametime， and PCBwith550mmin width wiht singletrack setting， which can meet the demand of many customers.
| SER series rel low oven main speci lica lions | ||||||||||
| Model No | SER-708AH | SER-708H | 5ER-708NH | SER-710AH | SER-710H | SER-710NH | SER-712AH | SER-712H | SER-712NH | SER-706AH |
| Heating System | ||||||||||
| Heating Zone | 8 Heating Zones，16 Heating moudules | 10 Heating Zones，20 Heating moudules | 12 Heating Zones，24 Heating moudules | 6 Heating Zones，12 Heating moudules | ||||||
| Heating Length | 2950mm | 3670mm | 4350mm | 2230mm | ||||||
| Cooling Type | Double cooling:enforced air cooling/water cooling (Optional:three cooling zones) |
Double cooling:forced air cooling | ||||||||
| Outlet Exhaust Demand,Valume | 2-Φ145， Exhaust demand 15m³/minx 2 | |||||||||
| Conveyor System | ||||||||||
| Product Width | min50mm-max400mm | |||||||||
| Conveying Direction | L→R，R→L | |||||||||
| inlet Height | 900+20mm | |||||||||
| Fixed Rail Side | Front rail Fixed(Option：Rear Rail Fixed) | |||||||||
| Conveyor Type | Chain+mesh belt synchronous transmission | |||||||||
| Cmponent Height | Clearance based on the rail：above 30mm， below 20mm | |||||||||
| Conveying Speed | 300mm-1500mm/min | |||||||||
| Control System | ||||||||||
| Power Supply | AC3Φ，5W,380V,50/60HZ | |||||||||
| Total Power | 57KW | 71KW | 89KW | 45KW | ||||||
| Start up Power | 30KW | 35KW | 40KW | 30KM | ||||||
| Running Power | 7.5KW | 9.5KW | 11.5KW | 6KW | ||||||
| Temperature Range | Room temp to 320℃ | |||||||||
| Control Type | PC+PLC Control System | |||||||||
| Rail Width Adjusting Mode | Electric+Manual | |||||||||
| Temp Control accuracy | ±1℃ | |||||||||
| PCB Temp Deviation | ±1℃ | |||||||||
| Data Storage | Process Data and status stotage | |||||||||
| Power Outage Protection | Equipped with UPS | |||||||||
| Operation Interface | Windows Chinese simplified， English online free switching | |||||||||
| General | ||||||||||

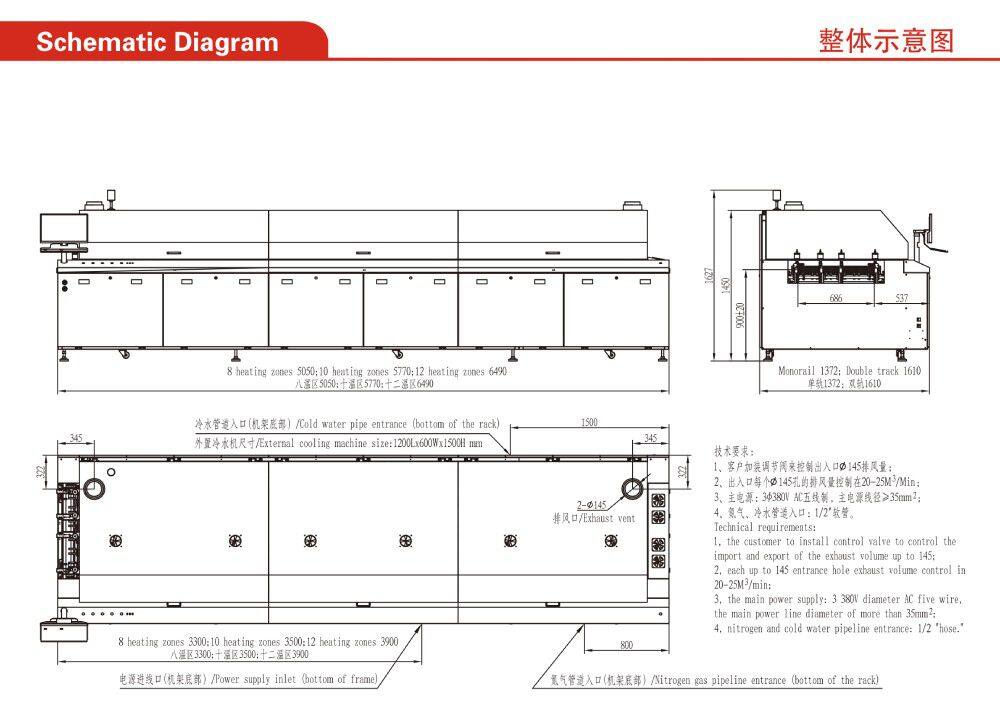

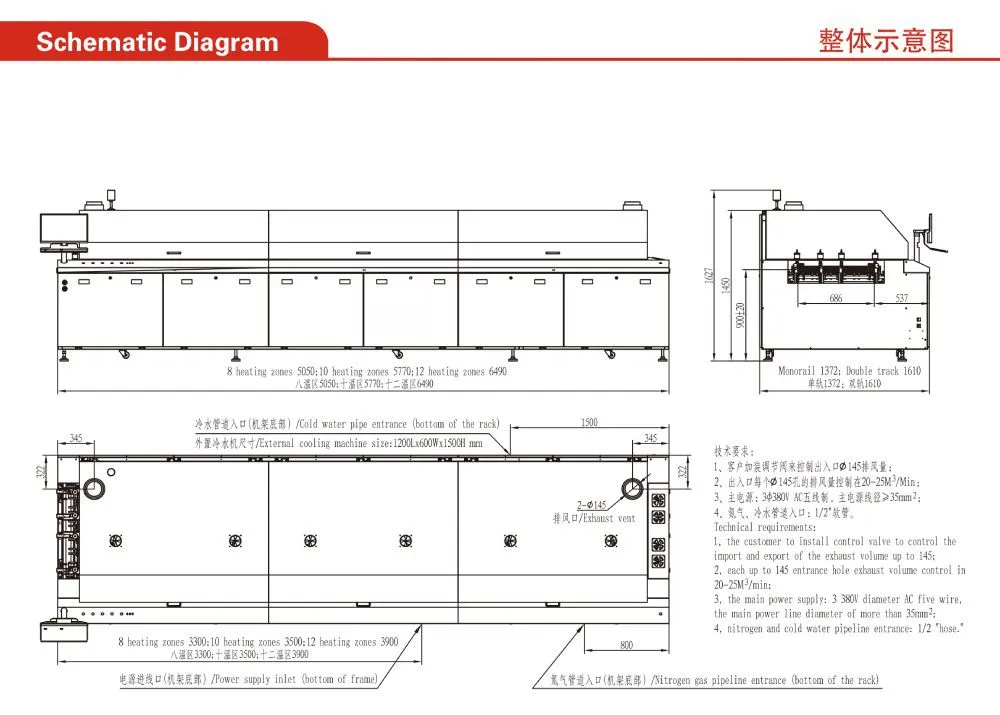

| Dimension（L×W×H) | 5055*1372*1515 | 5775*1372*1515 | 6495*1372*1515 | 4335*1372*1515 | ||||||
| Weight | 2000-2200kg | 2400-2600kg | 2800-3000kg | 1600-1800kg | ||||||
| Color | Bright wrinkled white | |||||||||
