Puhui T962 Mini Size Portable Reflow Oven With After-sale Service
US$ 160 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Puhui
Model Number:
T-962
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Puhui 110v/220v Desktop Reflow Oven, T962a Desktop Reflow SolderUS$ 230 - 270MOQ: 1 Set -
Leadfree Reflow Oven, LED Soldering Machine T-960US$ 1 - 1,299MOQ: 1 Piece
-
Desktop Infrared Reflow Oven,smt Soldering Machine,puhuit962CUS$ 1 - 430MOQ: 1 Set
-
Puhui T962a Leadfree Benchtop Reflow OvenUS$ 230 - 270MOQ: 1 Set
-
Puhui T962a PCB Drawer Reflow OvenUS$ 1 - 499MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
Puhui
Model Number
T-962
Usage
Reflow Oven for PCB
Voltage
220V/110V
Weight
8Kgs
Dimensions
37.5x24x37.5cm
Rated Duty Cycle
90%
Rated Capacity
800W
Current
4A
Certification
CE
After-sales Service Provided
Overseas third-party support available

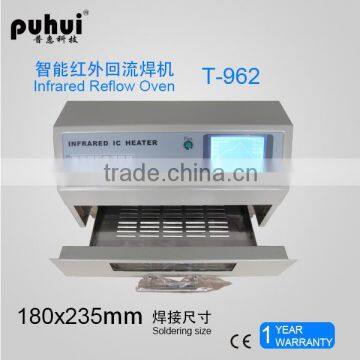

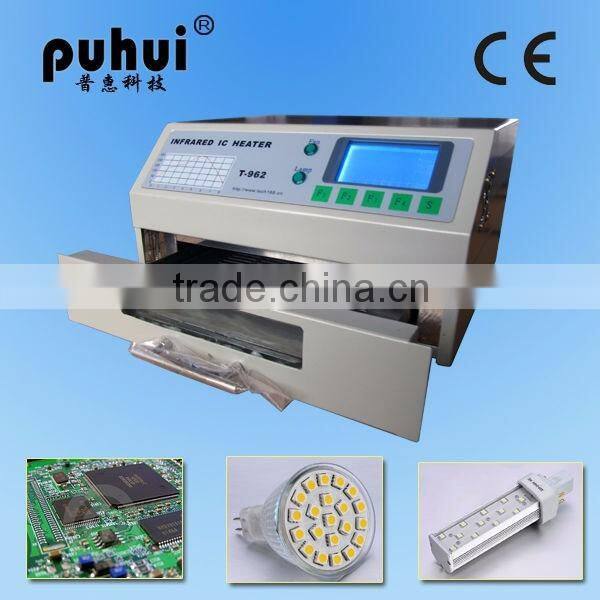

Puhui T962 mini size portable reflow oven with after-sale service
Product Description
Brief bout MiNi reflow oven T962
1.Automatic soldering machine T962 is a micro-processor controlled portable reflow oven. The device is powered by standard 110VAC 50/60HZ (220VAC Model is available).
2.User interface is implemented by way of T962 input keys and an LCD display.
3.Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.
4.This self-contained reflow station allows safe soldering techniques and the manipulation of SMDBAG and other small electronic parts mounted on a PCB assembly.
5.The T962 may be used to automatically re-flow solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

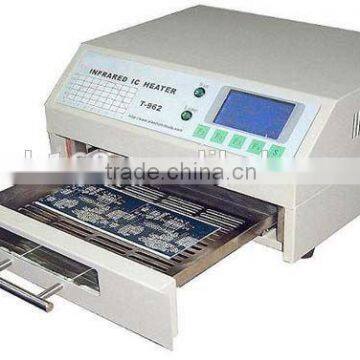

6.A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.
7.The T962 is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles.
FEATURES
1. The T962 is a self-contained Micro-Processor controlled IC Heater and mini solder rework station.
2.Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180×235mm area.
3.Parameters of Eight (8) Soldering cycles are Pre-Defined
4.Soldering cycles are keypad selected and progress displayed on the T962 LCD.
5. A single windowed drawer holds assemblies within the heating chamber,
6.The T962 design is ergonomic, practical and easily operated.
7.The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
8.The T962 is an economical rework solution from single runs to on-demand small batch production.
9.Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
10.The T962 can solder most bosseyed or double-face PCB boards small parts, ie.: CHIPSOPPLCCQFPBGA etc; Can be used to the gum of the product solid, turning the circuit board hot aging, maintaining the PCB board and so on. Be satisfied to the needs of academe, smallorder run and extensively development of enterprise & company
Technical Parameter
Supply Voltage |
AC110V/ 50Hz AC220V /52Hz |
Putout Power |
800W |
Maximum Soldering Area |
180×235 mm |
Temperature Range |
100-350 |
Cycle Time |
18 min |
Parts Inventory
Description |
Quantity |
Illustration |
T962 Main Assembly |
1 |
|
|
Power Cable
110VAC or 200VAC
|
1 |
|
|
5mm Fuse, 10A 250VAC
Fast Blow (Spare)
|
1 |
|
This Manual on CD |
1 |
Certifications
All our mini reflow oven is certified.
About Puhui
We produce mini,middel size leadfree reflow oven machine
Our advantages
1.24 hours online consulting services to address all issues pre and post sale
2. To provide professional technical services team, all kinds of technical problems remote guidance
3. Provide real machine operation video
4. All the machines can be returned for repair
5.Ten-year experience and own brand---Puhui,
6.Eight-year gold supplier on alibaba.
7.Directly sale from factory,gurantee after-sale service.
We have many other infrared reflow ovens, if you are interested, please contact us. Thank you.
