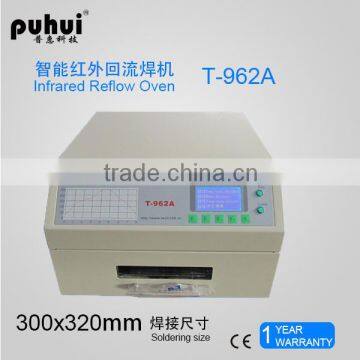

Puhui 110v/220v desktop reflow oven, T962a desktop reflow solder
We are original manufacturer(Puhui Team Headquarters)
supply 100% original product and good price
for PCB,SMT,SMD,LED soldering
8 wave for lead or leadfree solder paste
All product enjoy one year warranty and all life machnical maintenance
Features
1.Micro-processor controlled reflow oven, suit for various soldering of SMD/BGA automatically,
easy operate;
2.Fast infrared and hot air heating, make temperature more accurate and evenness.

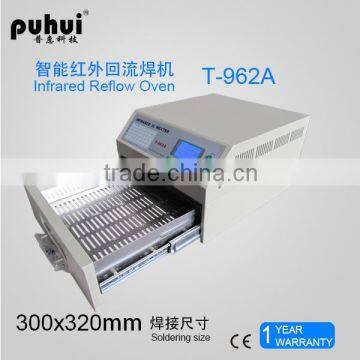

3.Fuzzy temperature control technology, visualization drawer, can see the whole soldering process
very clearly.
4.It can achieve soldering of single and double-sides PCB board.

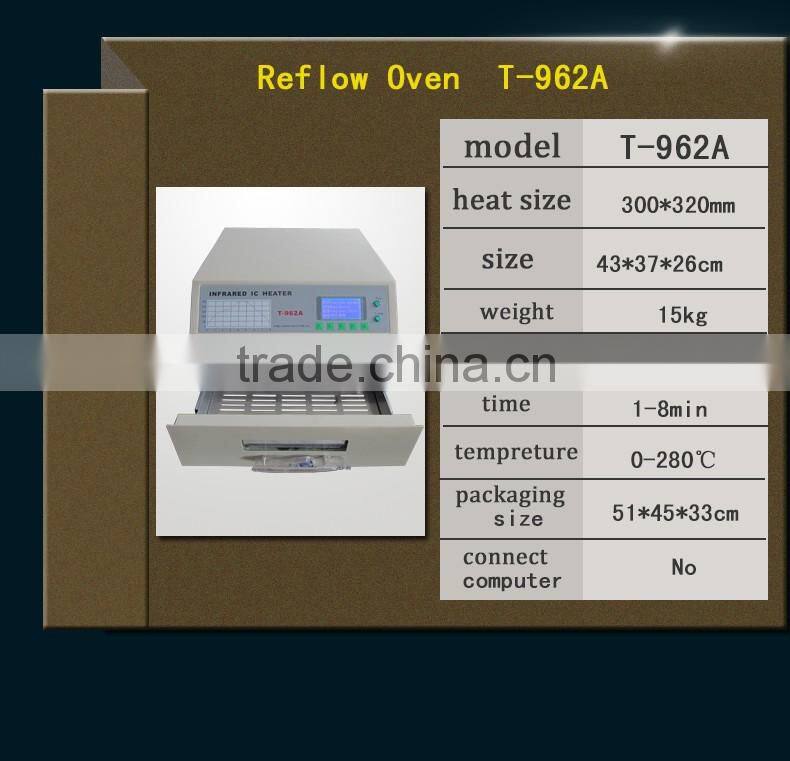

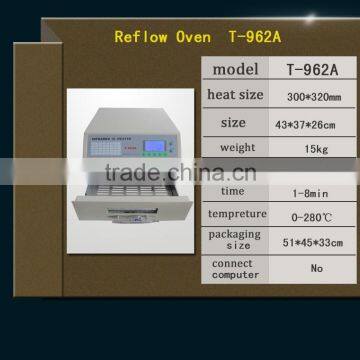

Technical specification for desktop reflow oven
Soldering area: 300*320mm
Overall dimensions: 43*37*26cm
Packing dimensions: 51*45*33cm
Power: 1500W
Cycle time: 1-8 min
Voltage: AC110V-AC220V /50-60HZ
Net weight: 12.5Kgs
Gross weight: 15Kgs
Note--T962a is 110v or 220v reflow oven machine
Advantages of T962a desktop Reflow Oven
Large infrared soldering area: 300*320mm (T-962A)
Eight soldering waves
Special heat up and temperature equalization
Big power of energy efficient Infrared heating and air circulation to re-flow solder.
Ergonomic design, practical and easily operated
Large number of available functions
Solder most single or double-sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc.
It is the ideal rework solution from single runs to on-demand small batch production.
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
T962a desktop reflow oven is packed with professional carton.
Our company has worked on PCB benchtop reflow oven for ten years and own excellent after-sale service system.
There are many other desktop reflow ovens,they are different in soldering area. If you'd like know more about them, please click.
| Benchtop oven Model | Soldering area(mm) |
| T962 | 180*235 |
| T962c | 600*400 |
| T937 | 306*322 |
| T937m | 350*400 |
We also welcome the friends who would like be our agents.
