Specifications
T960 SMT desktop reflow oven- for LED,SMD,SMT reflow soldering
- HOT sale
- factory price
- CE
SMT IR reflow oven,infrared soldering station,desktop reflow oven,puhui t960,LED reflow soldering machine,taian
Technical parameters
The heating zone quantity - upper3/down2
The length of the heating zone - 960mm
The heating type - Infrared and hot air
The cooling zone quantity - 1
Maximum width of PCB board - 300mm
The operation direction - From left to right
Transmission type - Net transmission+chain transmission
The speed of conveyer belt - 0-1600mm/min
The voltage - 380V/220V
Power - 4500w
Heating up time - Around 15mins
Temperature control range - Room temperature~300
Temperature control mode - PID
Temperature control accuracy - ±1
PCB temperature distribution balance - ±2
Overall dimensions - 1450×630×470
Machine weight - 90KGS

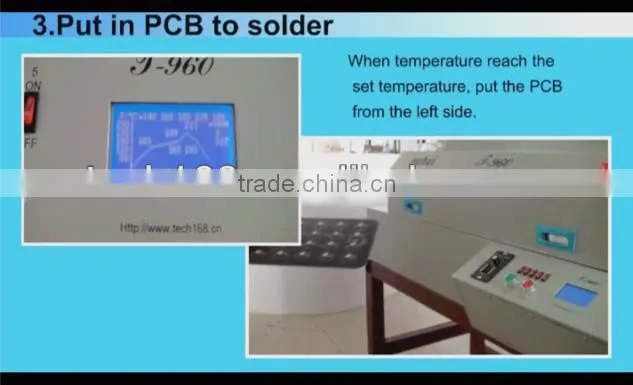

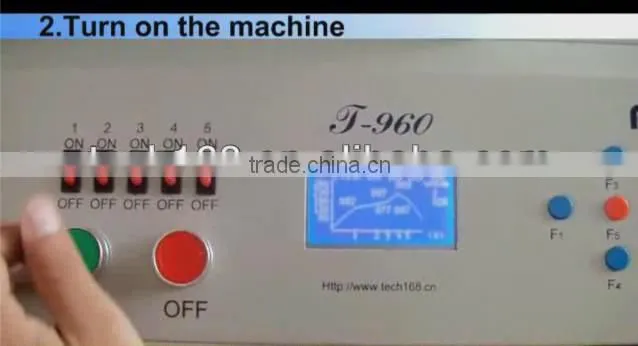

Operation
reflow oven T-960 Features
Infrared and hot air heating technology
uninterrupted soldering the LED and BGA components.
Crawler-type and five temperature zones heating systems
each zone uses independent PID controlling and up-down heating type
Eight temperature waves
Programmable technology
Thermocouple temperature measurement, compensation circuit
PID intelligent temperature control technology
Imported frequency conversion motor
1:150 imported turbine speed reducer
speed adjustable range 0-1600mm/min.
Independent wheel structure and special stainless steel strut
speed precision can reach ±10mm/min.
Easy operate, LCD display, no need connect with the PC
Good build quality, easy transportation or storage.
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
We are the original manufacturer of T960 reflow oven, pls feel free to contact us if you have interest in this oven, thank you
