Specifications
desktop reflow oven T-960-High quality
-good price
-best service
-CE
desktop reflow oven t960, led moving-belt reflow wave oven,ovens smt, IR station,mini reflow oven

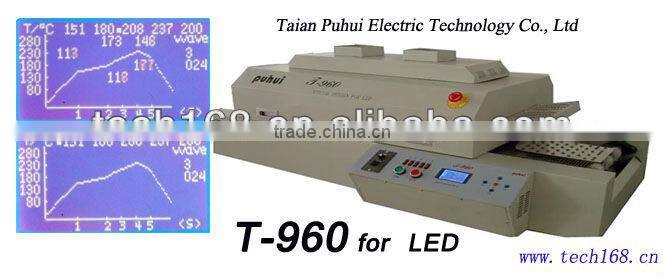

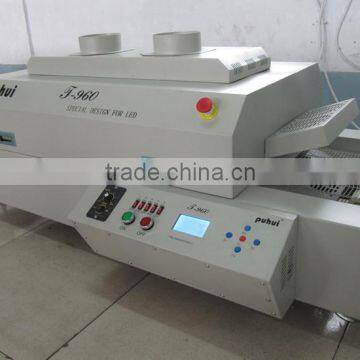

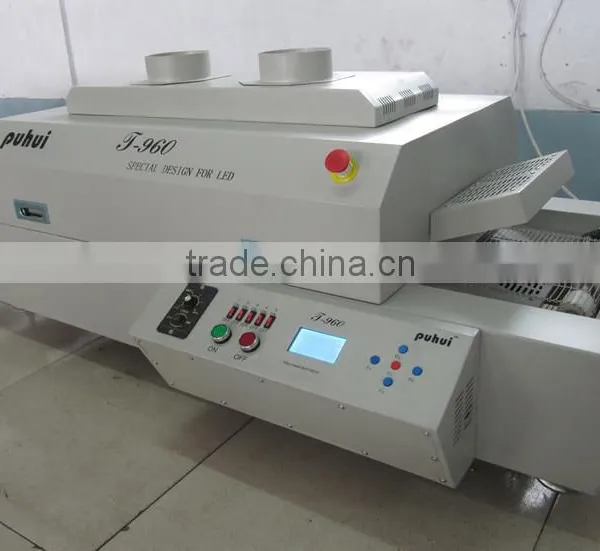

T-960 infrared reflow oven
soldering machine for led
smt soldering machine
bga chips soldering machine
1. Infrared and hot air heating technology, special design wind wheel, speed stability, temperature evenness,
suit for uninterrupted soldering the LED and BGA components.
2. This machine is with the crawler-type and five temperature zones heating systems,
and each temperature zone uses independent PID controlling and
up-down heating type, can make the inside temperature more accurate and evenness,
just take about 20 minutes from the room temperature to the working temperature.
3. Intelligent temperature wave heating type, eight temperature waves can satisfy various welding technological requirements.
4. Programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Thermocouple temperature measurement, compensation circuit, makes the temperature measurement more accurate.
6. PID intelligent temperature control technology, avoid the IC or circuit board damaged due to the rapid or uninterrupted heating up, make the whole welding process more scientific safety.
7. Transmission system adopts imported frequency conversion motor, equip with 1:150 imported turbine speed reducer,
smooth operation, speed adjustable range 0-1600mm/min.
8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly,
speed precision can reach ±10mm/min.
9. Independent cooling zone, ensure the PCB board cooling down.
10. Very easy operate,

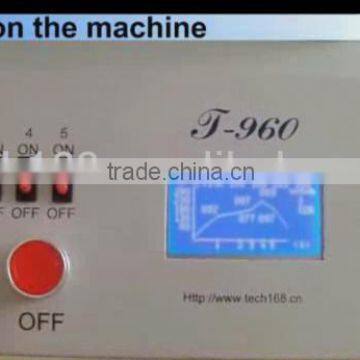

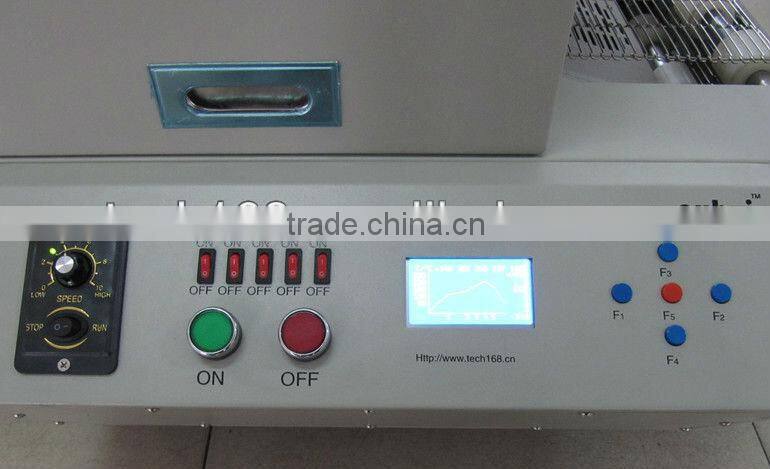

perfect LCD display, no need to connect with the PC, can see the whole heating process very clearly.
11. Good build quality, light weight, big working area, easy transportation or storage.
12. Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
13. Delivery - safe packing and fast dlivery by air express.
Model |
T-960 |
The heating zone quantity |
upper3/down2 |
The length of the heating zone |
960mm |
The heating type |
Infrared and hot air |
The cooling zone quantity |
1 |
Maximum width of PCB board |
300MM |
The operation direction |
From left to right |
Transmission type |
Net transmission+chain transmission |
The speed of conveyer belt |
0-1600mm/min |
The power supply |
380V/220V |
Power |
4.5KW |
Heating up time |
Around 15mins |
Temperature control range |
Room temperature~300°C |
Temperature control mode |
PID |
Temperature control accuracy |
±1°C |
PCB temperature distribution balance |
±2°C |
Overall dimensions |
1450×630×470 |
Machine weight |
90KGS |
*** We are manufacturer in China, pls feel free to contact us for more details. Thanks
