Germany Autoclaved Aerated Concrete(aac )sand Block Making Machine

germany autoclaved aerated concrete(aac )sand block making machine

Delivery Detail:  Within 5 months

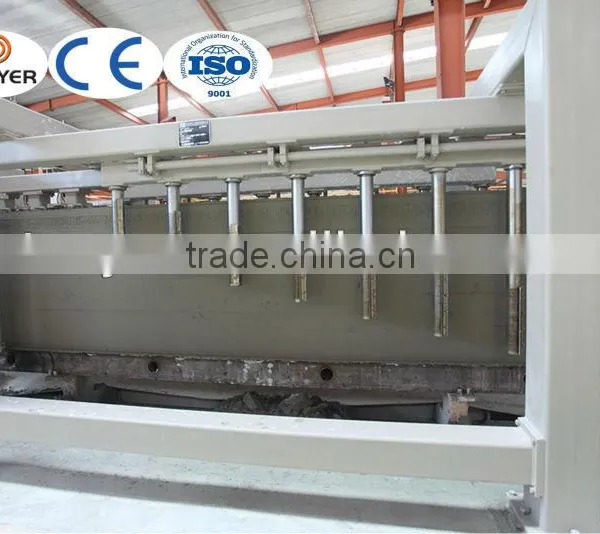

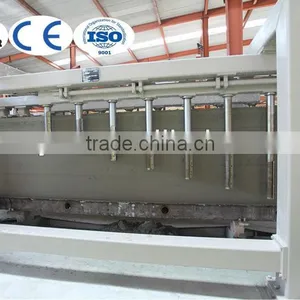

Cutting Set

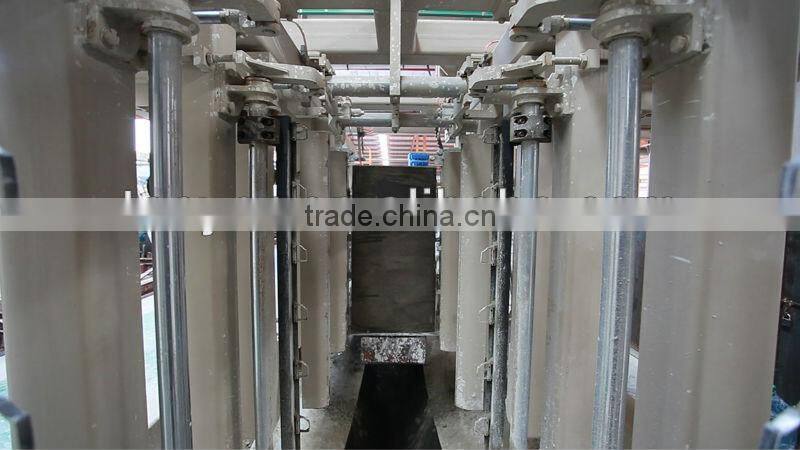

One set cutting machine consists of one horizontal cutter, one vertical cutter, one cutting cart, and specific rail for cutting cart. (tongue and groove making device, hand-holding hole making device and vacuum sucking cover are optional).

Cutting wires on horizontal cutter are fixed on guide pillars while on vertical cutter each wire is tensioned by compressed air cylinder.

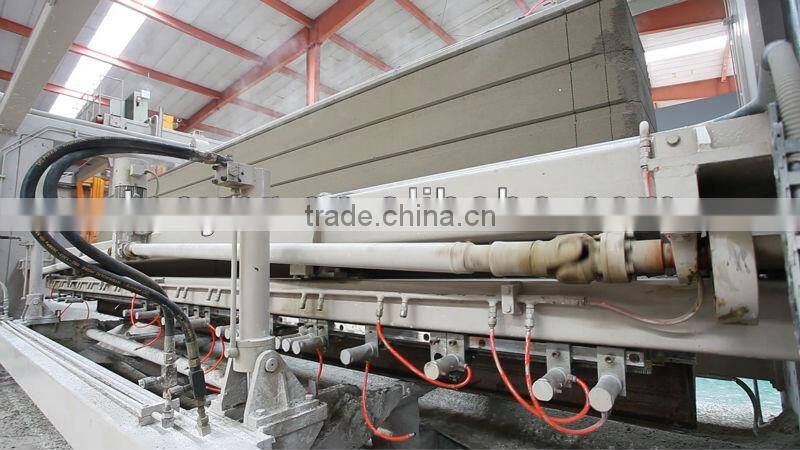

After the tilting hoister puts the green cake on the first cutting cart then it carries the green cake through horizontal cutter. When the cake arrives vertical cutting section, it will be jacked up to reduce vibration and cut on vertical cutting machine. Through the driving motion of chain, the gear box makes the cutting frames move up and down meanwhile the two cutting frames swing with equal force from both sides.

The air cylinder tension device drives the cutting wire to do reciprocating motion, and thus form transverse cutting action.

TEEYER sells products all over the county and exports to foreign countries such as Germany, American, England, Korea, Japan, Singapore, Russia, Indonesia and United Arab Emirates and so on.

1. We own advanced technicians and ensure supply of enough accessories;
2. We have perfect management and regular tour visit to our customers;
3. The Technical Service Development makes regular tour check and training upon customers;
4. We have training system to rise up customer’s technique;
5. We promise one year warranty time for quality.

TEEYER AAC Block Plant Advantages:

1. Experience:  specialized in AAC industry since 1989, occupy the biggest market share with over 700 plants in domestic market and 70 plants abroad China.
2. Customer:  31 sets in India, 10 sets in Middle East, 10 sets in Indonesia, 6 sets in Vietnam, 6 sets in Russia, 2 plants in Thailand, and etc.
3. Technology:  cooperate with Germany company, use the same type cutting machine as Wehrhann.
4. Patents:  have patent for cutting machine, separator, side plate and mould.
5. After-sales service:  advanced technicians, enough accessories, regular tour visit, training system, one year warranty time for quality.

TEEYER AAC Block Plant Reference:

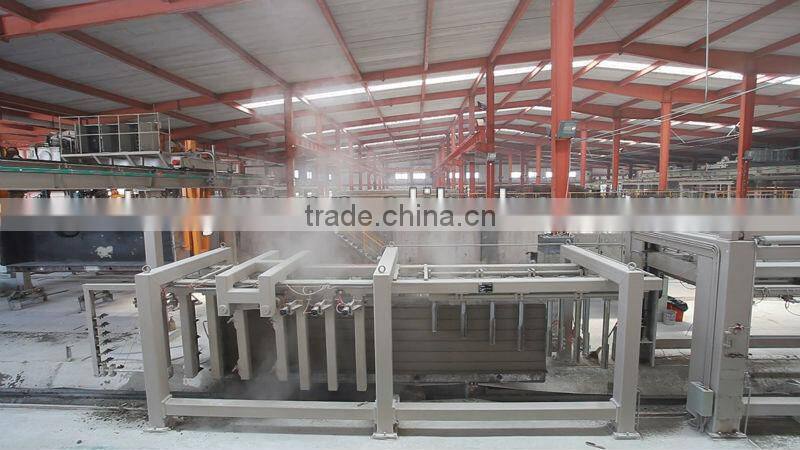

Working Live-Action:

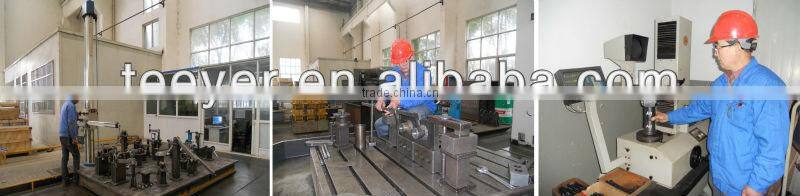

Quality Control:

 Cutting Specification:

Certifications:

Group Photos with Customers:

Introduction of AAC Block & Panel Plant:

AAC(Autoclave Aerated Concrete) is a new type building material that the raw materials are siliceous materials(fly-ash, sand, slag), calcareous materials(lime, cement and gypsum), and Aluminium powder. AAC product has been widely used in industrial and civil construction.

Advantages & Features of AAC Block & Panel  Plant:

1. Light Weight:350 – 700 kg/m³
2. High Intensity: 3.5~10.0Mpa
3. Good Sound Insulation:2 dB bonus
4. Good Thermal Insulation Property: 0.1~0.20W/(m · k)
5. Great energy efficiency
6. Excellent fire resistance
7. Outstanding structural performance

Production Engineering of AAC Block & Panel  Plant:

1) The preparing of the raw material;

2) Batching, Mixing, and Pouring;

3) Cutting and grouping;

4) Autoclaving and finished products;

5) Side plate back, mould assembling and mould oiling.

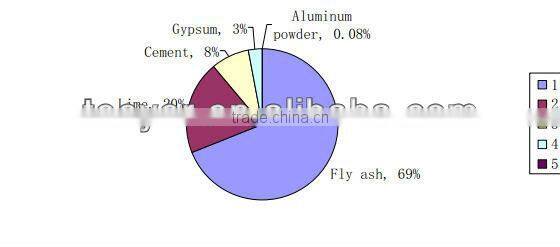

Raw Material:

Flyash AAC Brick Series

Sand AAC Brick Series
