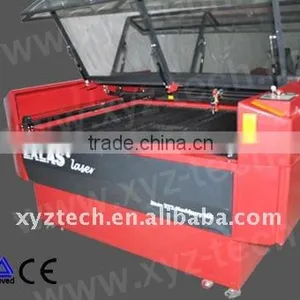

Powerful1613 Laser Cutting Machine

Name: Powerful1613 Laser Cutting Machine
Brand: exlas
SKU: 123099187
Availability: InStock

Jinan XYZ Machinery LLC

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Laser Type:

CO2

Place of Origin:

Shandong, China

Brand Name:

exlas

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Place of Origin Shandong, China

Brand Name exlas

Model Number 1613

Specifications

co2 laser acrylic cutter or engraver EXLAS 1613
1.Aoto-focus
2.80W-150W
3.Up-down moving table
4.Easy control

co2 laser acrylic cutter or engraver EXLAS 1613

Machine Description	EXLAS-1613 Laser Engraving and Cutting Machine
Machine Performance:
Laser-type	Hermetic and detached CO2 laser tube
Laser-power	150W Reci laser tube with 10,000 lifespan(100W or 180W for option)
Cooling Mode	Circulating-water-cooling
Power Adjustment	0-100% controlling, no segment and adjusting by software
Machine Control and Drive	Speedy DSP controlling, stepper motor
Max Engraving Speed	48000mm/min
Max Cutting Speed	500mm/min(when cutting 10mm thick of acrylic)
Repeating Location	0.01mm
Minimum Character	Chinese character 1.5mm, crisscross-row 1mm
Max Power	1800W
Adjustable Up-down Distance of Laser Head	40mm
Working Travel Area	1600x1300mm, 1650mm width with infinity material-feeding
Table Area	1650x1350mm
Up-down Range of Working Table	Mechanical 260mm
Working Voltage	AC220V 50Hz
Working Environment	Temperature: 0-45oC, Humidity: 5%-95%, and congeal-water removed
Controlling Software Language	English, Simplified Chinese, Traditional Chinese and procuring of multi-languages
Dictate Format	.plt,.dst,.dxf,.bmp,.dwg,.ai,*las, Support AutoCAD,CoreDraw direct outputting

Body Dimension (LxWxH)	2200x1680x1300mm
Packaging Dimension (LxWxH)	2320x1900x1450mm
Packaging	Wooden box
Gross Weight	564kg
Machine Color	Customizable
Delivery Time	15 days
Payment	T/T

Optional Equipment	Rotary attachment
	Motorized up-down table
	Water-cooling unit
	Red-light position
	Vacuum table
	DSP Off-line operation with usb flash
