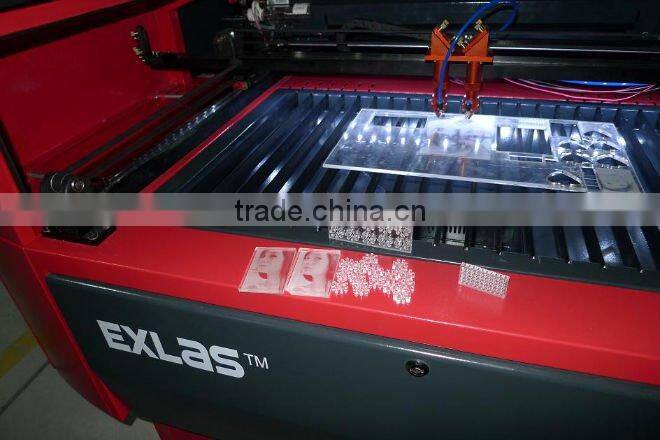

NEWEST EXLAS Laser Cutter 1280

Specifications

Features of laser machinary:

1) Working Travel Area: 1200 x 800mm,1250mm width with infinity material-feeding

2) Laser power: 80W (100W or 150W for option)

3) Laser type: carbon dioxide laser tube

4) Max Engraving speed: 12000mm/min

5) Max Cutting speed: 500mm/min (when cutting 10mm thick of acrylic)

6) Resetting positioning accuracy: <0.015mm

7) Cutting depth: acrylic 0-25mm

8) Min. shaping character: Chinese character 1.5mm, crisscross-row 1mm

9) Power supply: 220V±10% 50Hz or 110V±10% 60Hz

10) Gross power: 1,800W

11) Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD

12) Graphic format supported: *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support

13) Engraver for curve surfaces: we can add a Rotary attachment on the laser engrave/cutting machine, then the machine can engrave on cylinder

14) Circulating-water-cooling: yes

15) Up-down Range of Working Table: Mechanical 260mm (up and down by hand)

16) Laser tube (life hours): 1,500hours

17) Equipment dimensions (mm): 1800x1180x1100mm

18) Assistant equipment: water pump, exhaust fan, aluminum alloy worktable

19) Optional spare parts: Rotary system, Motorized up-down table, Cooling water system, Red-light position, DSP Off-line operation with usb flash

20) Recommended spare parts / consumables: laser tube and lens

21) English LCD

22) USB interface

23) Supports CAD and CorelDraw output directly
