Specifications

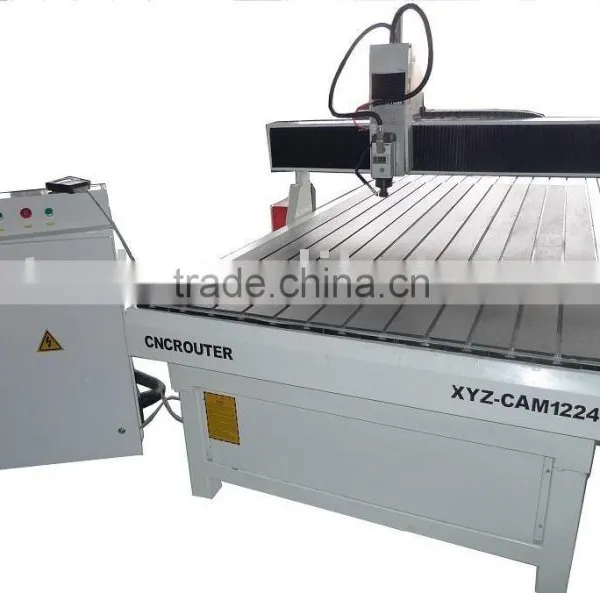

CNC Router XYZ 1224 is best choice for small piece, Medial size woodworking, it is very good for advertising working.The machine has the characteristic of big rigid ,high speed and precision. It is widely used to process various advertisement plates, bill plates, breastplate, construction model ,acrylic, sucking plastic mould making ,wooden handicraft, and etc.
Model |
XYZ-1224 |
|
Working Area |
1,200x2,400x120mm |
|
Spindle Motor |
2.2KW Inverter-driven spindle motor cooled by water (or air for option) |
|
Working Mode |
Stepper motor |
|
Control System |
DSP(128MB) or PCIMC control system |
|
Drive Mechanism |
Germany imported ballscrew for x,y,z axis |
|
Table Surface |
T-slot extrusions |
|
Frame |
Cast aluminum |
|
Motion Positioning Accuracy |
Approx 0.02/300mm |
|
Repositioning Accuracy |
Approx 0.01mm |
|
Max Motion Speed |
7000mm/min |
|
Max Engraving Speed |
5000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Engraving Tools |
3.175mm, 4mm 6.00mm |
|
Dictate Formate |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
|
Operating Voltage |
AC220/50Hz |
|
Software |
Type3 original with Dongle or Wentai /ARTCAM/CAXA |
|
Packing Size |
2800x 1400x 1500mm |
|
Net Weight |
510kg |
|
Gross Weight |
560kg |
|
Guarantee: |
||
One year from the date of commissioning |
||
Optional Parts |
Dust Collecting System |
|
Mist Sprayer & Flume | ||
DSP System w/Portable Control Pad (128MB) | ||
CNC Router XYZ 1224 is best choice for small piece, Medial size woodworking, because of the humanity design, it is very good for advertising working.
We use accurate Taiwan Hinwin linear for all three axis, with options like water slot, mist spray system...etc.
With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign mading, wood artwork.
All materials for Sign making, even for wood working, molding.
