Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Multiheads Cnc Router With Italy Spdinle 1325
Multiheads Cnc Router With Italy Spdinle 1325
US$ 8,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Desktop Cnc Router for Acrylic Plastic Pvc Mould MDF, XYZ 00404US$ 2,500 - 4,500MOQ: 1 Set -
Hot-sales Mini CNC Machine for PCB,aluminium & CopperXYZ-0404US$ 1,800 - 2,500MOQ: 1 Set
-
Desktop Cnc Router Cutter 4040US$ 2,000 - 2,700MOQ: 1 Set
-
Desktop Cnc Router for Acrylic Plastic Wood Mdf, XYZ 00404US$ 2,500 - 4,500MOQ: 1 Set
-
Factory Supply!!!Cheap and Good Quality 1200*2400mm CNC Router 1224US$ 3,000 - 6,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
XYZ
Model Number
1325
Voltage
380V/50Hz
Power(W)
6kw
Dimension(L*W*H)
2200*3400*1950
Weight
1100kgs
Certification
CE, FDA, ISO,POCC
Warranty
one year
After-sales Service Provided
Overseas service center available
Specifications
Multiheads cnc router with italy spdinle 13251 Strong cast steel tube frame
2 3.0 kw hsd spindle
3 step system
4 DSP handle

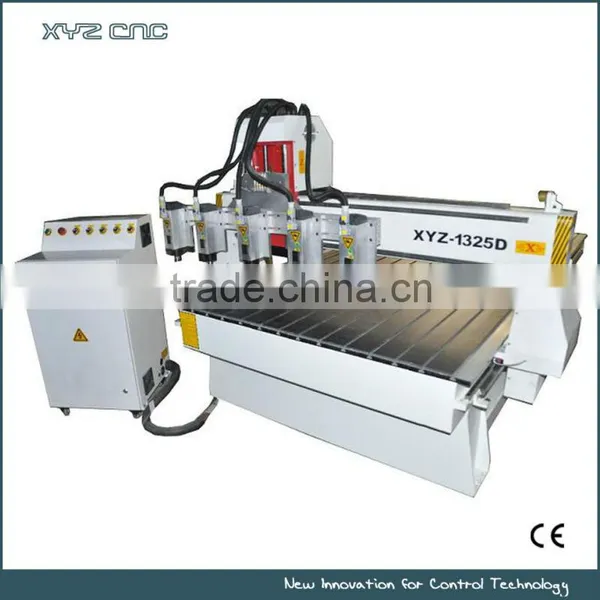

Multiheads cnc router with italy spdinle 1325
XYZ1325 wood cutting engraving CNC Router is widely used to cut and engrave ABS, acrylic, HDPE, polycarbonate, PVC, UHMW and more), fiberglass composites, as well as other
engineered products including metal composites, phenolics, and more. XY-1325 CNC
Router is popular in woodworkers, digintal printing finishing, signs and graphics,
constructionand many more.
XYZ-1325 CNC Router machine configuration:
| No. | Description | Parameter |
| 1 | X, Y, Z working area | 1300 X 2500 X 300 mm |
| 2 | Table Size | 1380×2580mm |
| 3 | Machine Bed Structure | Welded Steel tube frame |
| 4 | Bed type / Work Holding | T-Slot ( Vacuum for option ) |
| 5 | X, Y ,Z Structure | Ball screw transmission &Linear guide rail |
| 6 | Resolution Working Accuracy | ±0.01mm |
| 7 | Reposition Accuracy | ±0.01mm |
| 8 |
Spindle Type |
Chinese water cooling 1.5KW/2.2KW/3.0KW or Italian HSD air cooling 1.5KW/3.0KW |
| 9 | Spindle Speed | 24000rpm |
| 10 | Inverter | Taiwan Delta inverter/Chinese Fuling |
| 11 | Drive Motors | Stepper /Servo system |
| 12 | Max. Power (without spindle) | 2.0KW |
| 13 | Max. Working Speed | 7000 mm/min |
| 14 | Max. idling speed | 10000 mm/min |
| 15 | Working Voltage | AC220/50Hz |
| 16 | Interface | Windows PC with PCI-card |
| 17 | Operating System | NC-Studio PCI control |
| 18 | Command Language | G code, *.u00, *.mmg, *.plt/HPGL/NC |
| 19 | Software | Type3/Artcam |
| 20 | Working Environment | Temperature: 0-45°C, Humidity30% - 75% |
| 21 | Packing Size | 3700x1900x1700mm |
| 22 | N.W. | 1100kg |
| 23 | G.W. | 1300kg |

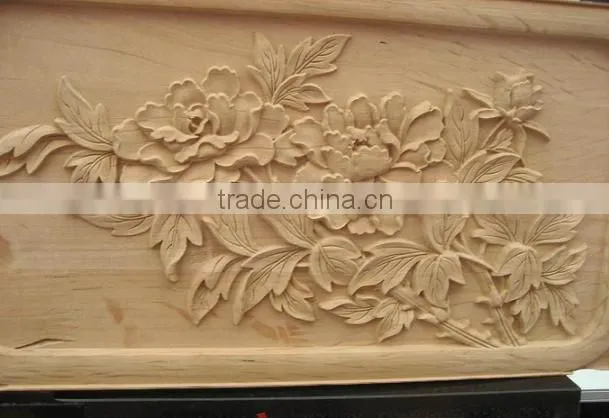

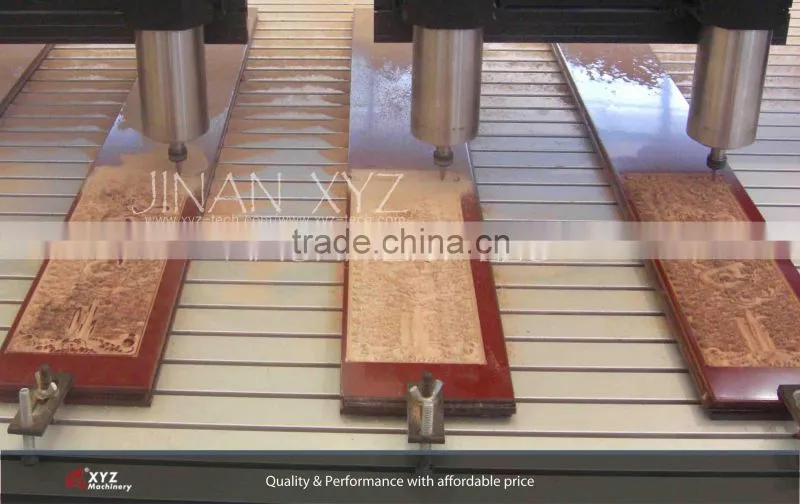

Multi heads Sample
Packing and shipping photo
