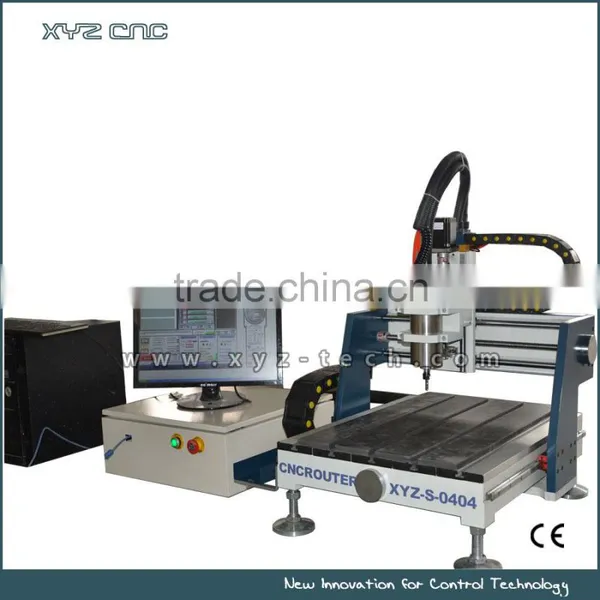

Desktop Cnc Router for Acrylic Plastic Pvc Mould MDF, XYZ 00404
US$ 2,500 - 4,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot-sales Mini CNC Machine for PCB,aluminium & CopperXYZ-0404US$ 1,800 - 2,500MOQ: 1 Set -
Desktop Cnc Router Cutter 4040US$ 2,000 - 2,700MOQ: 1 Set
-
Desktop Cnc Router for Acrylic Plastic Wood Mdf, XYZ 00404US$ 2,500 - 4,500MOQ: 1 Set
-
Factory Supply!!!Cheap and Good Quality 1200*2400mm CNC Router 1224US$ 3,000 - 6,000MOQ: 1 Set
-
Hot Sale Jinan Advertising/wood Cnc Router 1224US$ 3,000 - 6,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
XYZ
Model Number
XYZ 0404
Voltage
220V/50Hz
Power(W)
2.2KW
Dimension(L*W*H)
900x900x900
Weight
N.W: 80KGS G.W: 100KGS
Certification
CE, FDA
Warranty
1 year warranty
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Desktop CNC Router, XYZ04041 T-slot table
2 1.5KW water/air-cooled spindle;
3 step system(servo for option)
4 DSP handler
XYZ CNC Router models and working size:
| XYZ Router all Model | Machine working size |
| XYZ2030 | 3600*2500*1650 |
| XYZ1530 | 3600*2300*1650 |
| XYZ1325 | 3050*1940*1650 |
| XYZ1224 | 2900*1900*1500 |
| XYZ1212 | 1700*1700*1500 |
| XYZ6090 | 1400*1100*1500 |
| XYZ4040 | 8080*800 |
| Special size | Customized |
XYZ-0404 Desktop CNC Router main features:
1) Cast iron frame is more durable without distortion that ensures a lasting and stable use
2) Taiwan TBI Ball Screw Transmission with original screw nut, high precision.
3) High-quality 2-phase Stepper Motor and Driver ,high Torque Hybrid, low reduce noise, stable.
4) High speed air/Water-cooled spindle 1.5kw or 2.2kw.
5) DSP handler
XYZ-0404 Desktop CNC Router application:
1.Signs and sinage making
2.decorations in-door amd out-door
3.Artworks processing
5.Acrylic cutting
6.A multi-use in advertising
XYZ0404 Desktop CNC Router machine configurations:
| No. | Description | Parameter |
| 1 | X, Y, Z working area | 400 X 400 X 90 mm |
| 2 | Table Size | 450×640mm |
| 3 | Machine Bed Structure | Cast steel table frame |
| 4 | Bed type / Work Holding | T-Slot & Vacuum |
| 5 | X, Y Structure | Round rails and TBI ball Screw |
| 6 | Z Structure | Linear guide rail (Taiwan Hiwin )& Ball Screw |
| 7 | Resolution Working Accuracy | 0.01mm |
| 8 | Reposition Accuracy | 0.01mm |
| 9 | Spindle Type | 1.5KW/2.2KW Water-cooling |
| 10 | Spindle Speed | 24000rpm |
| 11 | Inverter | Chinese Fuling |
| 12 | Drive Motors | Stepper |
| 13 | Max. Power (without spindle) | 1.5KW |
| 14 | Max. Working Speed | 5000 mm/min |
| 15 | Max. idling speed | 7000 mm/min |
| 16 | Working Voltage | AC220/50Hz |
| 17 | Interface | USB port |
| 18 | Operating System | DSP handler |
| 19 | Command Language | G code, *.u00, *.mmg, *.plt/HPGL/NC |
| 20 | Software | Type3/Artcam |
| 21 | Working Environment | Temperature: 0-45°C, Humidity30% - 75% |
| 22 | Packing Size | 900x900x900mm |
| 23 | N.W. | 80kg |
| 24 | G.W. | 100kg |
