Specifications
mini cnc machine:1.high precision,high speed
2.Taiwan TBI Ball Screw
3.Air/Water-cooled spindle
4.Ncstudio PCI control

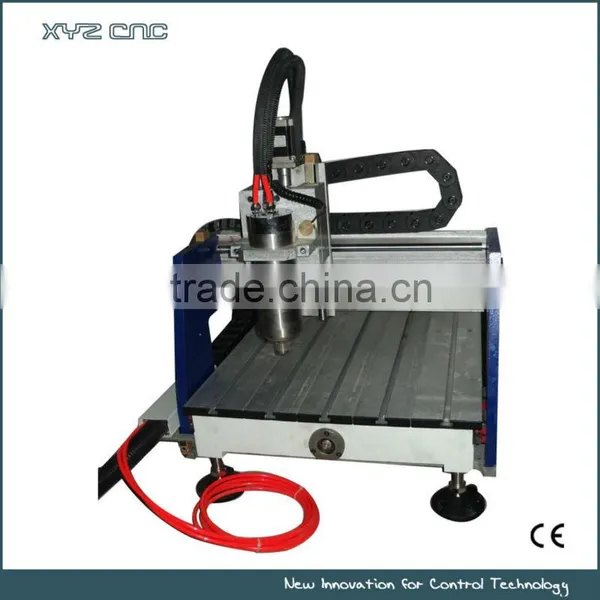

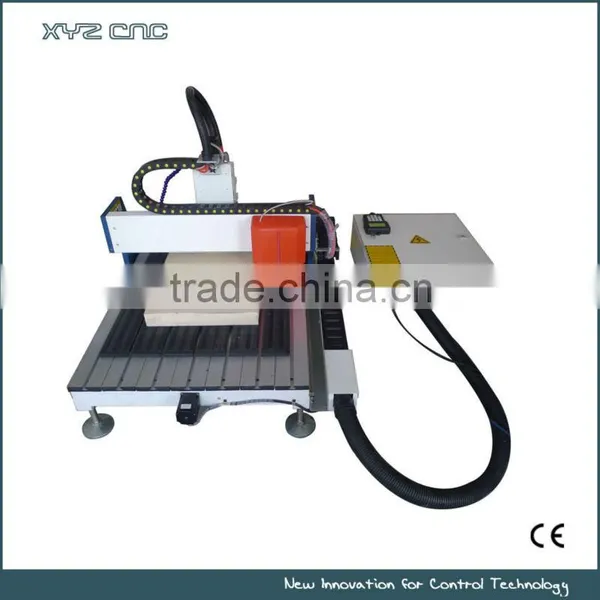

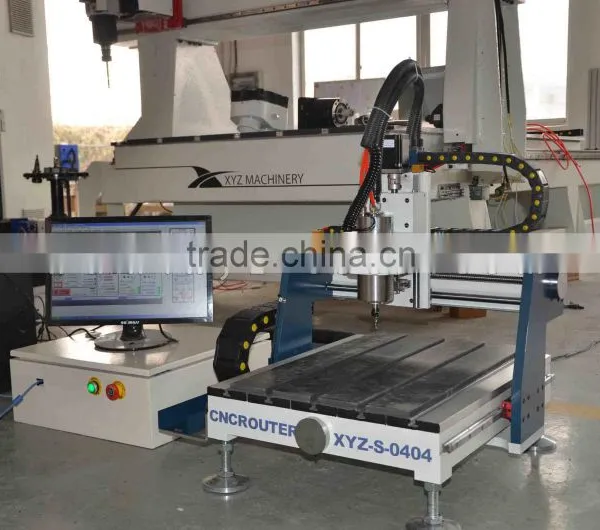

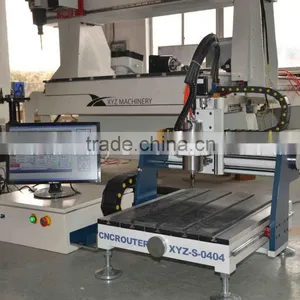

Hot-sales Mini CNC Machine for PCB,Aluminium &Copper XYZ-0404
Features:
Mini cnc machine
Desktop series is high precision mini CNC machine for small pieces products , such as Sign maker, Panel maker and PCB ...We adopt high accuracy TBI ball screw transmission and linear guide (HIWIN) on Y axis, machine's Z Travel is 4 inches/100mm.
1. Cast iron frame is more durable without distortion that ensures a lasting and stable use.
2. Taiwan TBI Ball Screw Transmission with original screw nut, high precision.
3. High-quality 2-phase Stepper Motor and Driver ,high Torque Hybrid, low reduce noise, stable, CE certification.

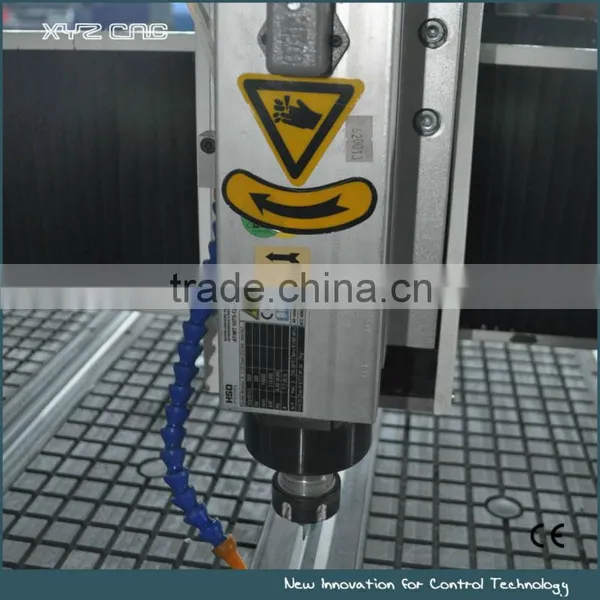

4. Air/Water-cooled spindle 1.5kw or 2.2kw.
5. DSP offline control system with advance USB interface which can ensure convenient and long-distance operating machine-off of computer. Ncstudio PCI control for option.
6. This mini CNC machine is also possible to have a vacuum table even on the mini table-top Router.
Parameters:
mini CNC machine:
No. |
Description |
Parameter |
1 |
X, Y, Z working area |
400 X 400 X 90 mm |
2 |
Table Size |
450×640mm |
3 |
Machine Bed Structure |
Cast steel table frame |
4 |
Bed type / Work Holding |
T-Slot & Vacuum |
5 |
X, Y Structure |
Round rails and TBI ball Screw |
6 |
Z Structure |
Linear guide rail (Taiwan Hiwin )& Ball Screw |
7 |
Resolution Working Accuracy |
0.01mm |
8 |
Reposition Accuracy |
0.01mm |
9 |
Spindle Type |
1.5KW/2.2KW Water-cooling |
10 |
Spindle Speed |
24000rpm |
11 |
Inverter |
Chinese Fuling |
12 |
Drive Motors |
Stepper |
13 |
Max. Power (without spindle) |
1.5KW |
14 |
Max. Working Speed |
5000 mm/min |
15 |
Max. idling speed |
7000 mm/min |
16 |
Working Voltage |
AC220/50Hz |
17 |
Interface |
USB port |
18 |
Operating System |
DSP off-line control system |
19 |
Command Language |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
20 |
Software |
Type3/Artcam |
21 |
Working Environment |
Temperature: 0-45°C, Humidity30% - 75% |
22 |
Packing Size |
900x900x900mm |
23 |
N.W. |
80kg |
24 |
G.W. |
100kg |
Sample show:

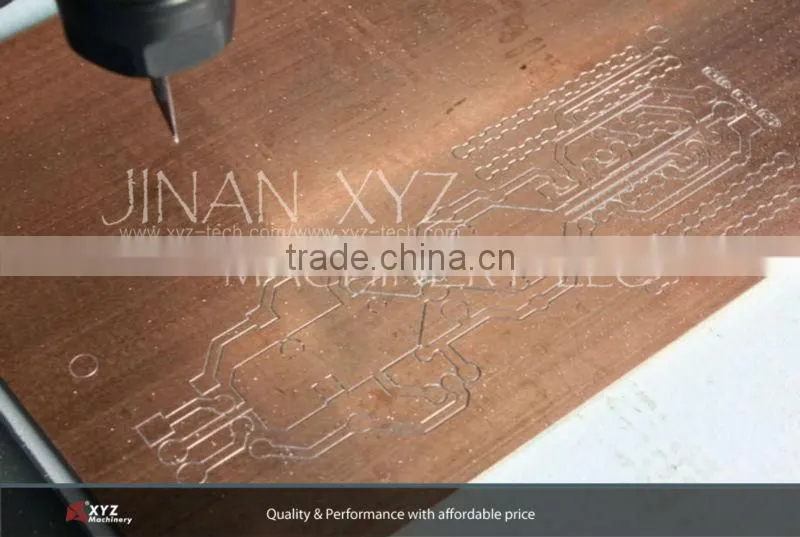

MIni CNC machine for PCB engraving

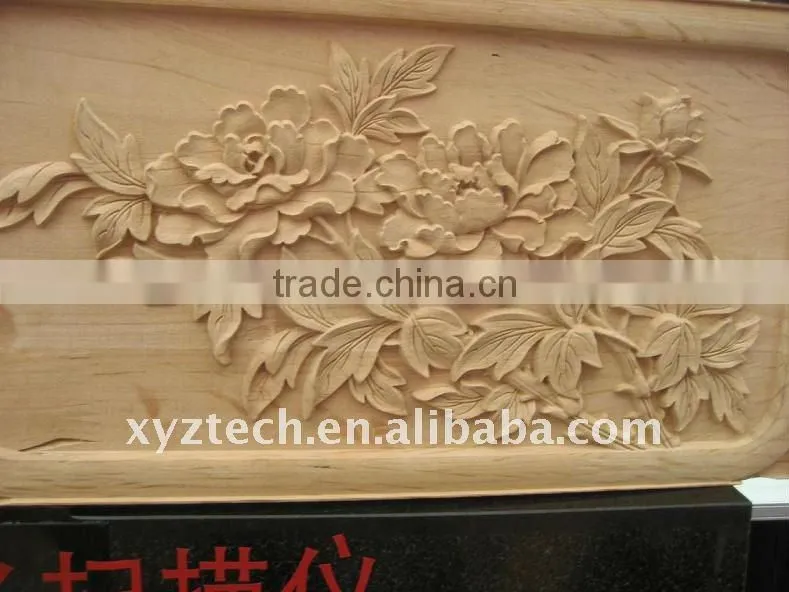

Mini CNC machine for wood carving
Applications:
mini CNC machine:
1.advertising industry: acrylic, double-color board, PVC, ABS board, aluminum board engraving and cutting, all kinds of signs, badges, seat plate, copper, font, fonts, various logos, trademarks and other materials.
2.Craft industry: artificial stone handicrafts, souvenirs engraving all kinds of text, graphics.
3.mold: architectural models, physical models, stamping mold, high frequency mold, micro injection mold, shoe mold, badge, embossed mold, biscuit, chocolate, candy molds.
4.Seal industry: in the horn, plastic, organic board, wood, mats and other materials storage device easily seal engraving.
