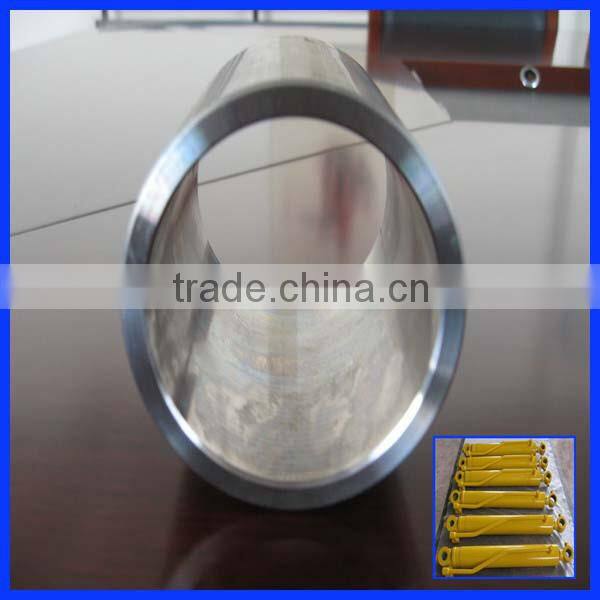

AISI SAE 1045 Cold Drawn Steel Pipe

FOB Price

US$ 1,000 - 1,500 / Metric Ton

10 Metric Tons(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	2, 30
Section Shape	Round	Outer Diameter	30 - 250 mm
Place of Origin	Shandong, China	Secondary Or Not	Non-secondary
Technique	Cold Drawn	Certification	Other, ISO9001:2000
Surface Treatment	Other, honed	Alloy Or Not	Non-alloy

Product Description

Specifications

1.Grade:10#,20#.35#,45#,Q345,16Mn,25Mn,27SiMn,42CrMo,Aisi1020,Aisi1045,St45,St52etc
2.ID:30-250mm
3.BKS NBK
cold drawn steel

Commodity name: AISI SAE 1045 cold drawn steel pipe

Technical parameter:

1.Raw material:10#,20#,35#,45#,Q345,16Mn,25Mn,27SiMn,42CrMo,Aisi1020,Aisi1045,st35,St45,St52etc

2.ID:30-250mm

3.ID tolerance:H8,H9

4.Surface roughness:Ra 0.02— 0.4μm

5. Final supply condition:cold drawn and stress-relieved(BK+S)

6. Machining allowance:0.5-1.5mm

7.Wall thickness:10%×ID

Dimensions tolerance

OD(mm)	ID (mm)	Tolerance
OD(mm)	ID (mm)	OD (mm)	ID (mm)	Wall thickness deviation (mm)	Ovality (mm)	Curvature(mm/m)
40-74	30-65	±.01	-0.3,-0.5	≤0.5	≤0.1	0.3
74-98	65-85	±.01	-0.4,-0.6	≤0.5	≤0.15	0.3
100-116	85-100	±.02	-0.4,-0.6	≤0.6	≤0.15	0.3
124-134	110-115	±.02	-0.6,-0.8	≤0.6	≤0.20	0.3
140-158	120-135	±.02	-0.7,-0.9	≤0.8	≤0.20	0.3
165-176	140-150	±.02	-0.7,-0.9	≤0.8	≤0.20	0.3
188-203	160-180	±.02	-0.7,-0.9 Honed	≤0.8	≤0.20	0.3

Tolerance on ID

No.	Inside diameter(mm)	ID machining allowance(mm)
1	50-80	0.5-0.8
2	81-125	0.7-1.1
3	125-200	0.9-1.2
4	200-250	1-1.5
Other dimension can be customized

Commercial length

No.	ID Min.(mm)	Length(mm)
1	50	700—2000
2	63	700—3000
3	80	700—4000
4	>90	700—6000
Other dimension can be customized

Delivey conditions:

Standard packing with plastic caps and strapped bundles.
Commercial length 2000~10500mm,custom lengths upon request
Surface protection

we can supply all kinds of steel pipes such as hot rolled seamless steel pipes ,cold drawn seamless steel pipes,honed pipes,cold drawn welded tubes(DOM tubes).

Management System Certification:

Production Process:

Pretreatment : Acid cleaning- Parkerizing

Cold drawn/cold rolled

Annealing furnace—— stress-relieving (+SR)

Straightener—— Straightening/ Leveling

Straightness inspecting

Dimension inspecting

Sawing off not good parts

Lathe

Surface Polishing

CNC Skiving Roller Burnishing Machine

Finished honed tube
