Carbon Seamless Honed Steel Pipe Better Roughness

FOB Price

US$ 1.1 - 1.5 / Metric Ton

10 Metric Tons(Min. Order)

Port Yantai/Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	2, 30	Section Shape	Round
Outer Diameter	30 - 250 mm	Place of Origin	Shandong, China
Secondary Or Not	Non-secondary	Application	Hydraulic Pipe
Technique	Cold Drawn	Certification	Other, ISO 9001 2008
Surface Treatment	Other, According to the custome's need	Special Pipe	API Pipe
Alloy Or Not	Non-alloy

Product Description

Specifications

1.carbon steel seamless honed pipe Better roughness
2.NO MOQ
3.Widly Used
4.Fast Shipment
5.Advantace Technology

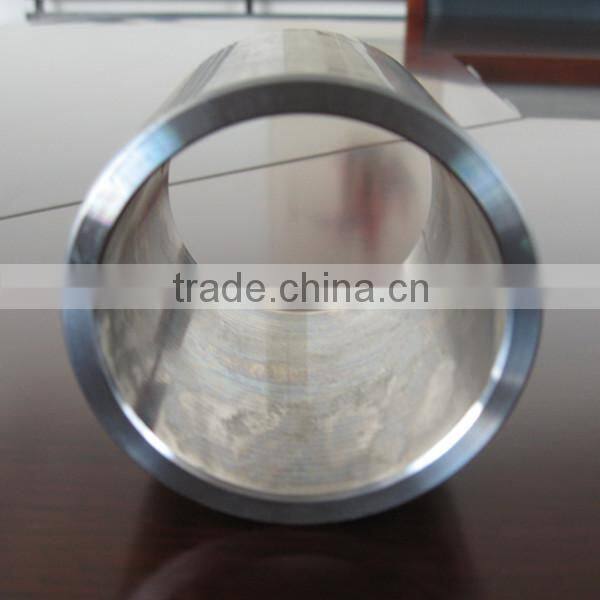

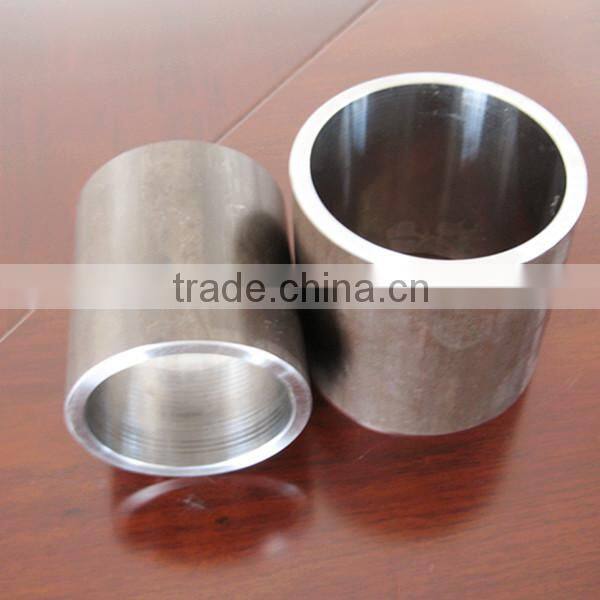

carbon seamless honed Steel pipe Better roughness

1 OD32-500mm W.T.3.5-80mm 2 ISO certificated DIN2391 En10305 3 Straightness:0.3~1mm/m 4 Inside Roughness:0.4~0.8um

steel pipes for hydraulic use

Material: C20, CK45, etc. also ST52 if given enough time. our products are widely used in hydraulic industry and is very popular both home and abroad.

And we can also make our products according to the customers' needs.

Variety

Processing

Cylinder diameter

Length /mm

Straightness

Size accuracy

Wall thickness/mm

Inner bore

roughness

Cold-drawn

ID30~OD250

≤13M

0.3~1.0mm/m

H9-H11

±8%

0.8~1.6um

Honed tube

ID50~OD325

≤10M

0.3~1.0mm/m

H7-H9

±8%

0.4~0.8um

Mechanics performance

Material	Tensile strength	Yield strength	Elongation	Hardness
Ck20	510 σ N/mm²	500σsN/mm2	5δs%	175HB
Ck45	660 σN/mm²	630σsN/ mm²	4δs%	207HB
ST52	580σ N/mm²	420σsN/ mm²	10δs%	190HB
27SiMn	840σ N/mm²	805σsN/ mm²	7.5δs%	230HB

Dimension tolerance

ID size

ID deviation (mm)

H10

+0.021

+0.033

+0.052

+0.084

>30~50

+0.025

+0.039

+0.062

+0.100

>50~80

+0.030

+0.046

+0.074

+0.120

>80~120

+0.035

+0.054

+0.087

+0.140

>120~180

+0.040

+0.063

+0.100

+0.160

>180~250

+0.046

+0.072

+0.115

+0.185

>250~315

+0.052

+0.081

+0.130

+0.210

>315~400

+0.0527

+0.089

+0.140

+0.230

Production Process:

Pretreatment : Pickling—Phosphating—Saponification

Cold drawn/cold rolled

Annealing furnace——+SR

Straightener—— Straightening

Straightness inspecting

Dimension inspecting

Sawing

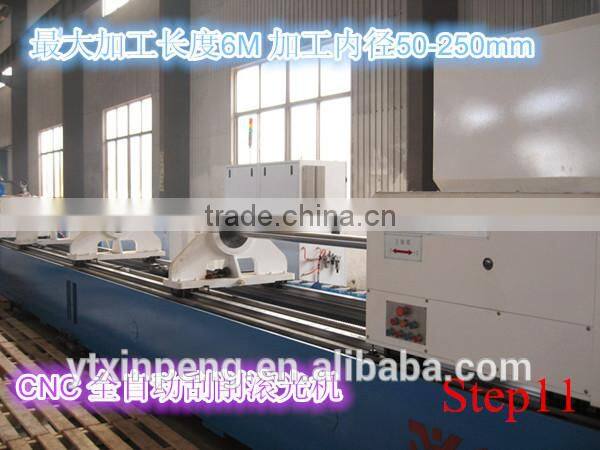

Skiving and Roller burnishing

Products inspecting

Finished Products
