Mini PCB CNC Router ZK-3030 300*300MM
- 300 Set / Sets per Month
- Qingdao or according to your need
- T/T D/P D/A Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Zhuoke |
Model Number: | ZK-3030 | Type: | Horizontal | CNC or Not: | CNC |
Certification: | CE | Warranty: | One year under normal use |
Product Description

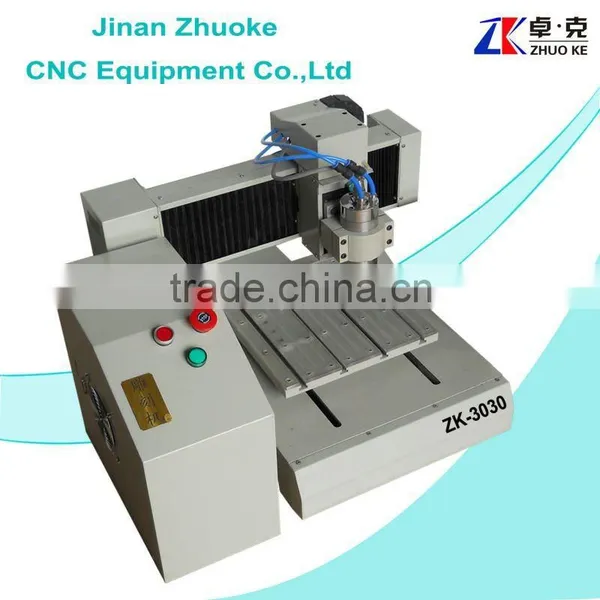

Mini PCB CNC Router ZK-3030 300*300MM
Function introduction
1. Drilling on the copper-clad laminates
2. Stripping off the no need copper foil, forming wire welding plate.
3. Milling cutter line along the appearance, make the circuit board and plank separation.
4. Directly setting the original point, and resetting function
5. Software virtual machining, can preview the processing path.
6. Real-time the processing path and time showing
7. Power off, break point continue working.
8. Combination engraving, available setting 2 cutters processing, shorting the processing time.
9. Can setting any region processing.
Advantage
1. Not only for the single sided board, but also for the double sided, and the processing are very simple.
2. Z-axis height can adjustable in the processing.
3. Using the universal G code processing file, such as Power PCB, Protel 99 all can use for the circuit designing, better adaptability.
4. The estimation of the processing time, avoiding the long time meaningless waiting.
5. Isolation function, just2 minutes, achieving the insulation for the circuit board and the surrounding copper.

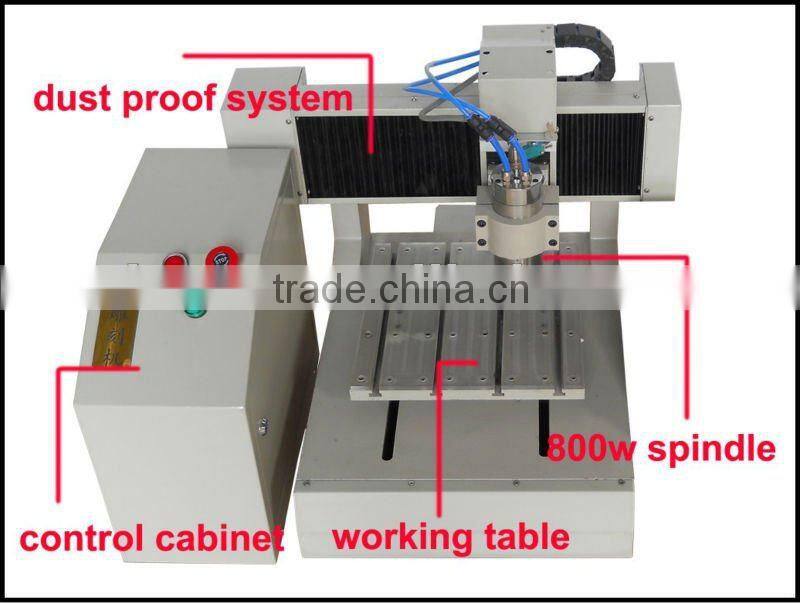

Reference machine pictures
Working table T slot
800w water cooling spinde & linear round guide rail & ball screw transmission

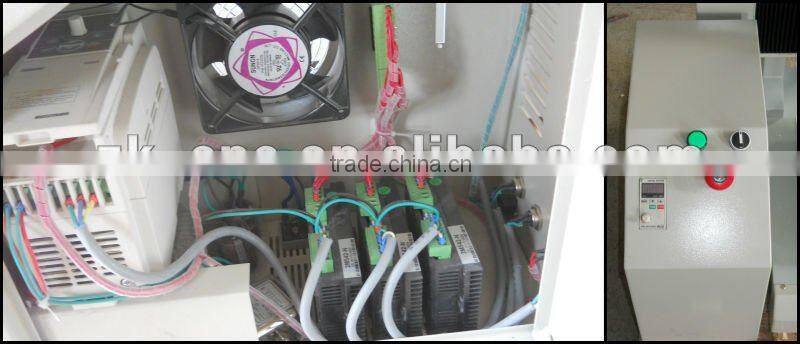

Control cabinet

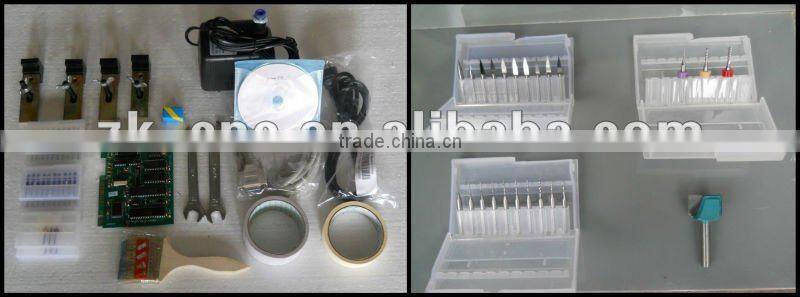

Accessories
Main technical parameters
Items | Description | Items | Description |
Working area | 300*300mm | Working speed | adjustable |
Transmission | high precision ball screw for X Y Z-axis | Driving mode | Stepper motor |
Spindle power | 800w water cooling or higher | Spindle speed | 0-24000rpm |
Minimum processing line diameter | 6-8mil | Minimum processing line distance | 8mil |
Minimum stepping distance | 0.003125mm | Milling speed | 5000mm/min |
Processing panel | Single/double sided | Line isolation | Yes |
Compatible software | PowerPCB, protell 99, etc | Operating system | Windows 2000/XP |
Working humidity | 30%-75% | Power supply | AC 220V 50/60Hz, or AC110V 50/60Hz |

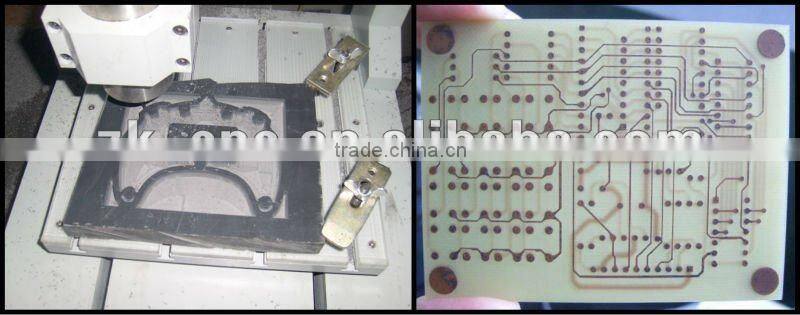

Sample pictures
Also have other models
JC-4040 400*400mm JC-5060 500*600mm
JC-6060 600*600mm JC-6090 600*900mm
Or we can design according to your need!
