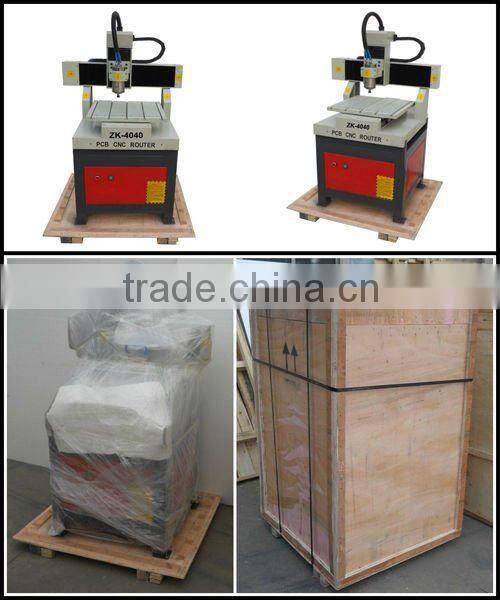

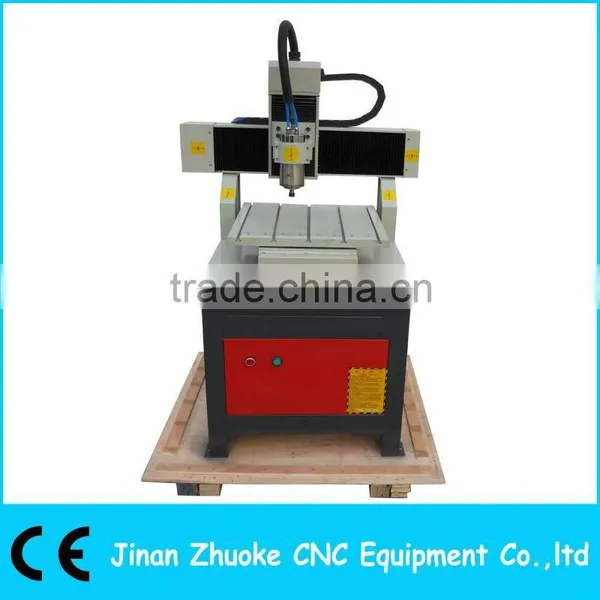

Small PCB Milling and Drilling Machine
ZK-4040
Function introduction
- Drilling on the copper-clad laminates
- Stripping off the no need copper foil, forming wire welding plate.
- Milling cutter line along the appearance, make the circuit board and plank separation.
- Directly setting the original point, and resetting function
- Software virtual machining, can preview the processing path.
- Real-time the processing path and time showing
- Power off, break point continue working.
- Combination engraving, available setting 2 cutters processing, shorting the processing time.
- Can setting any region processing.
Advantage
- Not only for the single sided board, but also for the double sided, and the processing are very simple.
- Engraving speed is adjustable, possibly to forming the very slimsy circuit board, any time stopping in the processing progress.
- Adjusting the Z-axis height in the processing processing.
- Using the universal G code processing file, such as Power PCB, Protel 99 all can use for the circuit designing, better adaptability.
- The estimation of the processing time, avoiding the long time meaningless waiting.
- Isolation function, just needing 1-2 minutes, achieving the insulation for the circuit board and the surrounding copper.
Main technical parameters
Items | Description | Items | Description |
Working area | 400*400mm | Working speed | adjustable |
Transmission | high precision ball screw for X Y Z-axis | Driving mode | Stepper motor |
Spindle power | 1.5Kw water cooling or higher | Spindle speed | 0-24000rpm |
Minimum processing line diameter | 6-8mil | Minimum processing line distance | 8mil |
Minimum stepping distance | 0.003125mm | Milling speed | 5000mm/min |
Processing panel | Single/double sided | Line isolation | Yes |
Compatible software | PowerPCB, protell 99, etc | Control system | PCI NcStudio or (DSP offline or MACH3) |
Working humidity | 30%-75% | Power supply | AC 220V, 50/60Hz or according to your need) |

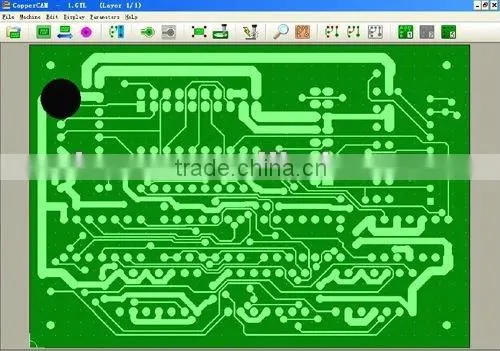

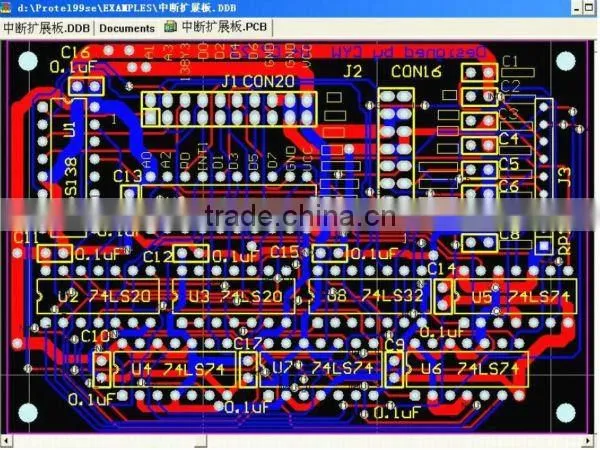

Software: Portel 99& Popper CAM

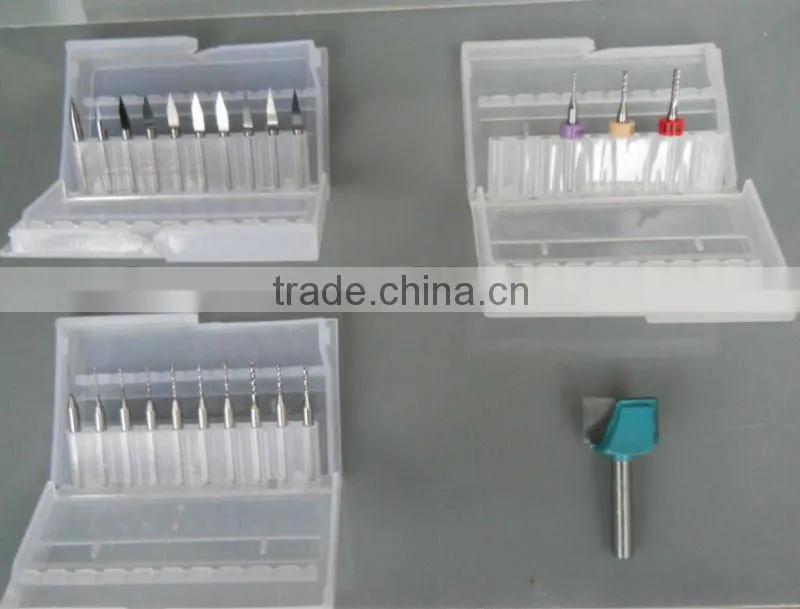

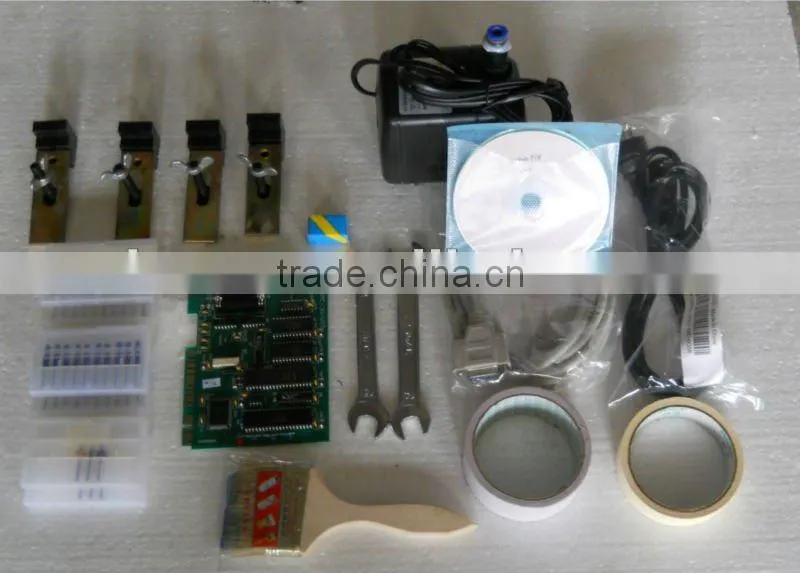

Tools & Accessories

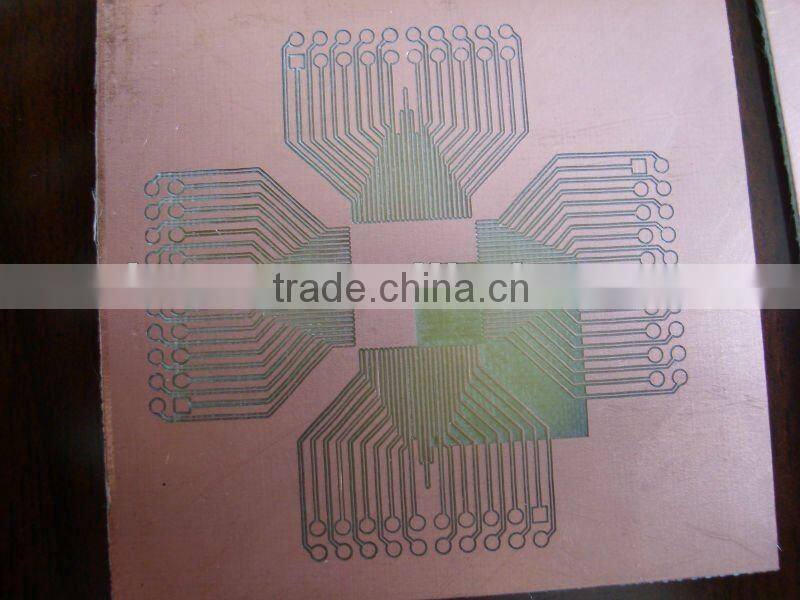

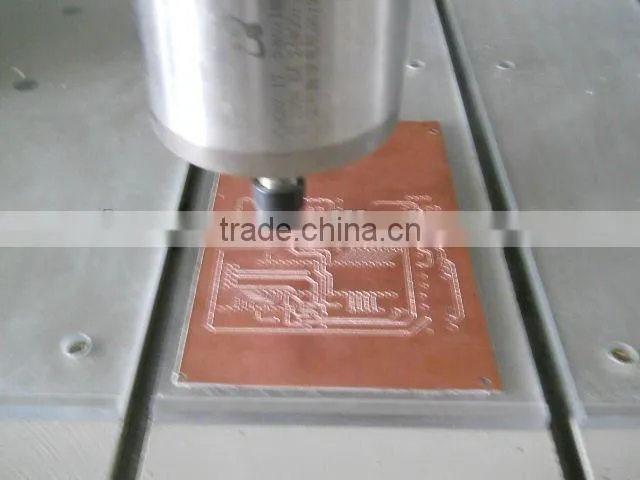

Sample pictures
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with different languages.
6.We provide door to door technical support ,if necessary.
Also have other models
ZK-3030 300*300mm ZK-6060 600*600mm ZK-6090, 600*900mm
For any questions, pls feel free to contact us!
