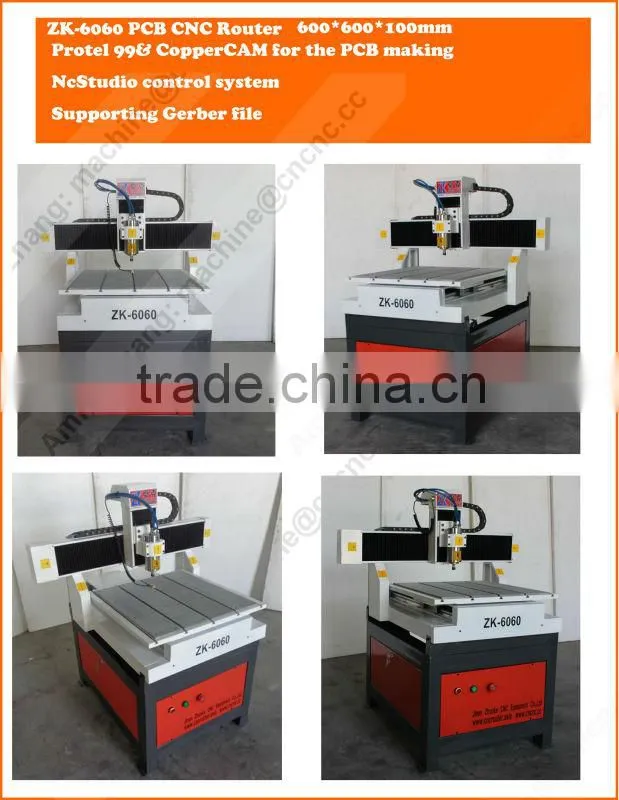

600*600mm Cheap PCB Prototype CNC Router Protel99&CopperCAM Software ZK-6060

  600*600mm Cheap PCB Prototype CNC Router Protel99&CopperCAM Software ZK-6060

Technical advantages

In order to shorten the research and design time and see results as soon as possible, research institutions, universities, electronics

companies can adopt Zhuoke series PCB engraving machine.The time of product design developed is very long if sent to the printed

version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.The

printed version of the production of other methods are very cumbersome and the printed version is not standardized.

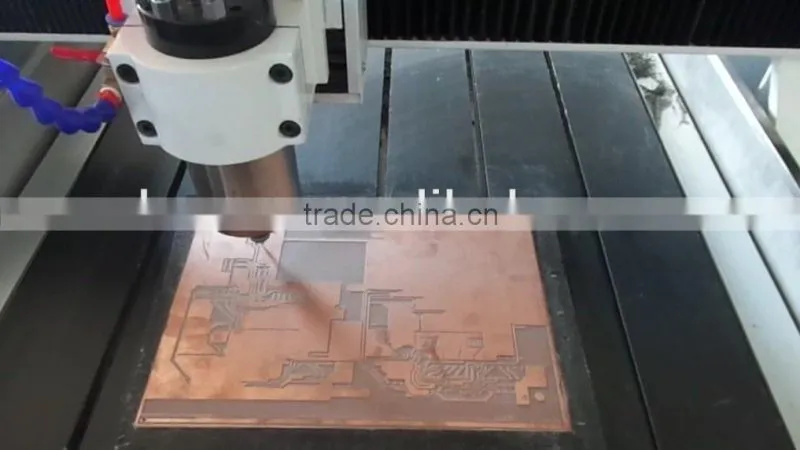

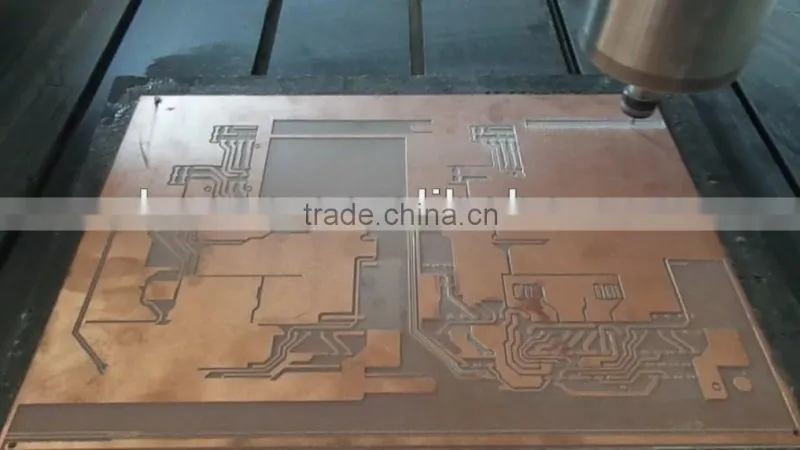

Zhuoke series highprecision circuit board engraving machine with drilling, carving, line isolation, width setting, the whole map

and designated areas engraving, milling and shaped holes and other functions, you can also use multiple combination of

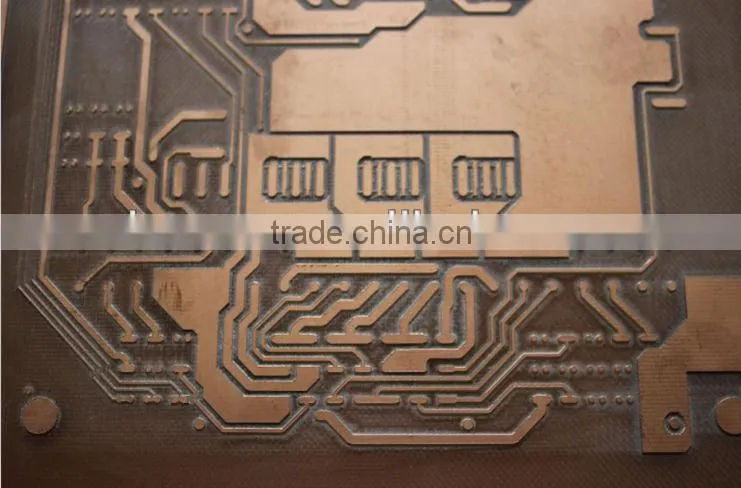

carving knives way to prevent a board spending a few hours, it has high performance. It takes just 12 minutes to make a simple circuit board and also just about 20 minutes to produce a very complex circuit board. With environmental performance, using physical engraving, free corrosion, avoid environment pollution, it is the most powerful, cost-effective CNC engraving machine in the PCB engraving machine industry.

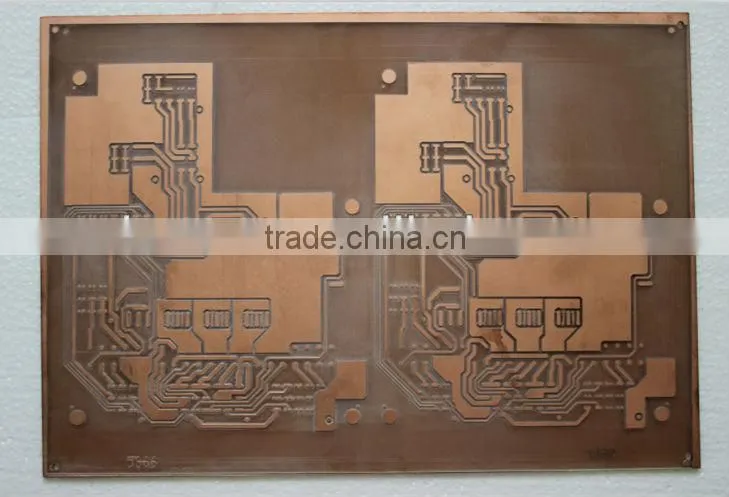

PCB single panel making process

Cut the circuit board into the desired size, or the size of the board has been cut well-- designed in accordance with the engraving machine circuit diagram punch--hole of the device will be used to lay the hole plated circuit board on the wall of the hole copper--plated finish vias on the circuit board for carving, create a routecomplete good soldered directly to the circuit board components.

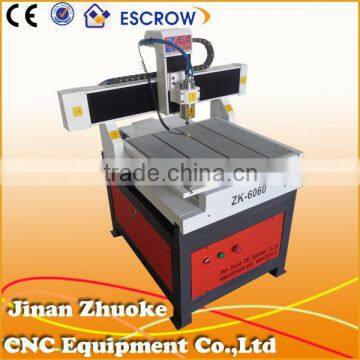

Machine Characters

1. Body small, tight, machine body and gantry whole cast iron or aluminum, stable, no deformation, little shock,

moving stability.

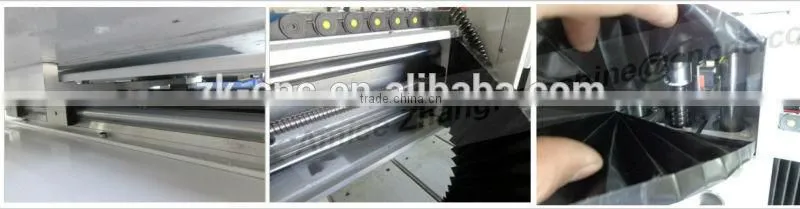

2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.

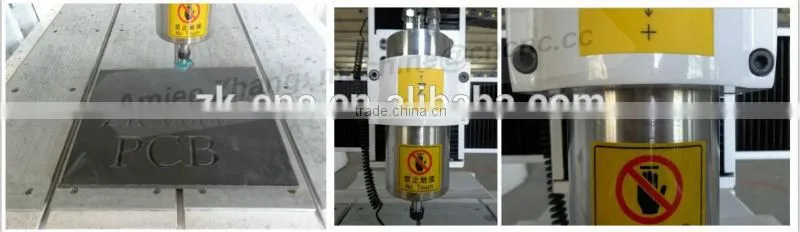

3. Low noise 1.5kw/2.2kw water cooling spindle, high rotated speed (24000rpm), can realize only diameter 1mm tools engraving on the hardness materials.

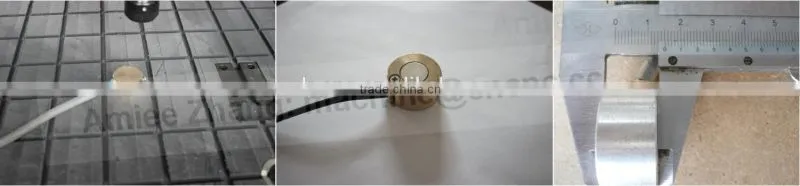

4. Auto tool calibration help you to set the tools, not break the tool nose, ensuring the workpiece high precision processing.

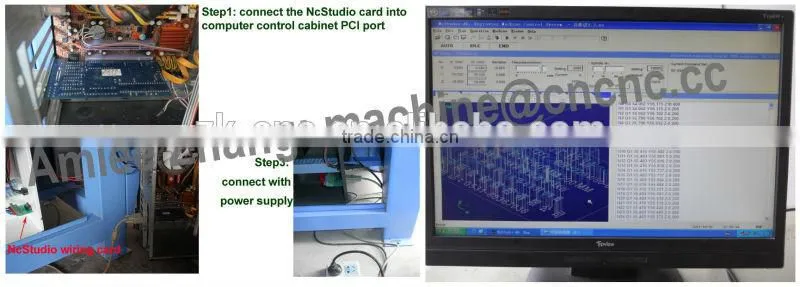

5.  NcStudio control system, connect with the computer, showing the processing path, , more conveient and easy to operate.

6. Continuing working after the break point/power failure, lower the rejection rate.

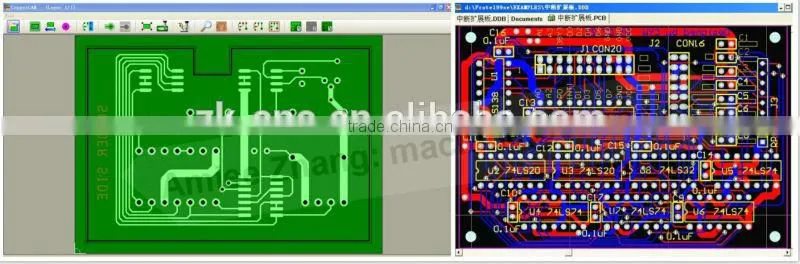

7. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

Technical parameters

Other models

ZK-3030, 300*300mm,  ZK-4040, 400*400mm ,   ZK-6090, 600*900mm, ZK-1212, 1200*1200mm, ....

Packing: 1.3CBM, 225KG, one plywood case

Shipping: EXW/FOB/CIF/DDP/DDU... or according to your need
