OFPM-2000A four square fiber optic polishing machine
- 300 Set / Sets per Month
- Beijing
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | China | Brand Name: | WF | Model Number: | OFPM-2000A |
Product Description

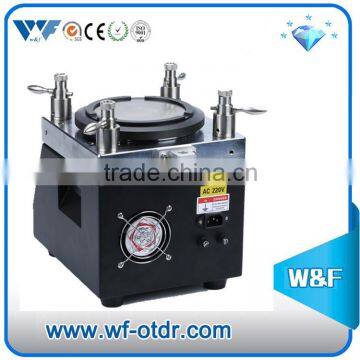

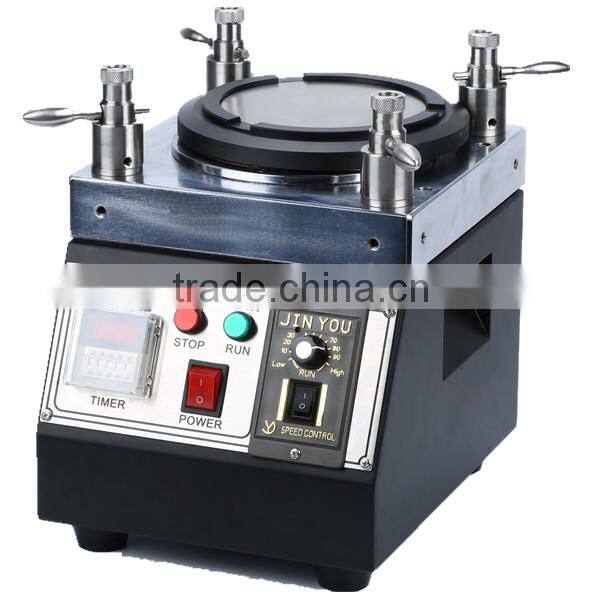

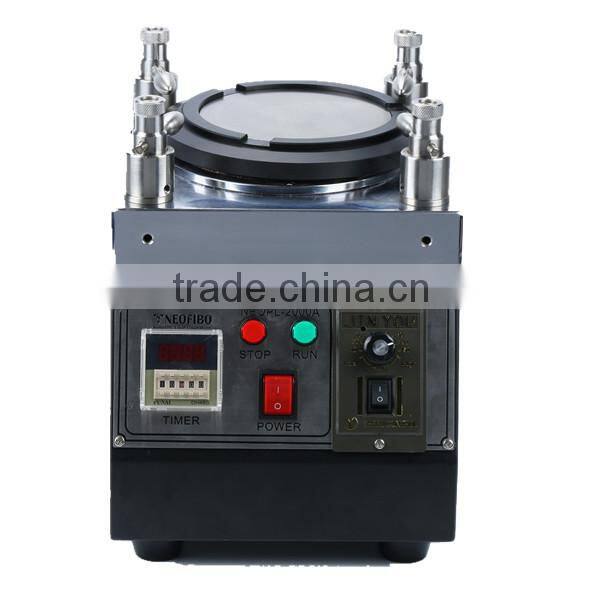

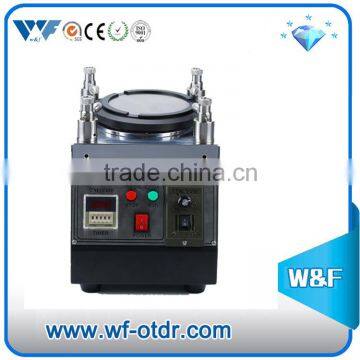

OFPM-2000A four square fiber optic polishing machine
1. Designed for fiber optic connector polishing, 220V AC 50/60Hz input voltage.
2. It is widely used for polishing UPC and Angled connector of SC / FC / E2000 / ST / MU and LC.
3. Different connectors request different type polishing jigs, low cost for polishing jigs.
4. Speed adjustable and applicable to manufacture connector with high quality requirements.
5. Polishing high efficiently, jigs could polish 18 or 40 connectors per cycle.
6. Use with Neoholder® SC-48-F25, and polish 48 ferrules per cycle.
7. Easy to handle and compact size.
Input Power: 220VAC 50/60Hz
Fuse Type: 220VAC 1000mA
Standard configuration:
Polishing Machine, OFPM-2000A | 1 set |
AC Power Cable | 1 pc |
Patchcord Shelf | 1 set |
Optional Fixture/Jig List:
No. | Part # | Connector Type | Polishing Capacity |
1 | PC-18-FF | φ2.50 mm PC Ferrule Style | 18 positions |
2 | LC-20-FF | Φ1.25 mm PC Ferrule Style | 20 positions |
3 | FC-PC-20 | FC/PC connector Style | 20 positions |
4 | ST-PC-20 | ST/PC connector Style | 20 positions |
5 | SC-PC-20 | SC/PC connector Style | 20 positions |
6 | SC-PC-24 | SC/PC connector Style | 24 positions |
7 | SC-PC-32 | SC/PC connector Style | 32 positions |
8 | MU-PC-20 | MU/PC connector Style | 20 positions |
9 | LC-PC-24 | LC/PC connector Style | 24 positions |
10 | LC-PC-40 | LC/PC connector Style | 40 positions |
11 | E2000-PC-18-HS | E2000/PC HS Metal Ferrule Style | 18 positions |
12 | E2000-PC-18-RM | E2000/PC R&M Ferrule Style | 18 positions |
13 | FC-APC-18 | FC/APC connector Style | 18 positions |
14 | ST-APC-18 | ST/APC connector Style | 18 positions |
15 | SC-APC-18 | SC/APC connector Style | 18 positions |
16 | MU-APC-18 | MU/APC connector Style | 18 positions |
17 | LC-APC-18 | LC/APC connector Style | 18 positions |
18 | E2000-APC-18-HS | E2000/APC HS Metal Ferrule Style | 18 positions |
19 | E2000-APC-18-RM | E2000/APC R&M Ferrule Style | 18 positions |
20 | MTRJ-18 | MTRJ Ferrule Style | 18 positions |
21 | MPO-18 (MTP-18) | MPO Ferrul Style | 18 positions |
Rubber Pad and Polishing Film:
No. | Part # | Diameter Size / Thickness / Description | HARDNESS |
1 | PR5X-500-60 | dia127mm, 5.00mm thick rubber pad | 60 Shore Hardness |
2 | PR5X-500-65 | dia127mm, 5.00mm thick rubber pad | 65 Shore Hardness |
3 | PR5X-500-70 | dia127mm, 5.00mm thick rubber pad | 70 Shore Hardness |
4 | PR5X-500-75 | dia127mm, 5.00mm thick rubber pad | 75 Shore Hardness |
5 | PR5X-500-80 | dia127mm, 5.00mm thick rubber pad | 80 Shore Hardness |
6 | PR5X-500-85 | dia127mm, 5.00mm thick rubber pad | 85 Shore Hardness |
7 | PR5X-500-90 | dia127mm, 5.00mm thick rubber pad | 90 Shore Hardness |
9 | GRISH-D30 | 30 micron Diamond Polishing Film | Epoxy Removal |
9 | GRISH-D9 | 9 micron Diamond Polishing Film | Coarse Polishing |
10 | GRISH-D3 | 3 micron Diamond Polishing Film | Medium Polishing |
11 | GRISH-D1 | 1 micron Diamond Polishing Film | Fine Polishing |
12 | ADS-127 / XF5D | Final Polishing film | Final Polishing |
Orders would be shipped within 3 working days upon receiving cleard payments when stock lasts. Delievery time depends on the shipping method, the following is the typical time:
Faster courier(Such as EMS, DHL, UPS...) would take 3-7 days;
Air mail(Hong Kong air mail, Singapore air mail) would take 10-20 days.
Package might be delayed occasionally by the Customs or the carrier, we sincerely hope each customer could give a few more days when this happens Beijing W&F technology Co.,LTD is founded in 2006. It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company is one of the biggest communication test instrument suppliers which is located in Beijing - the capital of China.
1.What’s the lead time for all the goods that I required?
W&F :About the 3-4 working days after getting payment.
2.What’s the warranty for your products?
W&F: Normally it is 2 years.
3.What’s the MOQ for your products?
W&F: 1PC is ok ?
4. How will you ship to us ?
W&F: Normally it will takes 3-5 days by DHL or FedEx
5.My fusion splicer machine always has a larger splice loss,what reasons caused it? How solve?
W&F: 1).the electrodes are aging,you need to change new ones
2).the electrodes are not installed very well,you need to re-install and fix the electrodes well.
3).discharging current is not good,you need to do discharging experiment to make the current get the right point
6.splicing machine shows loss is not large,but it's larger when testing use a OTDR,what causes?how solve?
W & F :1).the electrodes are aging,you need to change new ones
2).discharging current is not good,you need to do discharging experiment to make the current get the right point
3).Optical fiber end face is bad,there is something wrong with the cutting blades.You need to adjust the fiber cleaver & cutting blades to make sure end face is better
4).There has dust in V groove,you need to clean V groove, microscope, electodes etc
You are always welcome to contact us!
