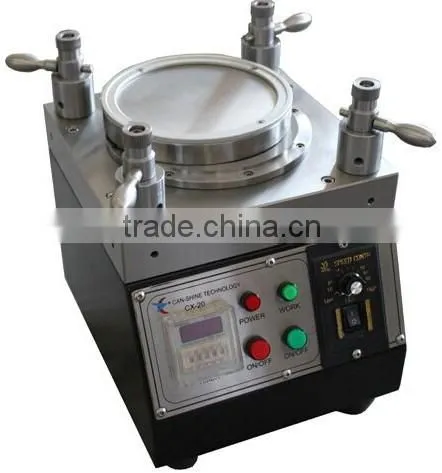

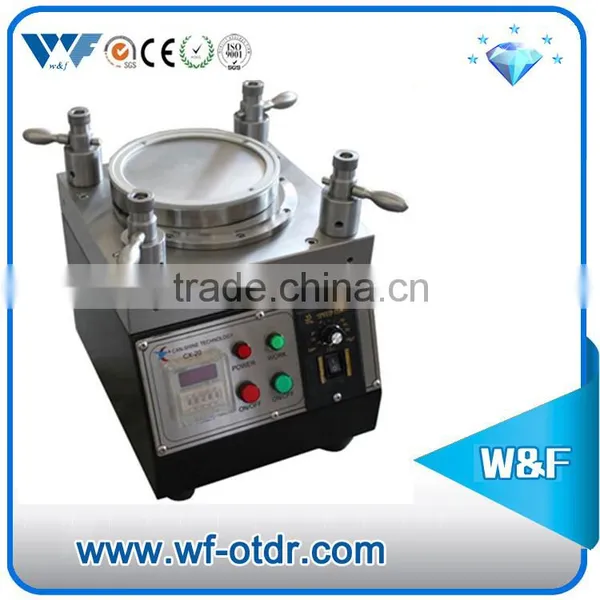

WF-20A WF-20 Square fiber optic polishing machine
1.Can process most kinds of standard fiber optic connectors , such as FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,FC/APC,SC/APC,MT-RJ,E2000 etc
2. Adapt to four corners pressurized, jig will be installed stable
3.Compact size
4. Excellent connector end force polishing quality
5. Designed for volume production , high productivity(Can polishing 18-40 connectors per time)
6. Save material and low cost for grinding
7. Made by high quality, hardened steel S136
1. Polishing Material specification for WF-20A polisher:
No | Material | Type | Remark |
1 | ZrO2 Ceramic Ferrules | φ2.5mm, φ2.0mm, φ1.25mm | PC,APC |
2 | Quartz capillary | φ1.8mm | Plane, inclined plane and spherical surface |
3 | Glass materials | φ1.0mm, φ10.0mm | |
4 | Stainless steel and titanium alloy | φ3.0mm, φ2.5mm | |
5 | Colophony material | MT-RJ, MPO, MPT etc |
Remark :User should use the recommended polishing liquid and polishing films for WF-20A polisher. We could not ensure the polishing quality meet user’s requirements if other types of polishing liquid and films were used.
2. PC/UPC (R20) Standard Polishing Results
PC/UPC(R20)
Polishing Process: 4 processes (not including “Remove Glue ”)
Return Loss : ≥50 dB
Top Curvature: 10~25 mm
Top Excursion: ≤50 nm
Core Hollow : ≤0.1 um
Surface Roughness : ≤50 nm
3. General Technical Parameters
Machine Size: L 240(mm) × W 240(mm) × H 260(mm)
O.D. of Rotation Plate: 127 mm(5 inch)
Time Settings : 99 min 99 sec (Max)
Speed for Rotation Plate : 90 rpm
Height of Plate Jumpiness : <10 um
Pressure Configuration: 21 ~ 36 N/cm2
Work Temperature : 10 ~ 40 Celsius degrees
Relative Humidity : 15%~85%
Noise : unloading Less 50 dB
Libration : Working Status 0.25g5~100Hz10min
Stopping Status 0.50g 5~100Hz 10min
Power Input: 220~230 VAC50Hz/60Hz
Electric Power : 40 W
Net Weight /: 24 kg
4. Storage Condition
Temperature : -40 ~ 80 Celsius degrees / -40℃~85℃
Relative Humidity : 15%~85%
Libration : 1.0g 5~100Hz 45min
5. Options for Polishing jigs
No. | Model | Description | Remark |
1 | FC-PC-20 | FC/PC connector style jig, 20 positions | φ2.50mm,20 positions |
2 | ST-PC-20 | ST/PC connector style jig, 20 positions | φ2.50mm,20 positions |
3 | SC-PC-20 | SC/PC connector style jig, 20 positions | φ2.50mm,20 positions |
4 | FC-PC-24 | FC/PC connector style jig, 24 positions | φ2.50mm,24 positions |
5 | ST-PC-24 | ST/PC connector style jig, 24 positions | φ2.50mm,24 positions |
6 | SC-PC-24 | SC/PC connector style jig, 24 positions | φ2.50mm,24 positions |
7 | MU-PC-24 | MU/PC connector style jig, 24 positions | φ1.25mm,24 positions |
8 | LC-PC-24 | LC/PC connector style jig, 24 positions | φ1.25mm,24 positions |
9 | MU-PC-40 | MU/PC connector style jig, 40 positions | φ1.25mm,40 positions |
10 | LC-PC-40 | LC/PC connector style jig, 40 positions | φ1.25mm,40 positions |
11 | FC-APC-18 | FC/APC connector style jig, 18 positions | φ2.50mm,18 positions |
12 | SC-APC-18 | SC/APC connector style jig, 18 positions | φ2.50mm,18 positions |
13 | MU-APC-18 | MU/APC connector style jig, 18 positions | φ1.25mm,18 positions |
14 | LC-APC-18 | LC/APC connector style jig, 18 positions | φ1.25mm,18 position |
15 | MTRJ-18 | MTRJ connector style jig, 18 positions | 18 positions |
16 | MPO-18 | MPO connector style jig, 18 positions | 18 positions |
Remark : If you could not find the jig's models you look for, please contact with us.
Orders would be shipped within 3 working days upon receiving cleard payments when stock lasts. Delievery time depends on the shipping method, the following is the typical time:
Faster courier(Such as EMS, DHL, UPS...) would take 3-7 days;
Air mail(Hong Kong air mail, Singapore air mail) would take 10-20 days.
Package might be delayed occasionally by the Customs or the carrier, we sincerely hope each customer could give a few more days when this happens Beijing W&F technology Co.,LTD is founded in 2006. It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company is one of the biggest communication test instrument suppliers which is located in Beijing - the capital of China.
We could supply Fujikura, Sumitomo, Fitel, Yokogawa, JDSU,EXFO, Shineway, KL, and W&F Chinese, and accessaries for fiber optic equipments.
You are always welcome to contact us!
