Help CenterWF-AF008 Prefabricated Wind Fence Corrugated Steel Fence From China Supplier
Related Products
-
WF-AF020 Morden Design Steel Wind Fence for Sport Ground With GatesUS$ 12 - 22MOQ: 500 Square Meters -
WF-BL001 Environmental Protection Product Steel Galvanized Wind Dust Fence on SaleUS$ 10 - 30MOQ: 1000 Square Meters
-
WF-BL003 Steel Galvanized Wind Dust Net EnvironmentallyUS$ 10 - 30MOQ: 1000 Square Meters
-
WF-BL002 Steel Galvanized Wind Dust Net for the Open Yard of Bulk MaterialUS$ 15 - 28MOQ: 1000 Square Meters
-
WF-BL004 High Quality Perforated Wind and Dust Suppression Wall Professional DesignUS$ 15 - 30MOQ: 1000 Square Meters
prefabricated wind fence corrugated steel fence from China supplier
How steel windbreak fence work
Strong wind with large scale and high strength vortex in front of the steel dust fence is combed into small scale and weak strength vortex. Only part of wind can go through the steel fence. Its mechanical energy is decayed and turns into low speed airflow.
Schematic diagram of steel wind fence
After the strong wind going through the steel wind fence, the lowered speed, weakened turbulence intensity wind flows across the storage yard. It becomes a wind with low gradient speed, low curl, weak vorticity and turbulence intensity, which greatly reduced the dust quantity in lower part of the storage yard. When the strong wind comes to steel dust suppression fence, airflow interference appears and the coming wind speed is reduced. Thus, the kinetic energy of coming wind is greatly reduced. The shearing stress and pressure on surface of the storage pile is reduced, thereby achieving the effect of reducing the fugitive dust pollution.
Schematic diagram of steel wind fence
What components included in steel wind fence
The steel wind fence and dust suppression wall is formed by three parts: foundation, steel structure and steel windbreak panel. The steel structure is designed mainly in accordance with height of storage pile, wind load, earthquake and other factors. Each structure post is completed in factory. The steel wind fence panels are fastened on the structure by stainless stell made bolts and nuts.
Specifications of steel wind fence
Item |
Specifications |
Aperture Opening Rate(%) |
Aperture type |
Aperture Diameter (mm) |
|||
Model |
Length (mm) |
Width (mm) |
Thickness (mm) |
|
|
|
|
Wind Fence |
GR-FFW-001 |
3000-6000 |
300-500 |
0.8-1.5 |
30-40 |
Round |
6-10 |
|
Dust Suppression Fence |
GR-YCW-001 |
3000-6000 |
300-500 |
0.8-1.5 |
20-30 |
Oblong |
4-6 |

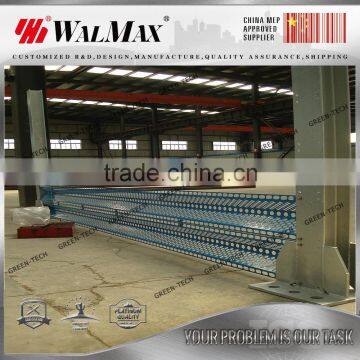

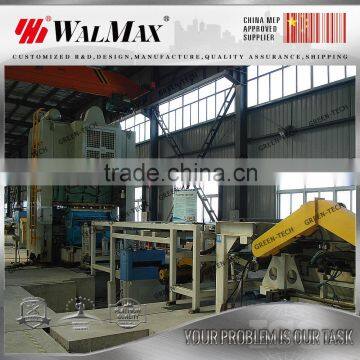

Pictures of steel wind fence and accessories

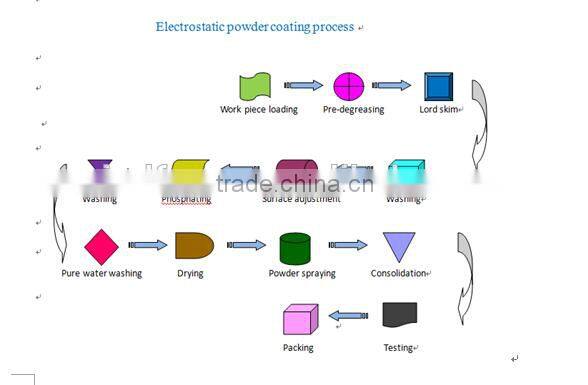

Processing flow of steel wind fence corrosion prevention coating
Benefits of steel wind fence
1, Economic benefit
Reducing loss of stock in the stock yard
Reduce the damage to facilities due to strong wind
Increase the operation rate of storage yard
2,Social (environment) benefit
Improving living environment for neighboring inhabitants
Improving working environment for field men
Reducing dust pollution in neighboring environment and water area
Company information
Green (Tianjin) Technology Development Co., Ltd. locates in Baodi Jiuyuan Industrial Park with registered capital of 10 million U.S. dollar and total investment 25 million U.S. dollar. Green Technology is the only research and manufacturing enterprise in Tianjin who specializes in the control of wind, sand, snow and dust. The designed daily output of steel wind fence panel is 12,000M2. Green Technology is supplying a scientific and effective solution for the ports, terminals, power plants, cement factories, coal mines, roads, railway, agriculture and other fields that face the problem caused by wind, sand, snow and dust.
Green Technology strictly follows the modern enterprise management mechanism and has passed the authorization and the audit of ISO9001: 2008, ISO14001: 2004, ISO: 18001:2001 system. The company owns the qualification of Environmental Engineering Contractor (Grade III) and Steel Structure Engineering Contractor (Grade III). "WALMAX" is the registered trademark. Green Technology possesses more than 20 patents concerning wind, sand, snow and dust control. The company is equipped with advanced automatic spraying production line, salt fog test machine and the static and dynamic load laboratory. Green Technology is striving for bringing blue sky to the earth and creating beautiful life for human beings through WALMAX brand wind, sand, snow and steel wind fence control systems.
For more information about Green Technology, welcome to visit our website:
Thanks for your attention,for more details please kindly contact to me.
