HOT SALE stainless steel sand barrier
Function of stainless steel sand barrier

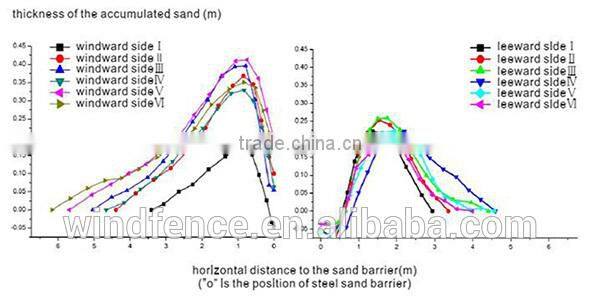

Field survey found that when the stainless steel sand barrier for railway fence is 1.5M high, aperture ratio 40%, it can block half of the sand that falls on the windward side, the other half of the sand goes through the barrier and falls on the leeward side. Thus the stainless steel sand barrier for railway is protected from collapsing. It forms a flat near the barrier to slow down the wind speed. The sand will eventually stop at the railway fence evenly and forms a sand resistance dike (artificial dike) which has a significant effect of sand blocking.
In most cases, even if the stainless steel sand barrier for railway was completely buried in the sand to form an artificial dike, it still plays a role in blocking the sand in the subsequent long period of time.
Benefit of stainless steel sand barrier
improve the working conditions of the on-site staff
Reduce the dust pollution to the surrounding air and water
Improving living environment for neighboring inhabitants
Improving working environment for field men
Reducing dust pollution in neighboring environment and water area
Specification of stainless steel sand barrier
Item |
Specifications of stainless steel sand barrier |
Aperture Opening Rate (%)
|
Aperture type
|
Aperture Diameter (mm)
|
|||
Model |
Length (mm) |
Width (mm) |
Thickness (mm) |
||||
Windbreak Net |
GR-FFW-1001 |
4000-6000 |
300-500 |
0.8-1.5 |
30-40 |
Round |
6-10 |
Dust Suppression Net |
GR-YCW-1001 |
4000-6000 |
300-500 |
0.8-1.5 |
20-30 |
Oblong |
4-6 |
Principle of stainless steel sand barrier
Vertical stainless steel sand barrier is mostly sand accumulation type stainless steel sand barrier . The sand prevention principle is mainly as follows: on the sand flow route, no matter any obstacles blocking is encountered, wind speed will be reduced. Part of sand carried by wind will be deposited in front and behind the obstacles. Thus the capacity of wind transport of sand is reduced so as to achieve the effect of sand control. In addition, vertical stainless steel sand barrier can be designed in multiline to get a better desertification prevent and control.

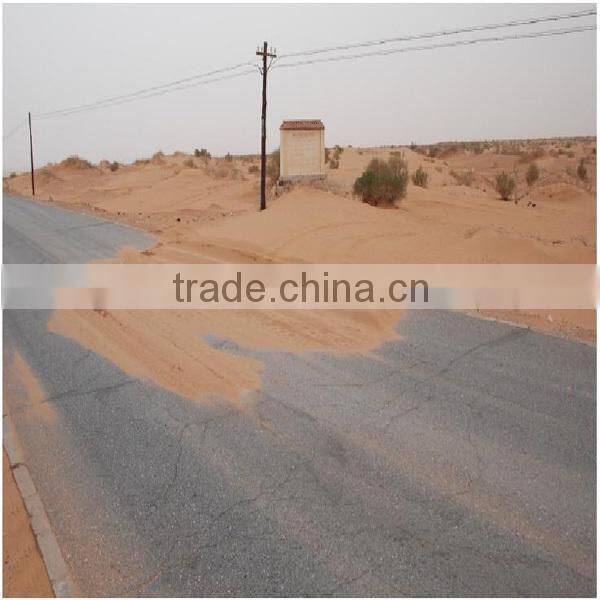

In desert area, the road and railway is likely to be buried by sand,which will affect the normal traffic, or even cause traffic disruption.
Design of stainless steel sand barrier
1, Design idea: attenuate the wind with a wall against the most frequent wind direction and suppress dust with another wall against the non-dominant wind direction
2, Precise control of the wind for variety of bulk material yard. Personalized solution for bulk yards of different heights.

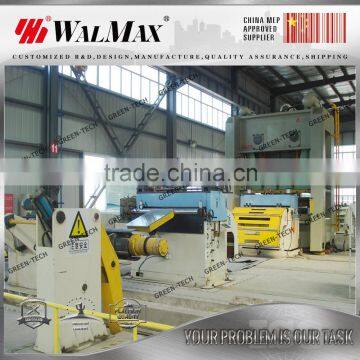

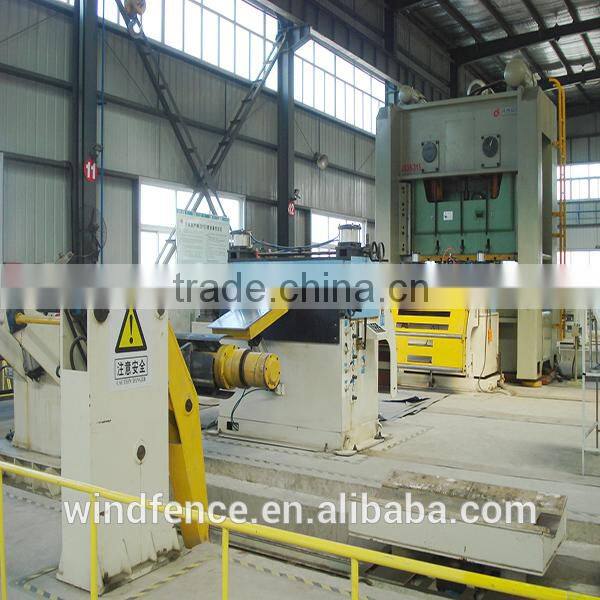

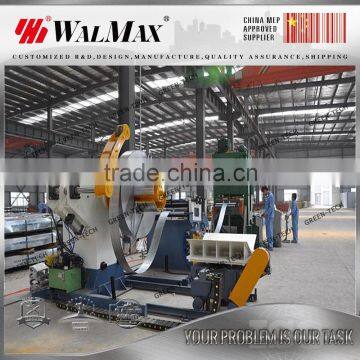

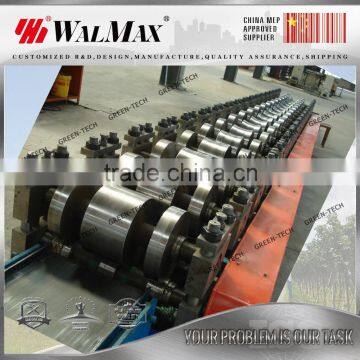

3. Standardized design and factory production of the steel structure, on-site assemble shortens the construction period.
4. The steel structure is formed by lattice truss being only 0.9meters away from the root to open. Comparing to the oblique supporting type wall, it saves an area of 70%.
5, Providing a one-stop turn-key service including design, material supply and installment.

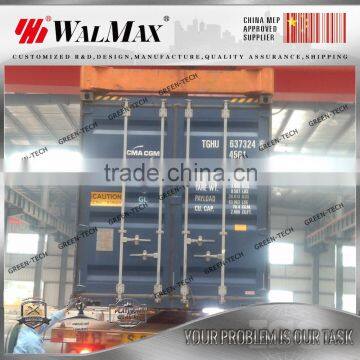

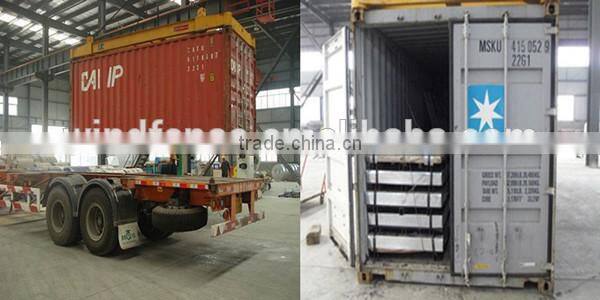

Shipment of stainless steel sand barrier
If you have any question, please inquire me !
