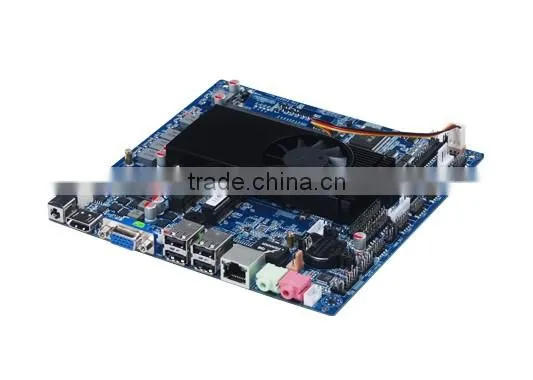

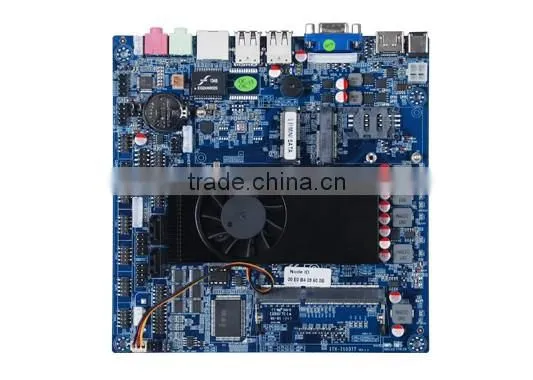

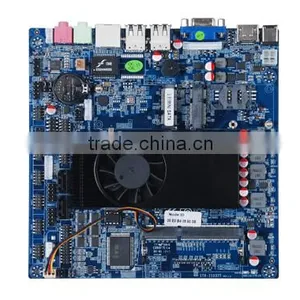

Intel i5 3317u embedded industrial lvds mini ITX motherboard
onboard Intel 3rd core i5-3317U dual core 1.7GHz ,with HM65 chipset,support 8GB notebook ddr3,DC 12V,size:17x17cm.
|
Processor |
CPU |
Intel core i5-3317U |
Frequency |
dual core 1.7G |
|
Chipset |
HM65 |
|
TDP |
17W |
|
Memory |
Slot |
1*SO-DIMM,DDR3 1333MHz Memory |
Capacity |
MAX to 8GB |
|
|
Storage |
Connector |
2*SATA2.0 |
1*MSATA | ||
1*MINI PCIE (For WIFI/3G) | ||
Display |
Chipset |
CPU integrated HD Graphics |
connector |
HDMI,VGA,HDMI header,VGA header,LVDS header |
|
LAN |
chipset |
1*Realtek 8111E 1000M |
connector |
1*RJ45 |
|
Audio |
chipset |
1*Realtek ALC662 HD |
connector |
1*Line-out,1*mic-in,1*Audio,1*Speaker,1*Spdif |
|
|
I/O |
com |
6*COM header |
LPT |
1*LPT header |
|
USB |
4*USB2.0 connector,3*USB2.0 header (expand to 6*USB2.0 connector) |
|
GPIO |
1*GPIO header |
|
|
Header |
1*6pin INVERT header 1*PS/2 header 1*3G-SET jumper 1*F-PANEL header 1*CLR-CMOS jumper 1*AUTO-ON jumper 1*COM-SET 1*SATA-PWR 1*CPU-FAN 1*SYS-FAN |
|
Power |
power supply |
1*DC IN 12V/5A 1*4PIN ATX |
OS |
version |
Win7/Win8/XP/Linux |
BIOS |
|
AMI BIOS |
|
working environment |
working temp |
-10~60℃ |
storage temp |
-10~70℃ |
|
relative humidity |
5%-95% non-condensing |
|
Form factor |
Size |
Thin MINI-ITX 170*170mm |
Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
Application:
Intel i5 3317u embedded industrial lvds mini itx motherboard
Intel i5 3317u embedded industrial lvds mini itx motherboard
Intel i5 3317u embedded industrial lvds mini itx motherboard
