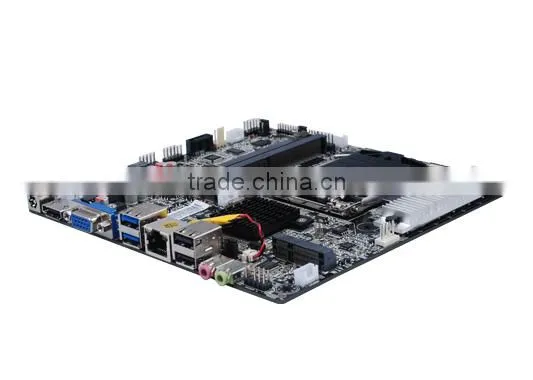

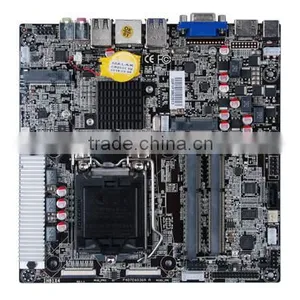

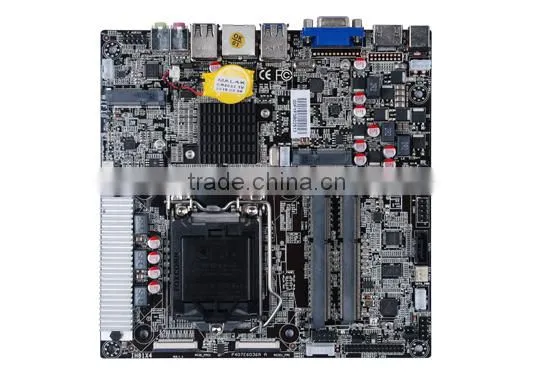

H81 LGA 1150 Digital signage LVDS thin mini itx motherboard

FOB Price

USD $130 - $150 / Piece

1 Piece(Min.Order)

Product Details

Products Status:	Stock	Type:	Embedded Industrial Motherboard	Brand Name:	hcsmart
Model Number:	HC-MH81T2C	Place of Origin:	Guangdong, China

H81 LGA 1150 Digital signage LVDS thin mini itx motherboard

Product Description

Processor	CPU	support Intel LGA1150( Haswell) processor
	Frequency	depend on cpu
	Chipset	H81
	TDP	depend on cpu
Memory	Slot	2*SO-DIMM,DDR3 1600[3F6MHz Memory
Memory	Capacity	MAX to 16G
Storage	Connectors	1*SATA 2.0
		1*MSATA
		1*MINI-PCIE (For WIFIG)
Display	Chipset	depend on cpu
Display	output	VGA,HDMI,dual channel 24bit LVDS header
LAN	chipset	onboard Realtek RTL8111E 1000M
LAN	connectors	1*Rj45
Audio	chipset	onboard Realtek ALC662 decoding
Audio	connectors	1Line-out,1Mic-in,1*Speaker header
I/O	com	1*COM header
	LPT
	USB	2USB3.0 6USB2.0 (4*USB2.0 header)
	PCIE	2*PCIE -FPC connect to graphics card
	Header	1LVDS 1com 1speaker 1USB 1*DC in
Power	power input	DC 12V-19V
OS	Version	Win7/Win8 /Linux
BIOS		AMI BIOS
Working environment	working temp	-10~60℃
	storage temp	-10~70℃
	relative humidity	5%~95% non-condensing
Form factor	Size	mini ITX 170*170mm

Packaging & Shipping

Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air

Our Services

We can give you 1 year warranty and 1% RMA,

To assure the quality, we usually do full test befor shippment to avoid the quality issue

24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.

Shenzhen Hcsmart Technology Co., Ltd.: Contact nameCherry Chen; Phone86-755-66839365; Address1001,Huiyi Wealth Center building ,Zhongxin Road,Dalang,Longhua Shenzhen,Guangdong
