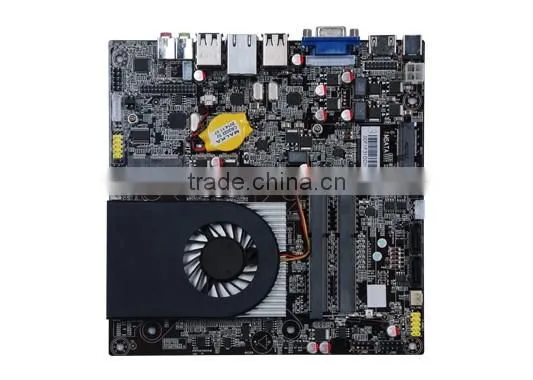

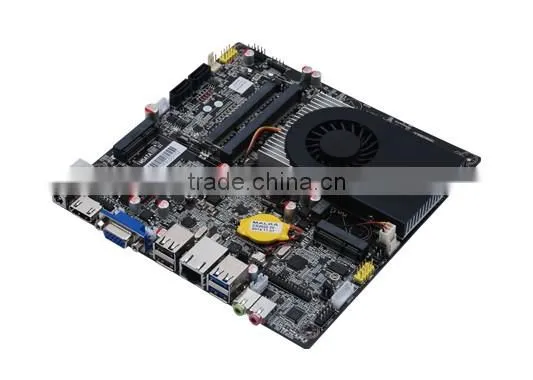

haswell All in one 4th Gen I5 processor 4200Y/4200U embedded motherboard
|
Processor |
CPU |
Intel Haswell 4th Gen core i5-4200Y dual core (4threading) |
Frequency |
dual core 1.4GHz(up to 1.9G) |
|
Chipset |
SOC |
|
TDP |
11.5W |
|
Memory |
slot |
2*SO-DIMM,DDR3L Memory |
capacity |
MAX to 16GB |
|
|
Storage |
connectors |
2*SATA2.0 |
1*MSATA (full height) | ||
1*MINI PCIE half height (For WIFI/3G) | ||
Display |
chipset |
CPU integrated HD Graphics |
output |
HDMI,VGA,HDMI header,VGA header,LVDS header |
|
LAN |
chipset |
1*Realtek 8111E 1000M |
connector |
1*RJ45 |
|
Audio |
chipset |
1*Realtek ALC662 HD |
connector |
1*Line-out,1*mic-in,1*Audio,1*Speaker |
|
|
I/O |
COM |
1*COM header |
LPT |
|
|
USB |
2*USB3.0,6*USB2.0(4*USB2.0 need to be expanded) |
|
GPIO |
|
|
|
Header |
1*F-PANEL |
|
Power |
power supply |
1*DC IN 12V/5A 1*4PIN ATX |
OS |
version |
Win7/Win8/XP/Linux |
BIOS |
|
AMI BIOS |
|
working environment |
working temp |
-10~60℃ |
storage temp |
-10~70℃ |
|
relative humidity |
5%-95% non-condensing |
|
Form factor |
Size |
Thin MINI-ITX 170*170mm |
Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
Application:
