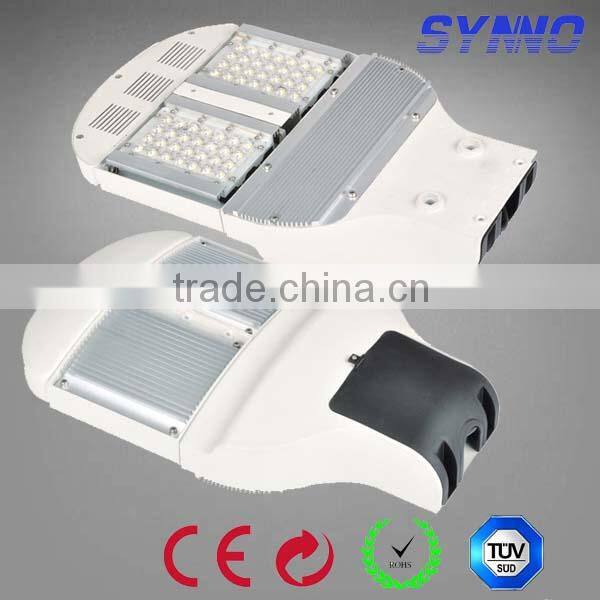

168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led

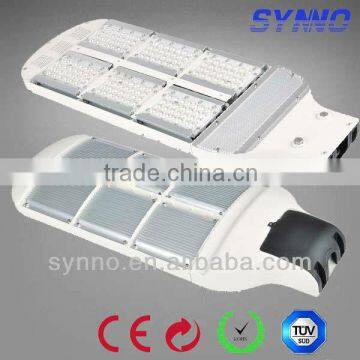

168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led photo-1
168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led photo-2
168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led photo-3

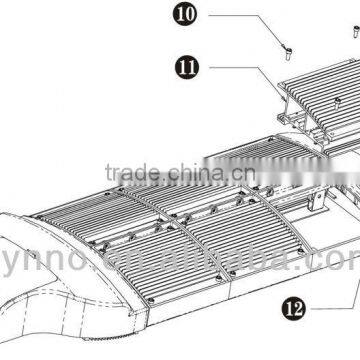

168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led photo-4

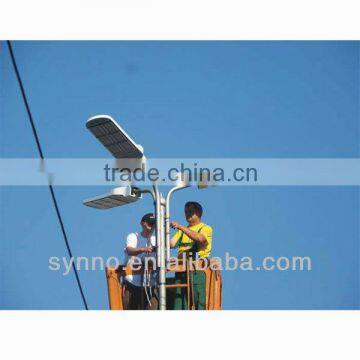

168w AC85-265V 16800lm Pure White 6000k CE/ROHS Street Light Led photo-5
US$ 50 - 300 MOQ: 5 Sets
Key Specifications
Get Latest Price
LED Light Source:
LED
Input Voltage(V):
85-265
Lamp Power(W):
168
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source LED
Input Voltage(V) 85-265
Lamp Power(W) 168
Lamp Luminous Flux(lm) 16800
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification CE
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name SYNNO or OEM
Model Number SL-ST-ST6-168W

Specifications

street light led
1.LED Power: 56/112/168*1W
2.Lamp Maintian flux:75-85lm/W (Pw)
3.Power Factor:>0.94

168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led



Featues

1.Super-slim lamp body with superb heat conduction rate

2.Flexible LED module design. 28*1w each module. Easy maintenance and replacement

3.US Bridgelux high-lumen integrating encapsulated LED chip.

4.Taiwan Meanwell Power Supply (UL listed) , reliable and stable.

5.Environmental friendly and energy-saving. Contains no mercury or lead. Consume 50%-70% less power than HID street light

PTICAL

LED Power Consumption

56X1w

112X1w

168X1W

System Power Consumption

70w

130w

180W

LED Initial Flux

100lm-110lm/per watt (*Pure White 6000K-6500K)

Lamp Maintain Flux

(*After the lens and thermal stabilization)

75lm-85lm/per watt (*Pure White 6000K-6500K)

Illumination (Enadir)

(LED Power=168W PW6500K)

Mount Height= 6M : >102lux

Mount Height= 8M : >57lux

Mount Height= 10M : >37 lux

Mount Height= 12M : >26 lux

CRI

WW: Ra>60 PW:Ra>70

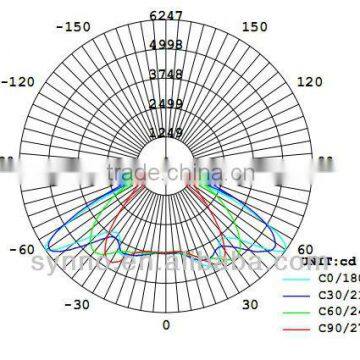

Light Distribution Curve

Asymmetric (Bat Wing)

Beam Angle

140 Degrees

Light Decay

< 15% (20,000 hours)

ELECTRICAL

Input Voltage

AC85V-AC265V, AC277V+ (50Hz-60Hz)

Working Voltage

36VDC

TJ

60 °C ±10 %

Lamp Efficiency

>88%

Power Factor

>0.95

IP Grade

IP65

MECHANICAL

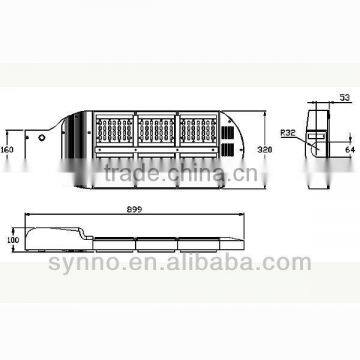

Dimensions

L76*W32*H7.5cm(112W)

Net Weight

10.5KG±5 %(112W)/7.5KG±5 %(56W)

13.5KG±5 %(168W)

Material

Aluminum Alloy

Working Environment

Temp: -40°C ~ 55°C Humid:10%-90%

Dimension of pipe for installation

Φ62mm

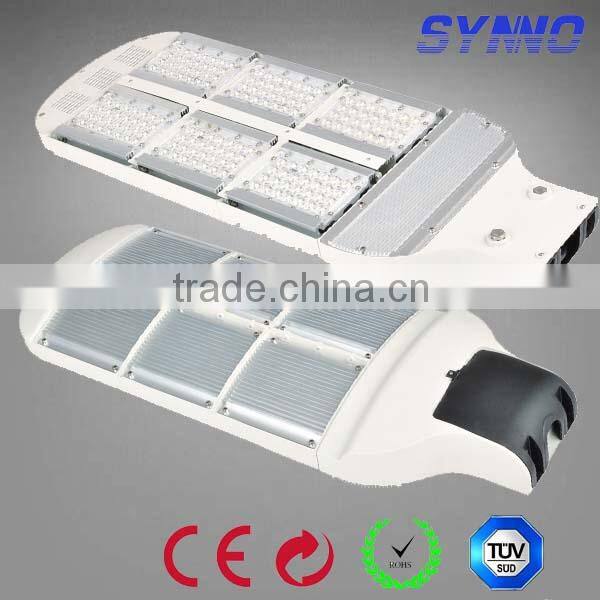

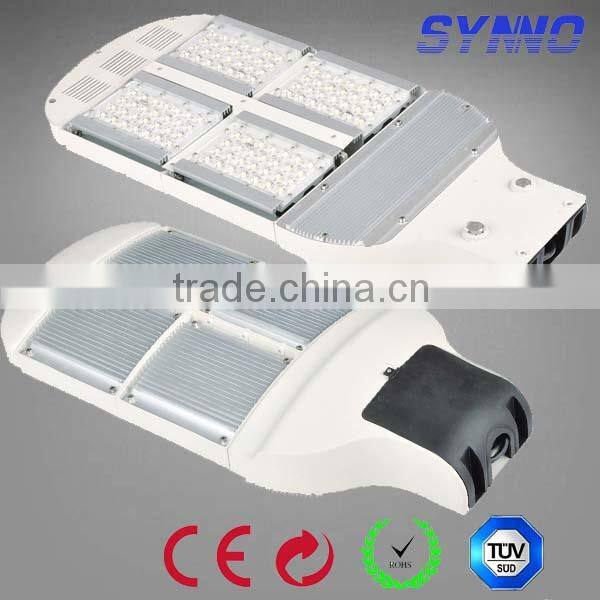

 168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led

Packaging

1pcs/CTN or according to customer's requirement
168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led
Payment Mathod:

1.Paypal

2.Credit Card

3.Wire Transfer

4.West Union

5.L/C 30% advance; Balance on fax copy of BOL

Shipping Mathod and Shipping time.

1. Shipping by EXPRESS:Sample can be delivered within 2-5 days on customer request, around 5-7 working days to arrive;

2. Shipping by SEA : Big order can be delivered within 10-25 days on customer request,

After-sales Policy:

There are two-year guarantee for the inserted driver of the light and three-year guarantee for the led source on the condition of the light being used under the normal environment, suitable maintenance and storage; any abnormal using is without guarantee. We can provide the repair, exchange (the components and parts) or replacement with a new item. The three schemas are for your option. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.

Pictures and Label Policy

We offer free pictures with your logo if you have experience in our store. We also accept change label business. Custom label's minimum order quantity is 300, it cost USD50.

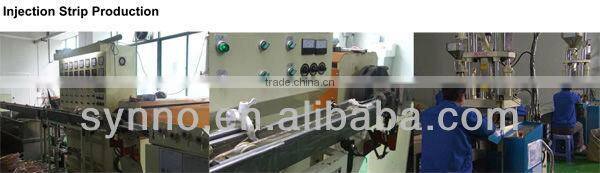

Factory Photo
168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led168w AC85-265V 16800lm pure white 6000k CE/ROHS street light led
