Specifications
led street lighting1.LED Power: 56/112/168*1W
2.Lamp flux:100-110lm/W (Pw)
3.Input Voltage:AC85V~265V
4.Power Factor>0.94

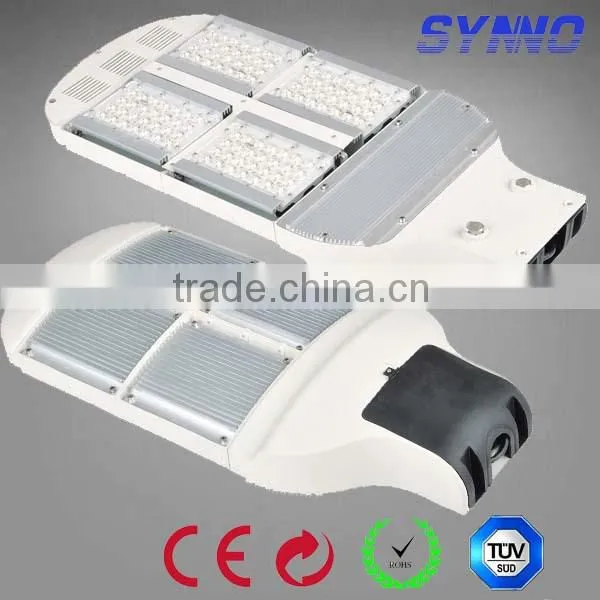

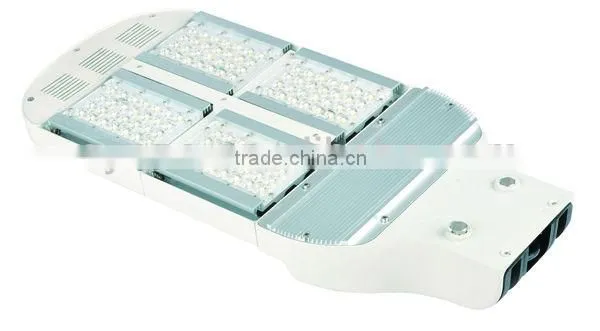

56w 112w 168w 224w AC85v-265v IP65 led street lighting
led street lighting features
| Item | 56w |
| Input Voltage | 85 ~ 264VAC |
| Frequency Range | 47 ~ 63 Hz |
| Power Factor | > 0.9 |
| Total Harmonic Distortion(THD) | < 20% |
| Power Efficiency | 85% |
| LED Working Voltage | 24VDC |
| LED Consumption | 56W |
| Power Supply | 10W |
| Consumption | |
| LED Luminous | ≥ 80 lm/w |
| Efficiency | |
| LED Initial Flux | 5,000lm(Tj=25°C) |
| LED Maintain Flux | 4,600lm(Tj=60°C,Ta=25°C) |
| Lamp’s Flux | 4,200lm(Tj=60°C,Ta=25°C) |
| Lamp’s Efficiency(%) | >90% |
| Illumination(E) | (height=6m):≥26LUX |
| (replaced sodium light of 65LUX) | |
| (height=8m):≥15LUX | |
| (replaced sodium light of 38LUX) | |
| (height=10m):≥9LUX | |
| (replaced sodium light of 20LUX) | |
| (height=12m):≥6LUX | |
| (replaced sodium light of 15LUX) | |
| Effective Illuminated | (height=6m): 20×8m (height=10m): 33×13m |
| Area | (height=8m):26×10m (height=12m):40×16m |
| Color Temperature(CCT) | Pure White : 5,000k ~ 7,000k, Warm White: 3,000k ~ 4,000k |
| Color Index(CRI) | Ra>75 |
| Light Source | Bridgelux 45mil LED |

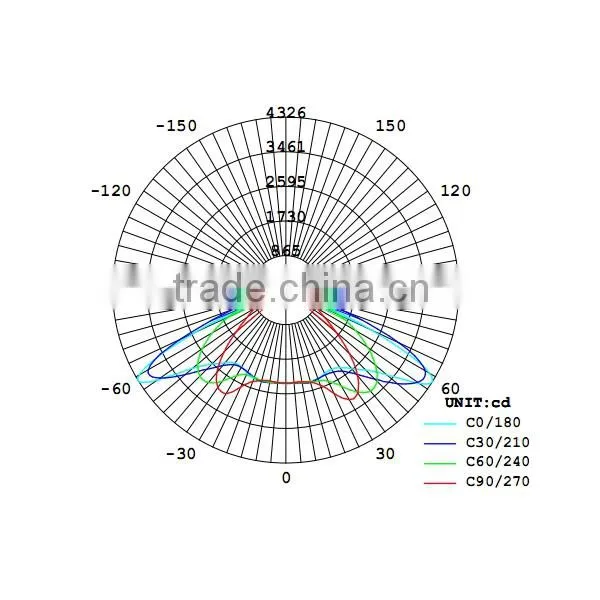

| Light Distribution | Asymmetric (Bat Wing)/ Rectangular Beam |
| Curve/Beam Pattern | |
| The Maximum Light | 120º:The Horizontal Axis:110º, The Vertical Axis:45º;140º The Horizontal Axis:130º, The Vertical Axis:45º |
| Intensity Angle | 120º:The Horizontal Axis:120º, The Vertical Axis:60º; 140º The Horizontal Axis: 140º, The Vertical Axis:60º |
| Junction Temperature(Tj) | 60°C±10% (Ta=25°C) |
| System Resistance(Rja) | 0.56°C/W |
| Working Temperature | - 30 °C~ 50 °C |
| Working Humidity | 10% ~ 90% RH |
| Storage Temperature | 10 °C~ 85 °C |
| Working Life | > 50,000 Hrs |
| Light Body | Aluminum Alloy and PC |
| & Lampshade Material | |
| Dimensions (mm) | 540(L)×315(W)×90(H) |
| Net Weight | 7 kg |
| IP Rating | IP65 |
1.Super-slim lamp body with superb heat conduction rate

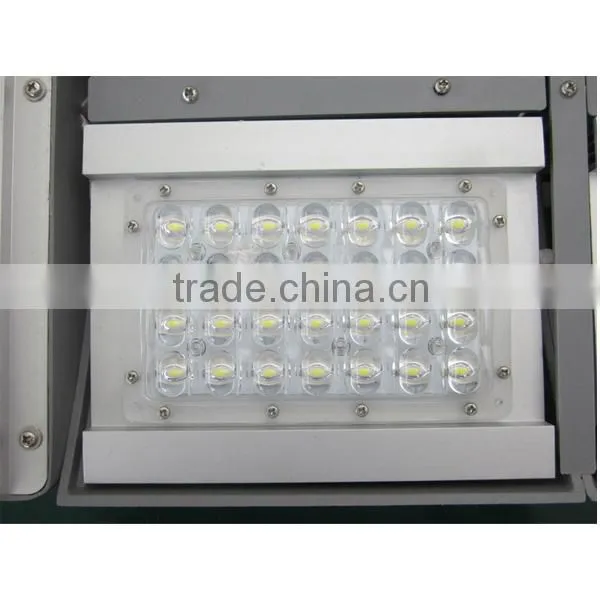

2.Flexible LED module design. 28*1w each module. Easy maintenance and replacement
3.US Bridgelux high-lumen integrating encapsulated LED chip.
4.Taiwan Meanwell Power Supply (UL listed) , reliable and stable.
5.Environmental friendly and energy-saving. Contains no mercury or lead. Consume 50%-70% less power than HID street light
Packaging
1pcs/CTN.
Payment Mathod:
1.Paypal
2.Credit Card
3.Wire Transfer
4.West Union
5.L/C 30% advance; Balance on fax copy of BOL
Shipping Mathod and Shipping time.
1. Shipping by EXPRESS:Sample can be delivered within 2-5 days on customer request, around 5-7 working days to arrive;
2. Shipping by SEA : Big order can be delivered within 10-25 days on customer request,
After-sales Policy:
There are two-year guarantee for the inserted driver of the light and three-year guarantee for the led source on the condition of the light being used under the normal environment, suitable maintenance and storage; any abnormal using is without guarantee. We can provide the repair, exchange (the components and parts) or replacement with a new item. The three schemas are for your option. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Pictures and Label Policy
We offer free pictures with your logo if you have experience in our store. We also accept change label business. Custom label's minimum order quantity is 300, it cost USD$50.
