PCB Design Printed Circuit Board Assembly

PCB Design Printed Circuit Board Assembly photo-1
PCB Design Printed Circuit Board Assembly photo-2
PCB Design Printed Circuit Board Assembly photo-3
PCB Design Printed Circuit Board Assembly photo-4
PCB Design Printed Circuit Board Assembly photo-5
PCB Design Printed Circuit Board Assembly photo-6
US$ 0.001 - 0.001 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Shenunion
Model Number:
SLPXL-6LAJ012
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name Shenunion
Model Number SLPXL-6LAJ012
Number of Layers 6-Layer
Base Material FR4
Copper Thickness 1oz
Board Thickness 1.6mm
Min. Hole Size 4mil
Min. Line Width 4mil
Min. Line Spacing 4mil
Surface Finishing HASL

Specifications

PCB design printed circuit board assembly
1,Professional maufacture
2,Competitive Price
3,High Quality
4,Fast delivery

PCB design printed circuit board assembly



1.Our service:



1.PCB layout, PCB design

2.Make high difficulty PCB(1 to 38 layers)

3.Provide all Electronic component

4.PCB assembly

5.Write programs for clients

6.PCBA/finished product Test. etc.



2.PCB specifications:



  Item Specification
1 Numbr of Layer 1-38Layers
2 Material FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate
3 Finish Board Thickness 0.2mm-6.00 mm(8mil-126mil)
4 Minimun Core Thickness 0.075mm(3mil)
5 Copper Thickness 1/2 oz min;12 oz max
6 Min.Trace Width & Line Spacing 0.075mm/0.1mm(3mil/4mil)
7 Min.Hole Diameter for CNC Driling 0.1mm(4mil)
8 Min.Hole Diameter for punching 0.9mm(35mil)
9 Biggest panel size 610mm*508mm
10 Hole Positon +/-0.075mm(3mil) CNC Driling
11 Conductor Width(W) 0.05mm(2mil)or;+/-20% of original artwork
12 Hole Diameter(H) PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil)
13 Outline Tolerance 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching
14 Warp & Twist 0.70%
15 Insulation Resistance 10Kohm-20Mohm
16 Conductivity <50ohm
17 Test Voltage 10-300V
18 Panel Size 110×100mm(min);660×600mm(max)
19 Layer-layer misregistration 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max
20 Min.spacing between hole edge to circuity pqttern of an inner layer 0.25mm(10mil)
21 Min.spacing between board oulineto circuitry pattern of an inner layer 0.25mm(10mil)
22 Board thickness tolerance 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil)
23 Impedance Control +/-10%







3.PCB Assembly:



Technical



1).Professional surface mounting and through hole soldering technology;

2).Various sizes,like 1206,0805,0603 components SMT  technology;

3).ICT(In Circuit Test),FCT(Functional Circuit Test)  technology;

4).Nitrogen gas reflow soldering  technology for SMT;

5).High standard SMT&Solder Assembly line;

6).High density interconnected board placement technology capacity.

Quote requirement

1).The detailed files(Gerber files,specification and  BOM);

2).Clear pictures of PCBA or samples for us;

3).PCBA Test method.

Pictures for your reference:



PCB Assembly series:

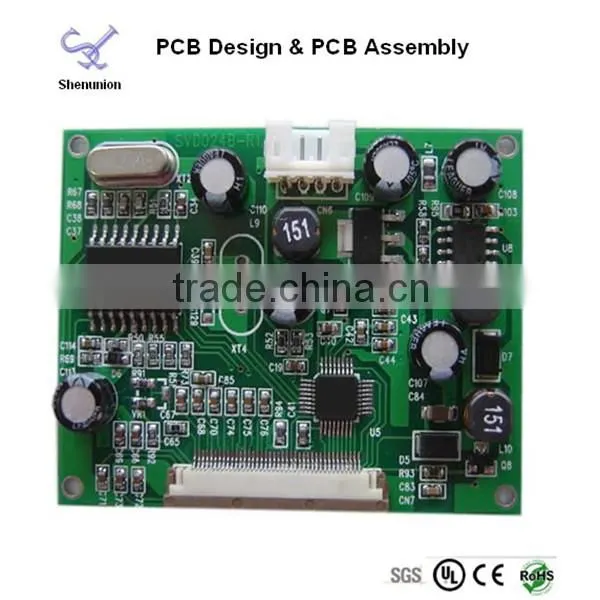

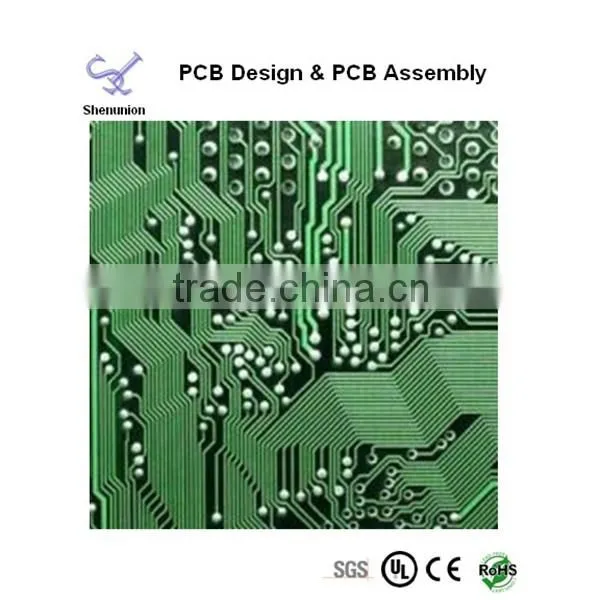

PCB design printed circuit board assembly



PCB design printed circuit board assemblyPCB design printed circuit board assembly





 Factory picture:





 PCB design printed circuit board assemblyPCB design printed circuit board assembly



Logistics:



PCB design printed circuit board assembly



If you have any question,feel free to contact us.Thank you.
