1,Multilayer PCB Assembly PCB Board PCB design2,Competitive Price,High Quality
3,Fast delivery,OEM PCB Assembly

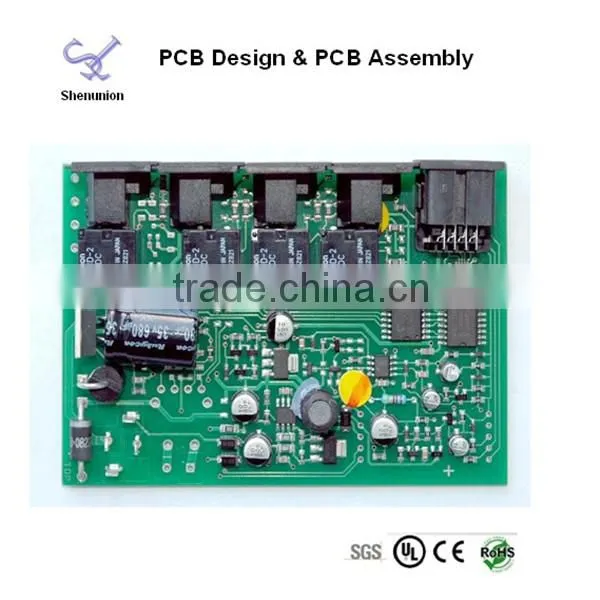

PCB design/assembly smartphone/mobile phone/weighing scale/air conditioner universal/mobile charger pcb board manufacture
1.Our service:
1.PCB layout, PCB design
2.Make high difficulty PCB(1 to 38 layers)
3.Provide all Electronic component
4.PCB assembly
5.Write programs for clients
6.PCBA/finished product Test. etc.
2.PCB specifications:
| Item | Specification | |
| 1 | Numbr of Layer | 1-38Layers |
| 2 | Material | FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate |
| 3 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 4 | Minimun Core Thickness | 0.075mm(3mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 7 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 8 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 9 | Biggest panel size | 610mm*508mm |
| 10 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 11 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
| 12 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
| 13 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching |
| 14 | Warp & Twist | 0.70% |
| 15 | Insulation Resistance | 10Kohm-20Mohm |
| 16 | Conductivity | <50ohm |
| 17 | Test Voltage | 10-300V |
| 18 | Panel Size | 110×100mm(min);660×600mm(max) |
| 19 | Layer-layer misregistration | 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max |
| 20 | Min.spacing between hole edge to circuity pqttern of an inner layer | 0.25mm(10mil) |
| 21 | Min.spacing between board oulineto circuitry pattern of an inner layer | 0.25mm(10mil) |
| 22 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
| 23 | Impedance Control | +/-10% |
3.PCB Assembly:
Technical
1).Professional surface mounting and through hole soldering technology;
2).Various sizes,like 1206,0805,0603 components SMT technology;
3).ICT(In Circuit Test),FCT(Functional Circuit Test) technology;
4).Nitrogen gas reflow soldering technology for SMT;
5).High standard SMT&Solder Assembly line;
6).High density interconnected board placement technology capacity.
Quote requirement
1).The detailed files(Gerber files,specification and BOM);
2).Clear pictures of PCBA or samples for us;
3).PCBA Test method.
Pictures for your reference:
PCB series:
Factory picture:
Logistics:
If you have any question,feel free to contact us.Thank you.
