PCB control panel single or muti-layer PCB OEMhigh quanlity with shortest timesingle or muti-layer PCB OEM
PCB control panel single or muti-layer PCB OEM
With good quanlity and shortest time.
Our services:
1. PCB OEM/ODM
2. PCB Clone/Copy
3. PCBA Clone/Copy
4. PCB/PCBA Design
5. HASLOSPENIGGarbon oilsolder Masketc PCB
6. FR1FR4CEM1CEM3Aluminum ect PCB
7. LED PCB
8. Turnkey service
9. PCB assembly.
Our PCB board manufacture and PCB assembly service:
PCB board file with parts list provided by customers
PCB board made, circuit board parts purchased by us
PCB board with parts assembled
Electronic testing circuit board or PCBA
Fast delivery, anti-static package
RoHS Directive-compliant, lead-free
One stop service for PCB design, PCB layout, PCB manufacture, components purchasing
PCB assembly, test, packing and PCB delivery
Quotation requirement for pcb&pcb assembly:
Gerber file and Bom list
Clear pictures of pcba or pcba sample for us
Test method for PCBA
Technical Specification For PCB
Number of Layer |
1,2,4 or 6,upto 18 layer |
Order Quantity |
1 to 50,000 |
Board Shape |
Retangular,round,slots,cutouts,complex,irregular |
Board Type |
Rigid, Flexible, Rigid-flexible |
Board Material |
FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
Board Cutting |
Shear,V-score,Tab-routed |
Board Thickness |
0.2-4.0mm, Flex 0.01-0.25mm |
Copper Weight |
1.0, 1.5, 2.0 oz |
Solder Mask |
Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
Silk Screen |
Double-sided or single-sided in white,yellow,black,or negative |
Silk Screen Min Line Width |
0.006'' or 0.15mm |
Max Board Dimensions |
20 inch*20inch or 500mm*500mm |
Min Trace/Gap |
0.10mm, or 4mils |
Min Drill Hole Diameter |
0.01'',0.25mm, or 10mils |
Surface Finish |
HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
Board Thickness Tolerance |
±10% |
Copper Weight Tolerance |
± 0.25 oz |
Minimal Slot Width |
0.12'', 3.0mm, or 120mils |
V-Score Depth |
20-25% of board thickness |
Design File Formate |
Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG
|
PCB Assembly Capabilities
Quantity |
Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
Type of Assembly |
SMT,Thru-hole |
Solder Type |
Water Soluble Solder Paste,Leaded and Lead-Free |
Components |
Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
Bare Board Size |
Smallest:0.25*0.25 inches Largest:20*20 inches |
File Formate |
Bill of Materials Gerber files Pick-N-Place file |
Types of Service |
Turn-key,partial turn-key or consignment |
Component packaging |
Cut Tape,Tube,Reels,Loose Parts |
Turn Time |
Same day service to 15 days service |
Testing |
Flying Probe Test,X-ray Inspection AOI Test |
PCB assembly process |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Technical requirement for pcb&pcb assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
----ICT(In Circuit Test),FCT(Functional Circuit Test) technology
----PCB Assembly With UL,CE,FCC,Rohs Approval
----Nitrogen gas reflow soldering technology for SMT.
----High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity

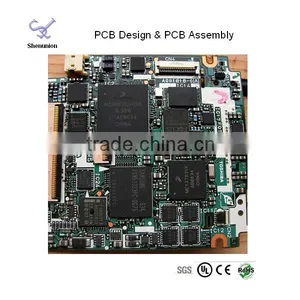

Picture:
Controller series:

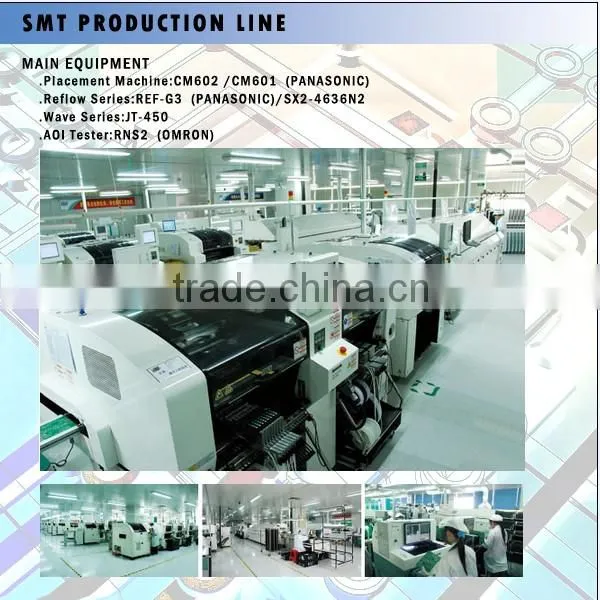

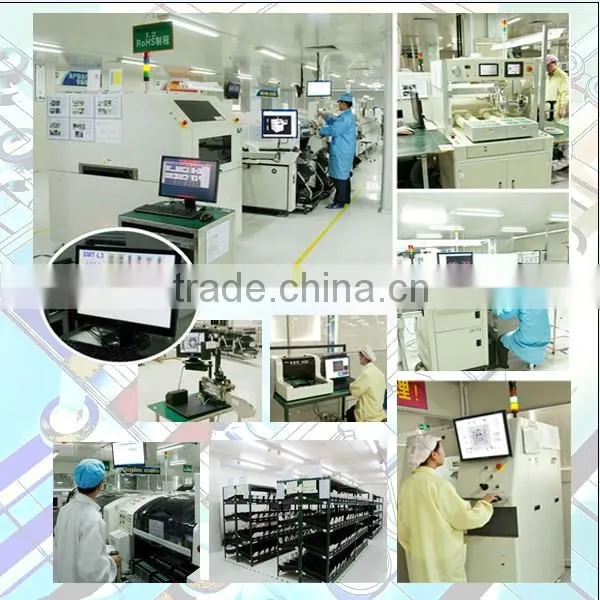

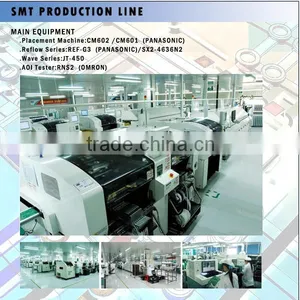

Factory picture:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
You should pay attention to this:
3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. One month for return policy from the arrival date.
2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.
3. If the items are defective please notify us within 3 days after arrival.
4. Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Other Policies:
1. About MOQ which depends on your order.
2. About warranty we give one month for refund or replacement.
3. About sample which needs your charge.
4. About inventory which changes everyday and depends on your order.
5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.
We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
