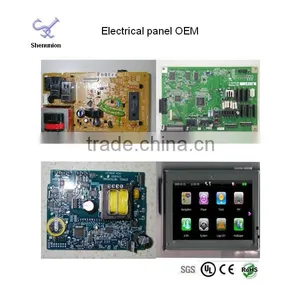

electrical panel PCB board
- 1000 Case / Cases per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | China | Brand Name: | Shenunion | Model Number: | SLPXL-6LAJ019 |
Base Material: | FR4 | Copper Thickness: | 1oz | Board Thickness: | 1.6mm |
Min. Hole Size: | 4mil | Min. Line Width: | 4mil | Min. Line Spacing: | 4mil |
Surface Finishing: | HASL |
Product Description
Specifications
electrical panel PCB boardProfessional maufacture
Competitive Price
High Quality
Fast delivery
electrical panel PCB board
1.Our service:
1.PCB layout, PCB design
2.Make high difficulty PCB(1 to 38 layers)
3.Provide all Electronic component
4.PCB assembly
5.Write programs for clients
6.PCBA/finished product Test. etc.
2.PCB specifications:
Item | Specification | |
1 | Numbr of Layer | 1-38Layers |
2 | Material | FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate |
3 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
4 | Minimun Core Thickness | 0.075mm(3mil) |
5 | Copper Thickness | 1/2 oz min;12 oz max |
6 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
7 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
8 | Min.Hole Diameter for punching | 0.9mm(35mil) |
9 | Biggest panel size | 610mm*508mm |
10 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
11 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
12 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
13 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching |
14 | Warp & Twist | 0.70% |
15 | Insulation Resistance | 10Kohm-20Mohm |
16 | Conductivity | <50ohm |
17 | Test Voltage | 10-300V |
18 | Panel Size | 110×100mm(min);660×600mm(max) |
19 | Layer-layer misregistration | 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max |
20 | Min.spacing between hole edge to circuity pqttern of an inner layer | 0.25mm(10mil) |
21 | Min.spacing between board oulineto circuitry pattern of an inner layer | 0.25mm(10mil) |
22 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
23 | Impedance Control | +/-10% |
3.PCB Assembly:
Technical
1).Professional surface mounting and through hole soldering technology;
2).Various sizes,like 1206,0805,0603 components SMT technology;
3).ICT(In Circuit Test),FCT(Functional Circuit Test) technology;
4).Nitrogen gas reflow soldering technology for SMT;
5).High standard SMT&Solder Assembly line;
6).High density interconnected board placement technology capacity.
Quote requirement
1).The detailed files(Gerber files,specification and BOM);
2).Clear pictures of PCBA or samples for us;
3).PCBA Test method.
PCBA series:
PCB series(single or muti-layer):
Cold storage controller series:
Factory picture:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
You should pay attention to this:
3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. One month for return policy from the arrival date.
2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.
3. If the items are defective please notify us within 3 days after arrival.
4. Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Other Policies:
1. About MOQ which depends on your order.
2. About warranty we give one month for refund or replacement.
3. About sample which needs your charge.
4. About inventory which changes everyday and depends on your order.
5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.
We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
