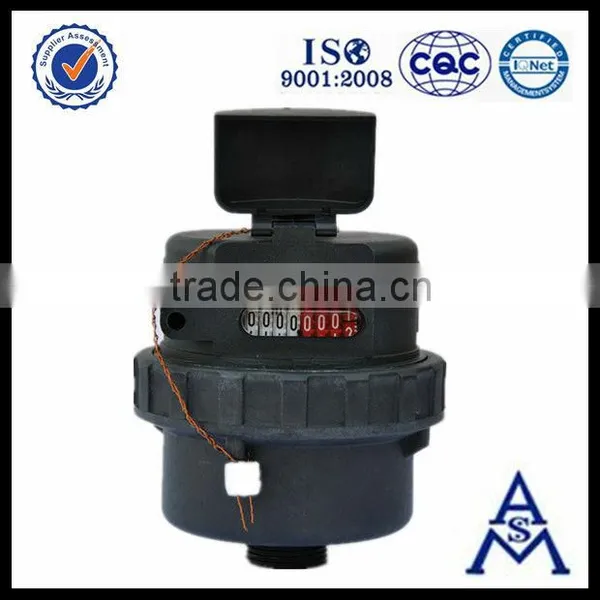

LXH-15S-40S Volumetric Rotary Piston Plastic Class C Water Meter

Specifications

volumetric rotary piston plastic water meters
1.ISO 4064 class C/D
2.installed at a horizontal, vertical
3. high-quality ma

volumetric rotary piston plastic water  meters

APPLICATION
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline

FEATURES
Adopt volumetric rotary piston principle of measurement with conformity to ISO 4064 class C/D. High sensitivity enables the accurate measurement even at a low flow rate of 4 1/h No location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline. Register is sealed with a special liquid to keep a clear reading in long term service Mechanical parts use  of high-quality material to ensure a stable performance.

WORKING CONDITION
Water temperature ≤50 °c

Water pressure ≤1.0 MPa  (10 bar)

COMPLIANCE WITH  STANDARD
ISO 4064 Class C / D



Type	Size (mm)	Class	qs Max.Flow	qp Nominal Flow	qt Transitional Flow	qmin Min. Flow	Min.Reading	Max.Reading
			m3/h		L/h		m3
LXH-15S	15	C	3	1.5	22.5	15.0	0.0001	9999
		D			17.25	11.25
LXH-20S	20	C	5	2.5	37.5	25	0.0001	9999
		D			28.75	18.75



Type	Size	Length	Width	Connection Thread	Weight
LXH-15S	15	115	90	G3/4B	0.6kg
LXH-20S	20	190	95	G1B	0.8kg
