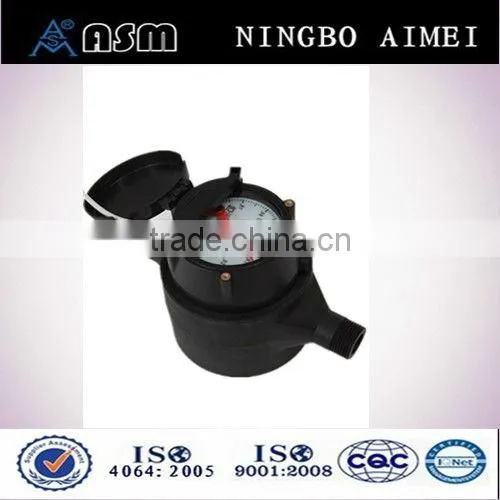

Volumetric Piston Gallon PD Water Meter

Name: Volumetric Piston Gallon PD Water Meter
Brand: AIMEI(ASM)
SKU: 122986277
Availability: InStock

Volumetric Piston Gallon PD Water Meter thumbnail-1

Volumetric Piston Gallon PD Water Meter photo-1

US$ 15 - 30 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

AIMEI(ASM)

Model Number:

PD-METER

Contact Supplier Request Quote Chat Now

Ningbo Aimei Meter Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name AIMEI(ASM)

Model Number PD-METER

Specifications

AWWA C710 Standard
Water Temperature: 0 ~26(80F)
Water Pressure: 10 bar(150psi)
10 gallons per pulse

Application:

Measuring the volume of cold potable water in residential, commercial and industrial services where flow is in one direction only.

Operation:

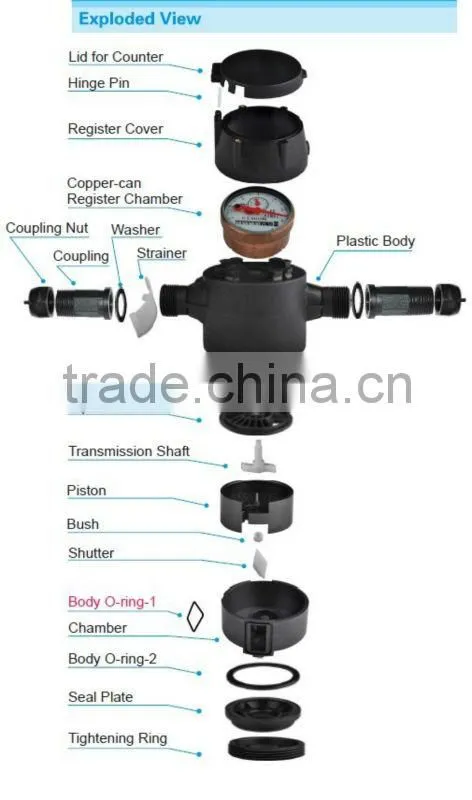

PD meter is an oscillating piston style, positive displacement water meter. The meter utilizes a piston that water flow rotates in a measuring chamber, each piston revolution being equivalent to a known volume of water.

Features:

l Comply to AWWA Standard C710

l The main case is made of engineered polymer, lead free

l Tamper proof screw is added to the meter

l Pulse output prepared (1 pulse per 10 gallons)

MAIN TECHNICAL DATA (AWWA C710)

Meter Size	5/8” x 1/2”	5/8” x 3/4”
Bore Diameter	5/8” (DN 15mm)
Typical Operating Range (100% +/- 1.5%)	1/2 – 25 GPM (0.11 – 5.7 m3/h)
Low Flow (Min. 95%)	1/4 GPM (0.057 m3/h)
Maximum Continuous Operation	15 GPM (3.4 m3/h)

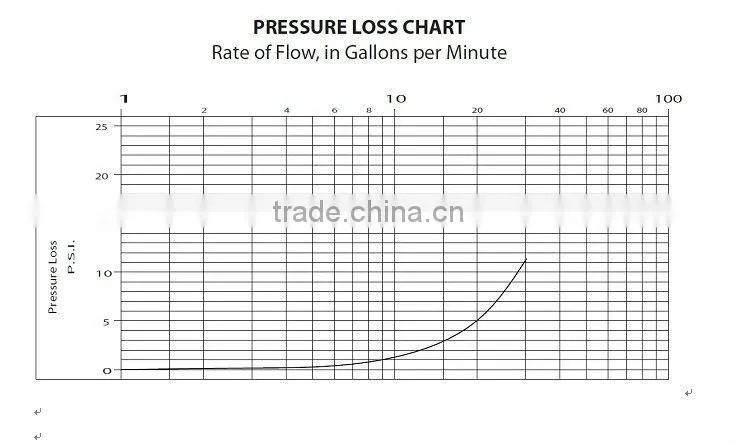

Pressure Loss at Maximum Continuous Operation	4.5 PSI at 15 GPM (0.3 bar at 3.4 m3/h)
Maximum Operating Pressure	150 PSI (10 bar)
Maximum Operating Temperature	120°F (50°C)
Measuring Element	Oscillating Piston, positive displacement
Register capacity	10,000,000 Gallons 1,000,000 Cubic Feet 100,000 m3 6 digit wheels
Meter Spud Thread and Coupling Nut	3/4”	1”
Tailpiece Pipe Thread (NPT)	1/2”	3/4”
Meter Length (Screw Ends)	7-1/2” (190mm)
Weight	2-1/2 lbs. (1.0 kg)
