Help CenterWoltman Bulk Water Meter
Related Products
-
Volumetric Piston Gallon PD Water MeterUS$ 15 - 30MOQ: 100 Pieces -
Multi Jet AMR Water MeterUS$ 2 - 50MOQ: 1000 Pieces
-
Single Jet AMR Water MeterUS$ 2 - 50MOQ: 1000 Pieces
-
Multi Jet Digital Water MeterUS$ 2 - 50MOQ: 1000 Pieces
-
Multi Jet Domestic Water Meter LXSG-15S-50SUS$ 2 - 50MOQ: 1000 Units
Specifications
Woltman Water meterDN size: 40 to 600
Industry
Pulse output,remote reading
Application______________________________________________________________________
Measuring the volume of cold (hot) water passing through the pipeline
Feature_________________________________________________________________________
Removable element structure, easy installation and maintenance, register for universal
use within this range detachable without Removing the meter from the pipeline;
Dry-dial, Magnetic drive sensitive action, small pressure loss;
Vacuum sealed register ensures the dial keep free from fog and Keep the reading
clear in a long term service;
Selected high quality materials for steady & reliable characteristic;
Technical data conform to international standard ISO 4064.
.
Working condition_____________________________________________________________
Water temperature: 0.1°C~50°C ( 0.1°C~90°C for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)
Maximum permissible errors
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot
water meter)
MAIN TECHNICAL SPECIFICATIONS ___________________________________________________________
DIMENSIONS AND WEIGHTS___________________________________________________

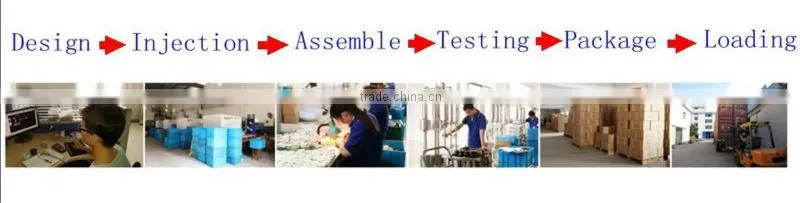

PRODUCING PROCESS________________________________________________________

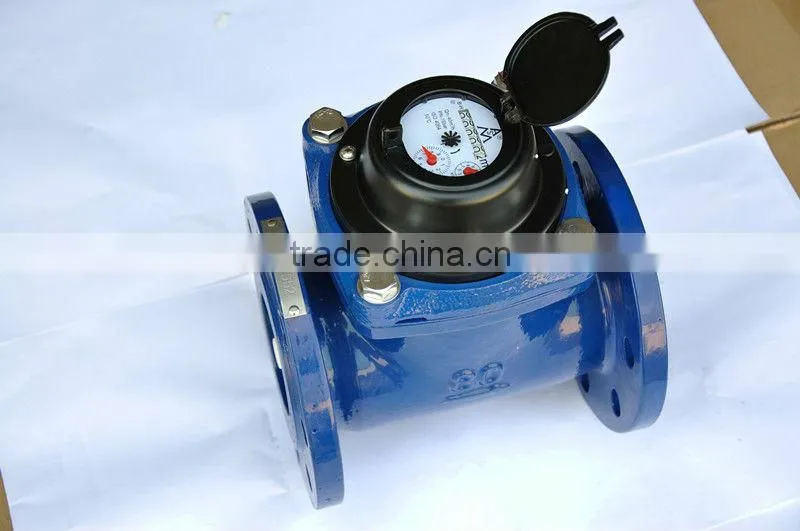

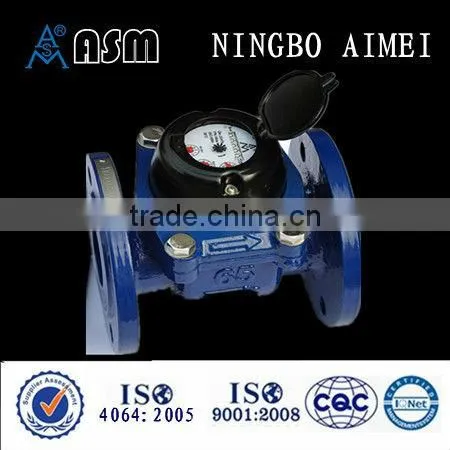

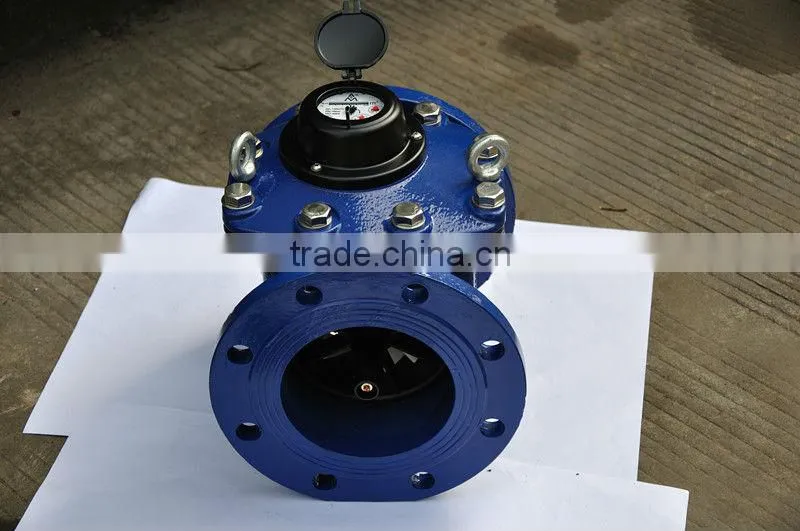

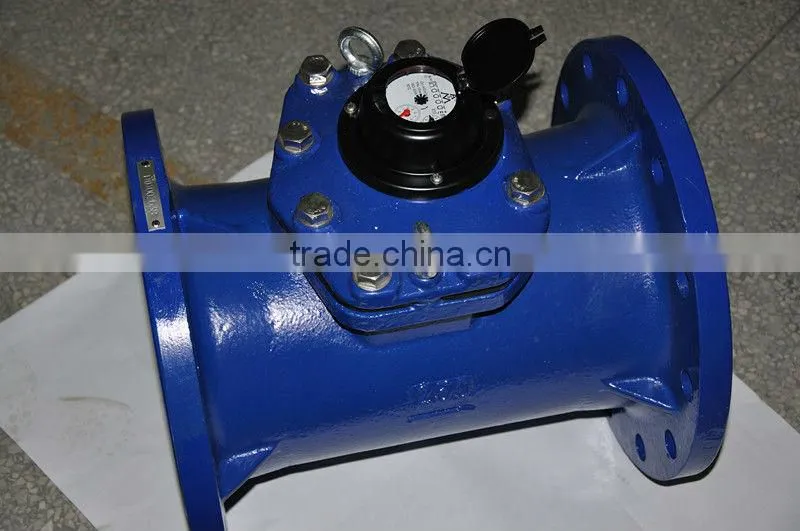

PRODUCT DETAILS

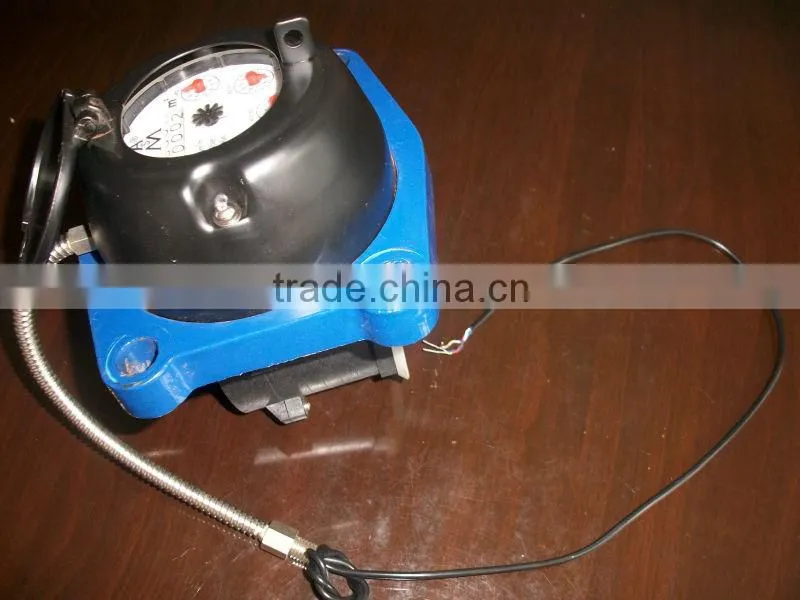

REMOTE READING(PULSE OUTPUT) REGISTER
