AMP2000-U ASPHALT PLANT

AMP2000-U ASPHALT PLANT thumbnail-1
AMP2000-U ASPHALT PLANT photo-1
US$ 550,000 - 650,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XUETAO
Model Number:
AMP2000-U
Contact Supplier Request Quote Chat Now
Wuxi Xuetao Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name XUETAO
Model Number AMP2000-U

Specifications

Capacity: 120-160t/h
Mixing Capacity: 2,300kg/batch
Under type finished material storage silo
Reduce the space efficiently

This kind of Asphalt Mixing Plant with under type finished material storage silo, has compact installing area, which is designed for a production of 120~160 t/h of road mix asphalt with a finished product temperature of 160ºC, under the following standard conditions:

·           Maximum production: 160 t/h

·           Rate output included aggregate, bitumen and filler

·           Maximum mixing capacity: 2,300 kg / batch

·           Aggregate bitumen ratio accuracy:≤±0.3%

·           Bitumen weighing accuracy:  ≤±1%     (Continuous real-time detect)

·           Aggregate weighing accuracy:  ≤±2%      (Continuous real-time detect)

·           Filler weighing accuracy:≤±2%      (Continuous real-time detect)

·           Aggregate temperature accuracy: ≤±3ºC

·           Fuel consumption (diesel):≤6.5 kg/t

·           Working environment noise level:≤80 db(A)

·           Noise level in control room: ≤70 db(A)

·           Dust emission (Filter bag system):  ≤90 mg/Nm3

·           Standard layout area approx. 35 m x 35 m

             (Flexible to be adjusted to fit actual job site limitation)

·           Working voltage:  380V/50Hz, 380V/60Hz

·           Operation:  Automatic / Manual / Fully computer controlled

·           Operation voltage:  423 kW

·           Desired environment temperature:  20 ~ 50ºC

·           Working altitude level:   2,500 m

·           Aggregate moisture content;  ≤5%

·           Aggregate density;  1,600 kg/m3

·           Ph value: ≥7

·           Material not porous and hygroscopic with normal shape

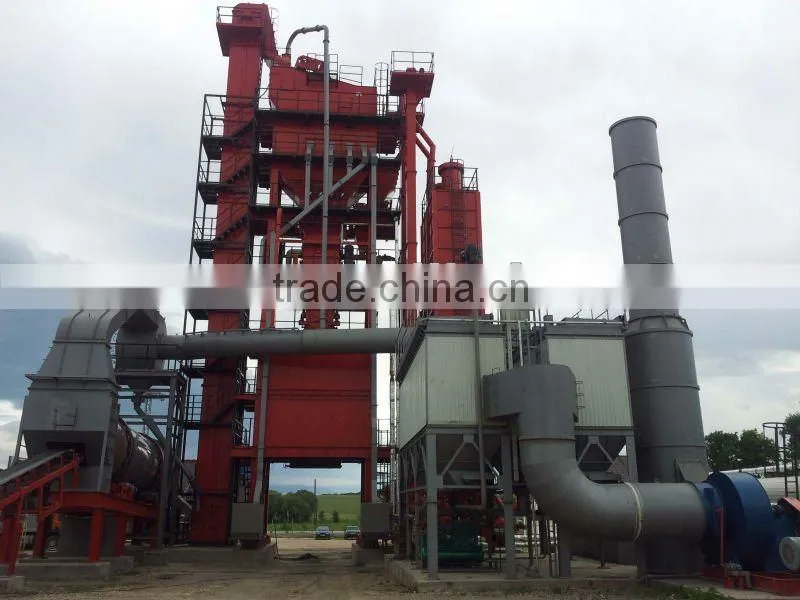

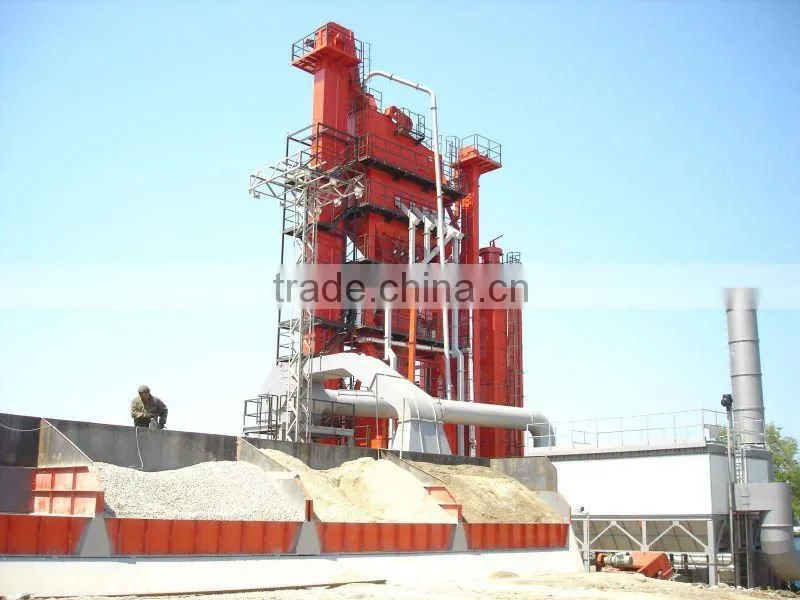

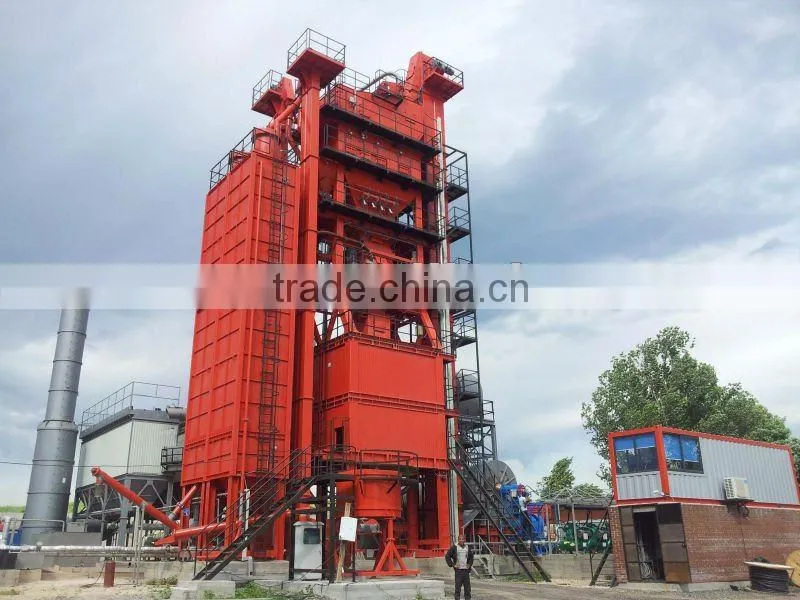

Project in Russia
