Home > Manufacturing & Processing Machinery > Mixing Equipment > Drum Mixer > IN HOUSE Asphalt Plant

IN HOUSE Asphalt Plant

Name: IN HOUSE Asphalt Plant
Brand: Xuetao
SKU: 122965223
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Brand Name:

Xuetao

Model Number:

IH.AMP series

Contact Supplier Request Quote Chat Now

Wuxi Xuetao Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Xuetao

Model Number IH.AMP series

Specifications

Environmental friendly Asphalt plant
Automatic/Manual control
Total height of plant is less than 14m

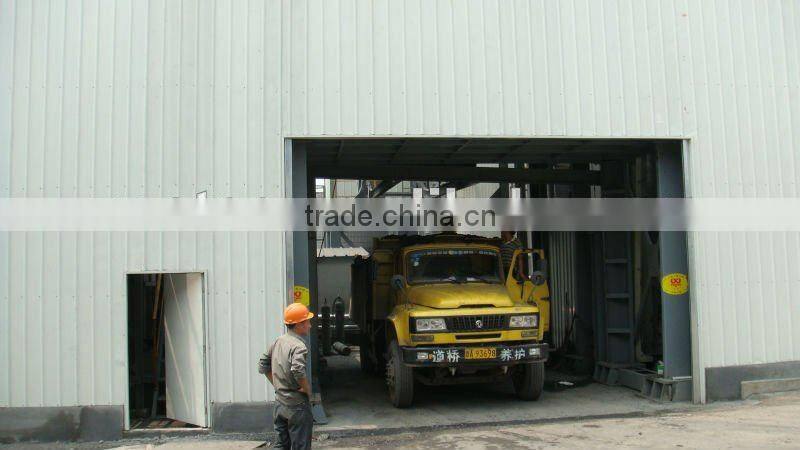

The kind of plant is specially designed for the customer who was requested by strict environment demands. The whole plant is installed in the house. There is no noise and dust pollution for the local resident.

After constantly researching and improving for years, In House Asphalt Mixing Plant has been come true. This kind of plant is totally different from the traditional asphalt plant in design. It almost can separate the dust, noise and smell from the environment, the affection to ambience is less. It is fit for building at the industry areas.

At present, In House Asphalt Mixing Plant has been used successfully in Nanjing, Hangzhou and some other cities. It has passed the special testing by the nation authority institute.

MAIN SPECIFICATION:

Type Contents	IH·AMP50	IH·AMP80	IH·AMP120	IH·AMP160	IH·AMP200	IH·AMP240
Max Rated Output(T/H)	50	80	120	160	200	240
Volume Mixing Container(Kg/Batch)	≤1000	≤1500	≤2000	≤2500	≤3000	≤4000
Total Feed Load (Kw)(Unowned End-Product Bin)	200	350	390	470	550	690
Plant’s height(m)	12.5		13.5
Oil Consumption(Kg/t)	≤6.5
Fuel variety	Diesel fuel ,Heavy Oil, gas
Product Temperature(°C)	130-160
Accumulated Calculation Accuracy	±0.33%
Calculation Accuracy For Asphalt	±0.18%
Calculation Accuracy For Powder Material	±0.22%
Deviation Of Stone And Fuel Ratio	±0.3%
Accuracy Of Discharging Temperature Stability(°C)	±5
Environment Noise Indoor[dB (A)]	≤80
Environment Noise Outdoor [dB (A)]	≤40
Noise Heard By Operators Indoor(with Control Room) [dB (A)]	≤70
Type Of Dust Cleaning	High Pressure Pulse Pocket Type
Concentration Of Discharging Dust indoor (bag filter deduster) [mg/Nm³]	≤80
Concentration of Discharging Dust Outdoor[mg/Nm³]	≤30
