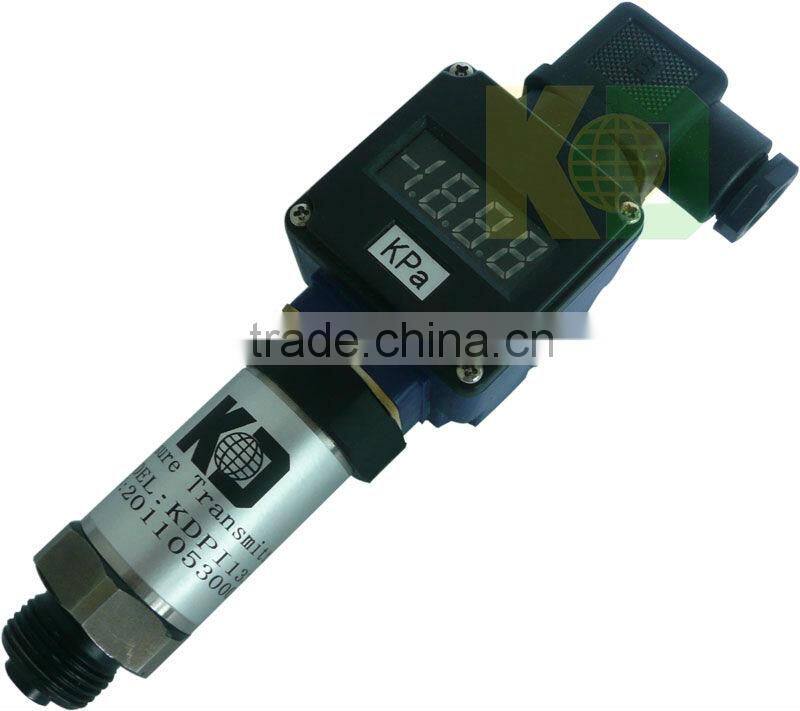

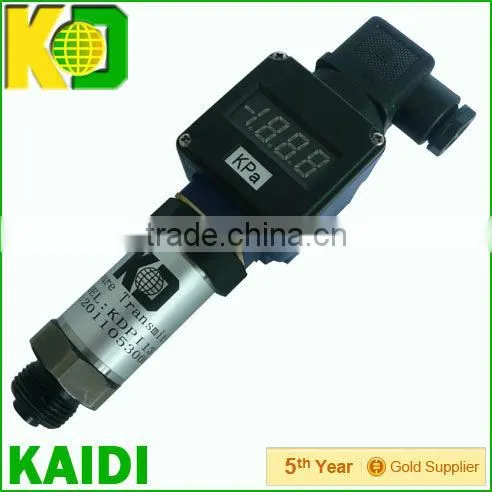

Smart Water Level Sensor Pressure Transmitter

Name: Smart Water Level Sensor Pressure Transmitter
Brand: KAIDI
SKU: 122952383
Availability: InStock

US$ 75 - 99 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KAIDI

Model Number:

KDMC20A

Guangdong Kaidi Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China any port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KAIDI

Model Number KDMC20A

Smart Water Level Sensor Pressure Transmitter MC20A

Specification:

Medium	Gas, liquid, oil (compatible with SS316)
Measuring range	Gauge pressure(G)---Max(0 ~ 60)MPa, Min(0 ~ 0.5)KPa
	Absolute Pressure(A)---Max(0 ~ 40)MPa, min (0 ~ 5)KPa
	Negative pressure(B)--- Max (-0.1 ~ 40)MPa, Min(-0.2 ~ 0.2 )KPa
Accuracy	0.1, 0.25, 0.5
Overload capability	2-3 times of Measuring range
Long-term stability	<0.2%FS/yr, <0.5%FS/yr
Power supply	15 ~ 36 VDC(rated 24VDC)
Output	(4 ~ 20)mA (2/3/4 line), (0 ~ 10/20)mA, (0 ~ 5)V, (1 ~ 5)V, (0 ~ 10)V
Display	LCD or pointer gauge
Calibration	Potentiometer
Working temperature	-40 ~ 80°C Temperature Compensation: -20 ~ 70 °C
Process connection	M20×1.5 (ID Φ5) or customized
Weather proof	IP65
Optional radiator	Up to 300°C
Isolation diaphragm	SUS 316
Sensor Connection material	1Cr18Ni9Ti
Shell material	Aluminum alloy
