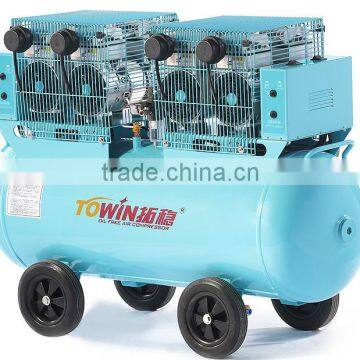

cabinet type movable super mute oilless air compressor (TW5504S)

Brief introduction about working Principle Process
1) Before operation,make sure the voltage is ok , all the swith is shut off, the drainage valve is shut off ,Inlet pipe of air filter is towards down ;
2) Connect the power supply,the machine begin to function,the outside air come to our Main Engine for a compression through our Air Filter( Get rid of impurities in the air and meanwhile reduce the noise);
3)The compressed air come into our air tank throught our high pressure metal braided hose ( at the end of which has a one-way valve,ensuring the compressed air will not return to engine);
4)Accompanied by the consistant compression of the Main Engine, the pressure of the air tank become lager and larger( You could see this from the pressure gauge),when the pressure arrives to 8 bar, the machine will automatically stop working and be in a unloading state ;
5) In this moment , you could adjust the pressure from 1~8 bar using our pressure-regulating valve as your requirements ,then open the outlet air valve,the outlet pressure is what you want.
Warm Notes:
1)When you using the air,the pressure of the air tank will become smaller,when it arrives to about 5 bar,the machine will work again automatically ,then to 8 bar ,it stops,circularly.
2)Safety Valve: When the pressure is more than 8 bar because of machine's trouble,it will open automatically ,discharge the pressure and protect the whole Engine;
3)Overload Protector:When the current /voltage is too high , it will automatically bounce off ,protect the whole engine from being burned . After trouble-shooting , hand-reset to its original place is ok,the machine begine to work again .
Convenient Maintenance:
1) Change the Air filter every 500~1000 hours or as your actural use
2) Drainage the water once a week or or as your actural use . That is ok.
Our Service:
A.Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition,and then count the cost for full sets of equipment .
B.In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot,until user can skillfully operate the equipment.
C.After-sales supports: We provide technical support to customers all the year around,and do not charge any service and consulting fee. Gurantee for 2 years.
Technical Parameters

Our Company

Shanghai Towin Machinery Co.,Ltd. specializes in all kinds of silent oil-free air compressors,screw air compressors for years.We are leading manufacturer in Shanghai,China.With our professional team,we could satisfy yr different air needs.Inquiry by phone will be warmly welcome, for more favourable prices. Also,you are warmly welcome to visit our factory and office in Shanghai. With the imported quality ,domestic price, we create the biggest value for our customers, products sell well in domestic, and export to nearly 200 countries and regions in the world.

Features and Advantages

1. Super silent SKF bearing,runs extremely smoothly,ensures its low noise,small abrasion.
2. 100% copper coil ensures the engine could resist the high temperature and run steadily.
3. low vibration because of its rubber feet which limit its vibration to a lower lever.
4. 100% oil free  since it does not need any lubrication in the operation period.
5. Easy operation the machine will work as soon as it is connected to the electric supply and then drainage automatically.

6. low energy consumption the full automatic design makes sure its low energy consumption.
7.Air tank inside and outside has done anti-rust treatment  this processing ensures the pure outlet air flow .
8. Automatic adjustment High quality pressure switch used to control the pressure of air storage tank automatically,and the pressure controlled valve is used to adjust the outlet pressure you want from 1~8bar.

9.low maintenance Change the air filter every motor about every 500 hours,discharge the water once a week ,which is up to your actural usage ,that is all.

Main Components Performance

Compressor Main Engine:
1 100% copper coil adopted.resisting the high temperature,making sure its stable running ;
2 SKF bearings adopted.low noise,stable running
3 piston ring adopted.small abrasion,making its continous running for almost 20000 hours above.
4 Two-way axial flow fan. to cool the main engine,low temperature and longevity .
Air Tank :
1 pressure vessel inspection certificate available
2 Tank inside and outside have done the anti-rust treatment to make sure the purity of air
3 100% 1.32Mpa hydrotest ,no leakage.
Air Filter:
Imported filter paper adopted ,getting rid of the dust in the air and lower the noise meanwhile.
Pressure Swich:
electronic and electrical adopting the international advanced level of technology ,making sure its superior insulativity under wetting ,loading,high temperature conditions.
Pressure Gauge ;Straight Connector:
stainless steel materials ,high anti-oxidation performance.

If you need very high outlet-air quality and a quiet environment ,this is ok ,just choose us

Quality & Inspection
1.Cooperated with good reputation suppliers.
2.Quality control strictly each step,from spare parts to finished products.
3.Quality components and rigorous engineering ensure longer durability.
